Machine features

1. With auto wire system, is suitable for welding metal with a gap bigger than 0.1mm.
2. Fiber laser welding machine is easy to operate, anyone can use it.
3. Steel, stainless steel, aluminum, copper, brass welding is available.
4. Holder cable length can be 9m long, it is convenient for using.
5. Red light is installed to check the position of the welder beam.
6. No sanding after welding, without heat deformation during welding.
7. Double wobble, better welding.

Technical parameters

Model	LM-2000W
Laser type	Fiber laser, 1080nm
Laser power	1200w / 1500w / 2000w / 3000w
Fiber laser brand	Raycus / RECI / MAX / BWT
Cable length	9 meter outside of machine (14 meter is optional)
Laser head (welding gun)	Qilin
Welding thickness	0.5-8mm
Cooling method	Water cooling
Gas assist	Nitrogen
Visual positioning	Red dot
Power input	1-phase 220V / 3-phase 380V

Materials	1000w	1500w	2000w	3000w
Stainless steel / mild steel	2.5mm	3.0mm	4.0mm	8.0mm
Aluminum	1.5mm	2.0mm	2.5mm	5.0mm
Brass	1.0mm	1.5mm	2.0mm	3.0mm

Video

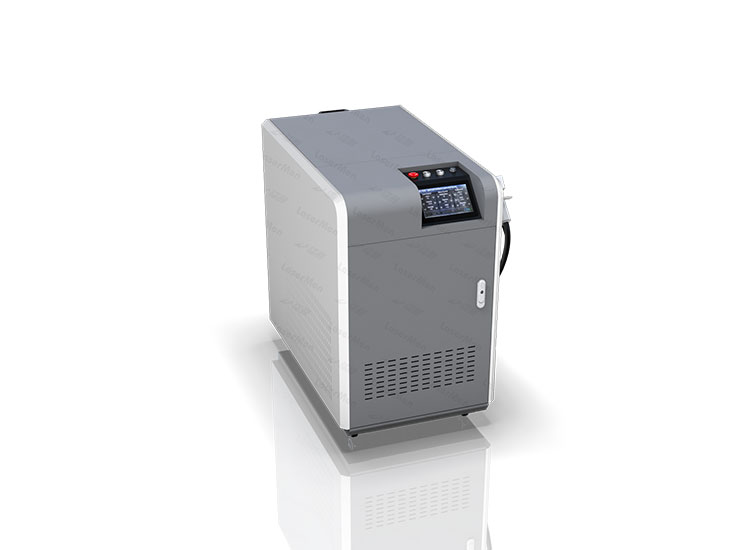

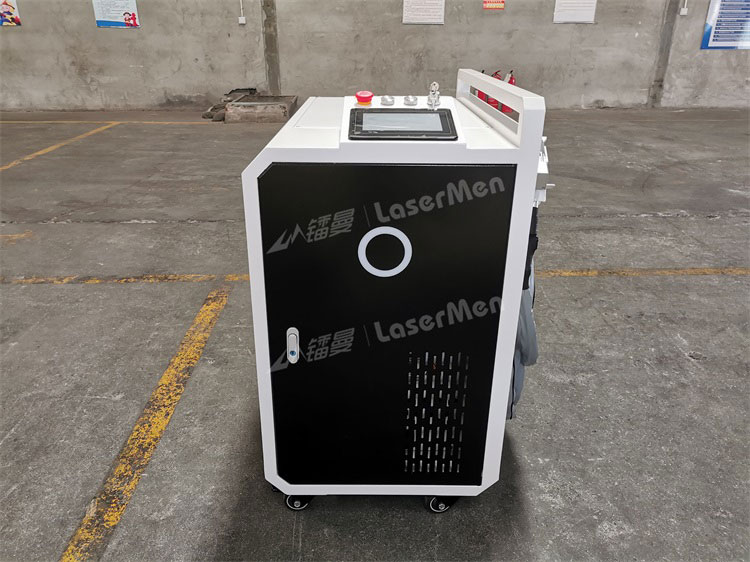

Machine details

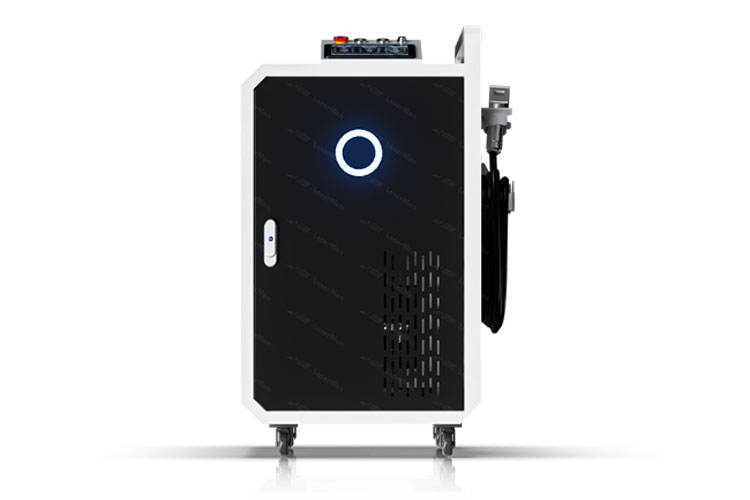

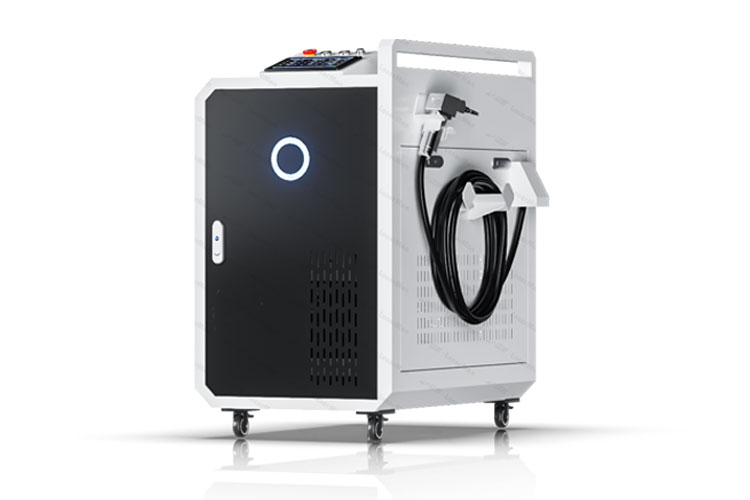

Handheld fiber laser welding machine Product description:

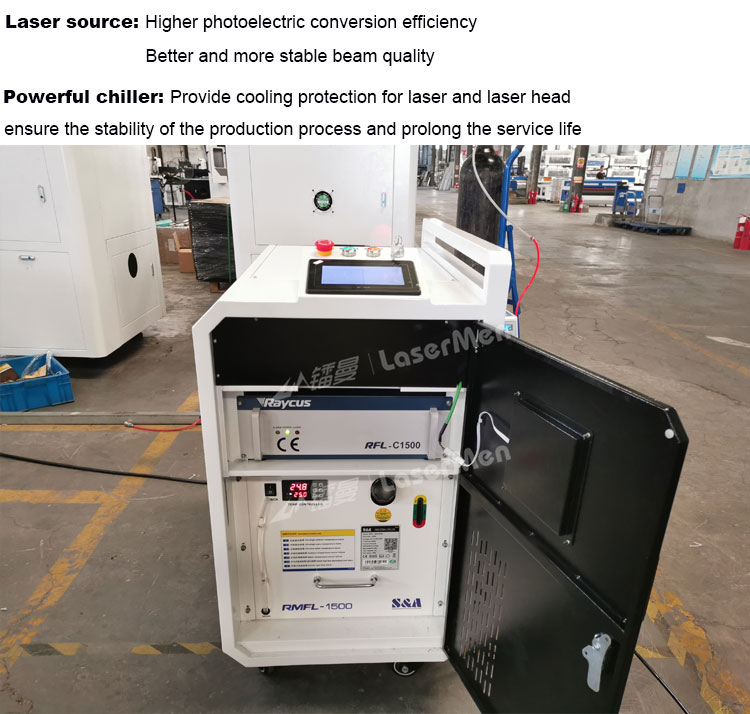

1). This machine adopts 1200w / 1500w / 2000w / 3000w fiber laser, which has high electro-optical conversion efficiency and long laser life;

2). The laser beam quality is very good, the welding speed is fast, is more than 5 times the speed of the traditional welding machine. The weld is fine, the depth is large, the taper is small, the precision is high, fully meet the needs of users in different industries, and the welding is firm, smooth and flat;

3). The whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs;

4). Can be time splitting or energy splitting, suitable for different processing applications, support both continuous welding and spot welding.

5). The welding gun is with wobble head, and the welding gun is hand-held, flexible and convenient, and the welding distance is longer. Mainly for large workpieces, fixed positions such as inner right angle, outer right angle, flat weld welding, small heat affected area during welding, small deformation, large welding depth and firm welding. It is a relatively flexible new welding process for welding large workpieces at a long distance.

6). Double wobble, you can weld both in X and Y directions. Regular type laser welders only weld in Y direction.

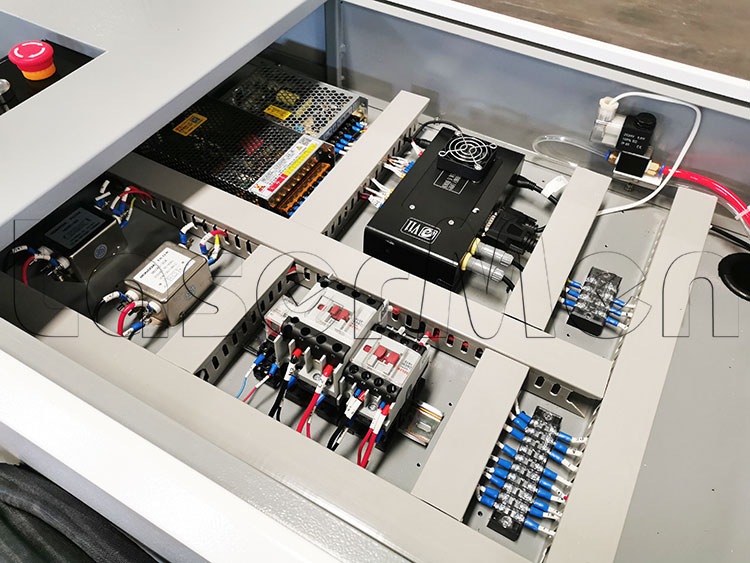

Qilin control system:
Including controller board V11, BWT20 double wobble laser welding gun, operation panel. Portable handheld wobble welding head is the advantage of the machine. Portable welding head, compared to fixed welding head, it offers much convenience for welding.

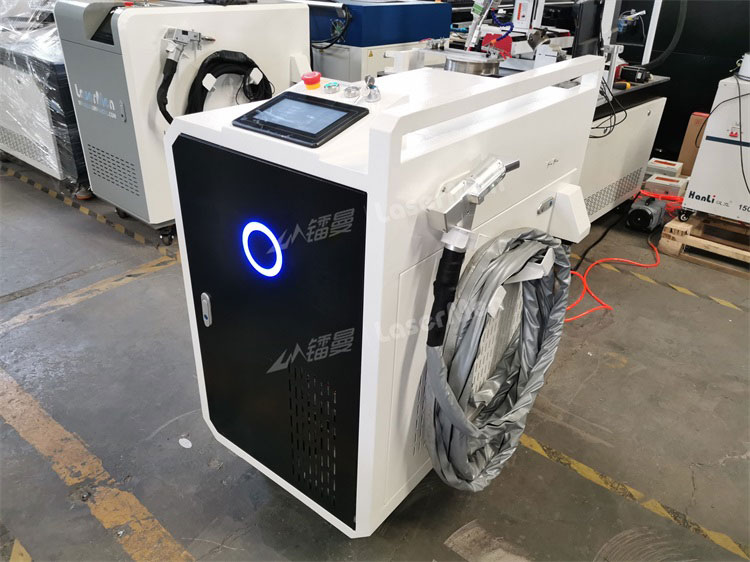

handheld fiber laser welding machine with qilin control system

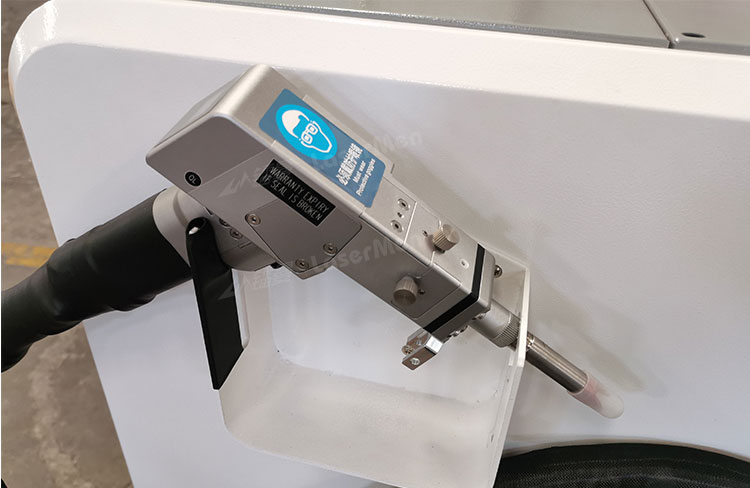

Portable wobble welding gun (double wobble)
Qilin welding head is with double wobble mode which can weld in X and Y both directions. Regular welding head can only weld in Y direction.
qilin laser welding head

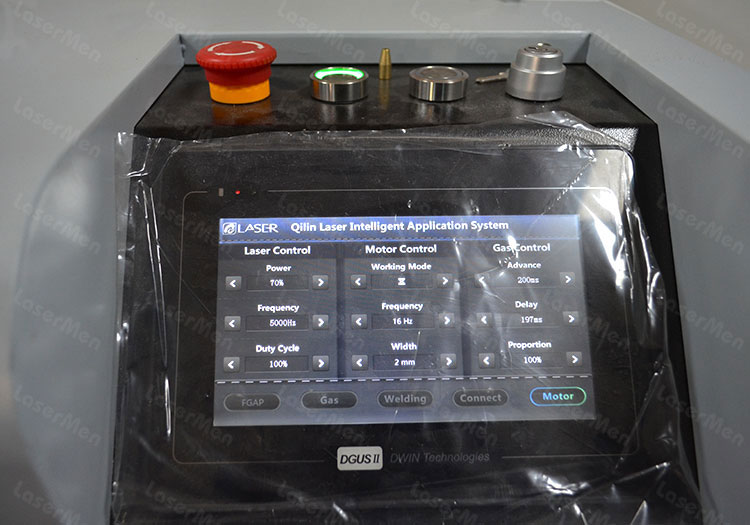

Intelligent touch screen controlling
Laser source control: Laser power output percentage, frequency, duty circle can be set on the screen. Welding head control: laser dot mode, motor frequency, laser beam width can be set on the screen. Gas control: Gas blowing can be set on the screen.
qilin control panel

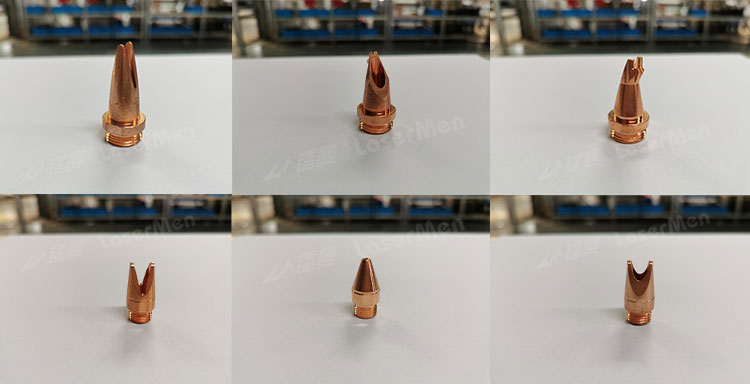

fiber laser welding nozzle

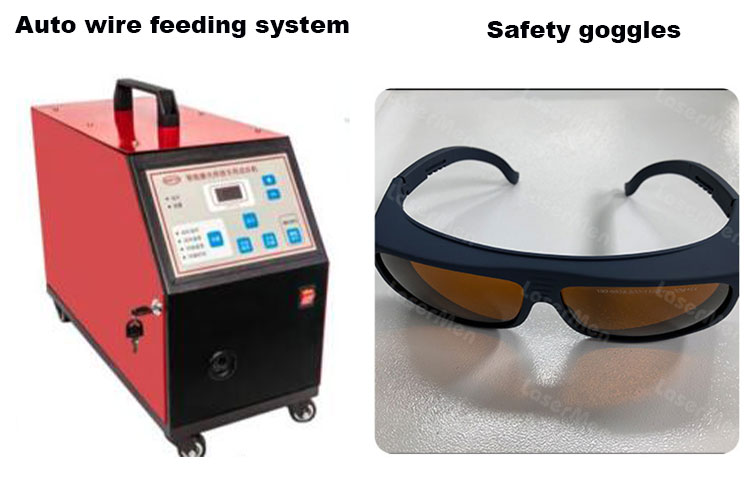

handheld fiber laser welding machine auto wire feed system

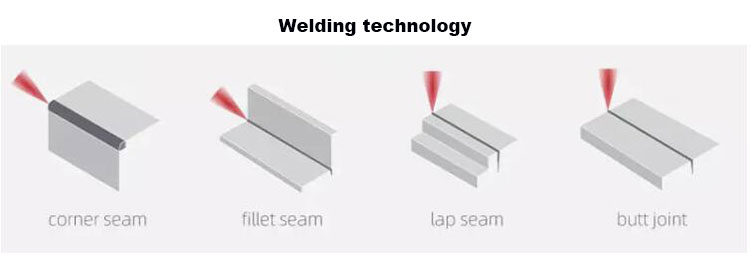

Fiber laser welding technology

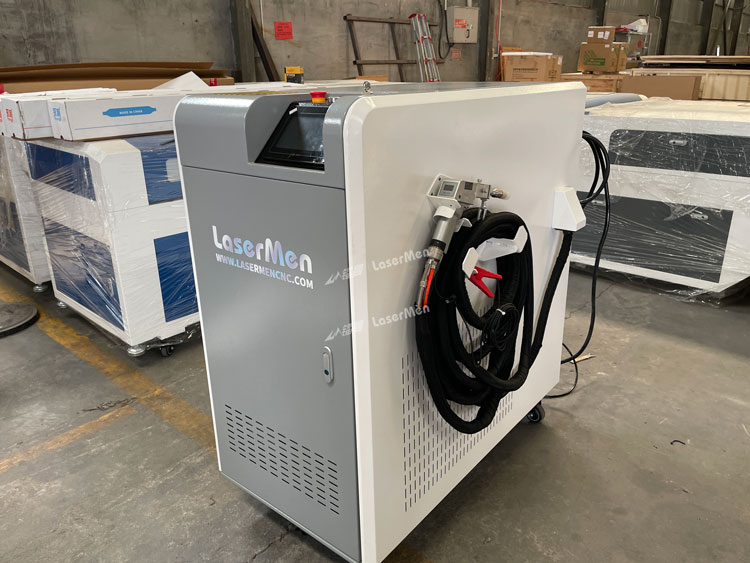

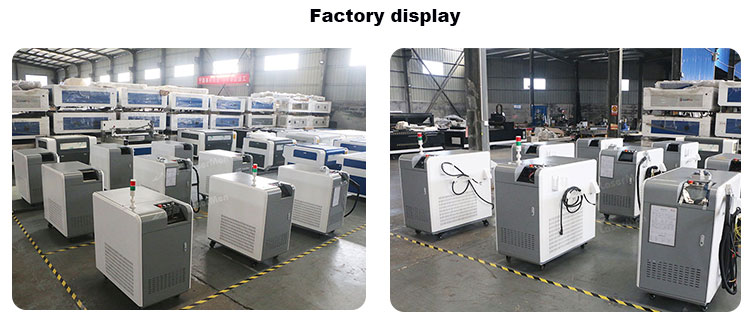

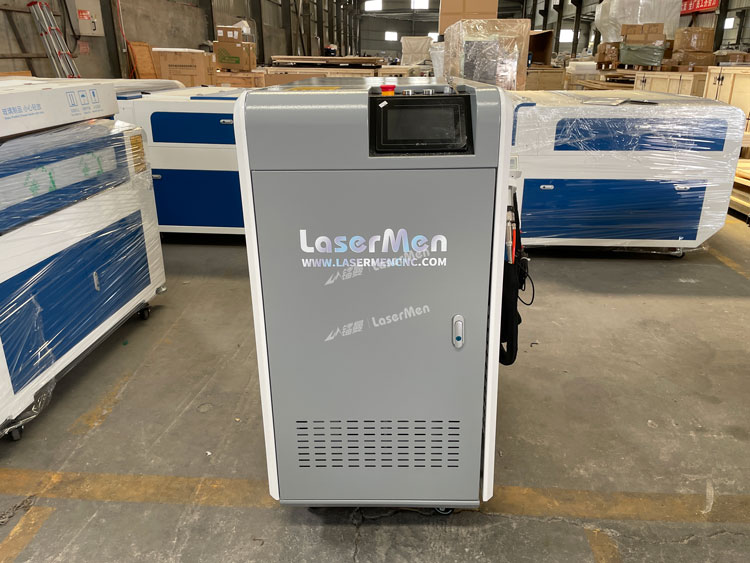

fiber laser welding machine factory display

Optional (double auto wire feeding system)

Machine Application

It can weld metallic, such as stainless steel, carbon steel, aluminum, galvanized sheet, brass, etc. It is widely applied in advertising industry, high pressure / low voltage electrical cabinet production, textile machinery accessories, kitchen appliances, cars, machinery, elevators, electrical accessories, spring coil pieces, metro line parts and other industries.
It is widely used in stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries complex irregular welding process.

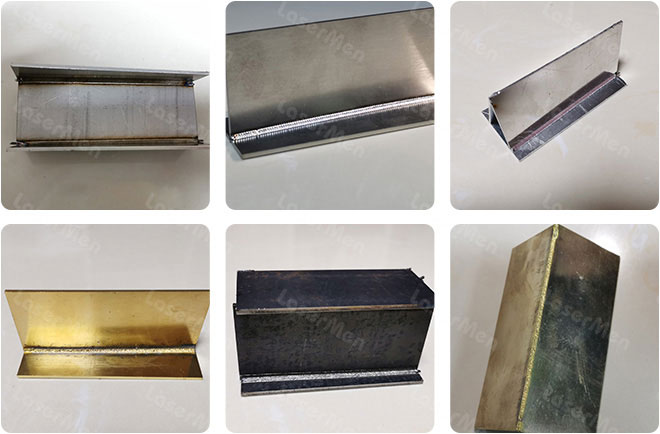

fiber laser welding samples
