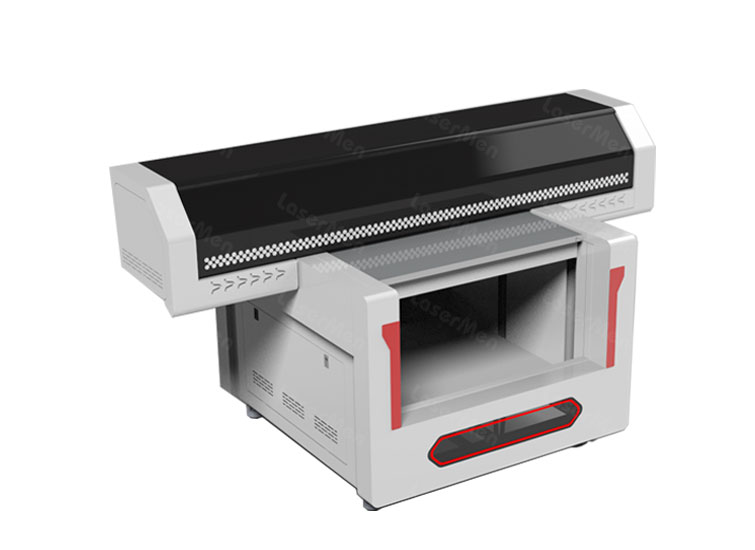

Machine features
1. Machine beam with heavy duty aluminum alloy design, high precision, no deformation
2. Panac original slide rail, high precision, ultra-quiet, high wear resistance.
3. Ink supply with fully automatic positive and negative pressure cleaning system.
4. Intergrated servo motors make machine running smoothly.
5. Honeycomb and vacuum pump working table.
6. Machine can pint on many materials, such as wood, leather, cloth glass, metal, ceramics, stone, plastic, wallpaper, etc.
Technical parameters
| Model | LM-9060UV | ||
|
Laser Type |
Ultraviolet laser, wavelength: 285; |
||
|
Printer Head |
Two sets |
||
|
Head Model |
EPSON TX800/XP600 |
||
|
Printer Mode |
One-way/Both-way |
||
|
Printer Speed |
7-10 ㎡ / h (draft mode） |
5-7㎡ / h (standard mode） |
3-5㎡ / h (precision mode） |
|
Machine Beam |
heavy duty aluminum alloy with high precision, no deformation |
||
|
Guide rail |
Panac original slide rail, high precision, ultra-quiet, high wear resistance |
||
|
Ink suppy method |
Fully automatic positive and negative pressure cleaning system |
||
|
Safety System |
Lightning protection system and collision avoidance system |
||
|
Motors |
Intergrated servo motors |
||
|
Ink display system |
Automatically display the remaining ink level |
||
|
Temperature raising system |
Increase the temperature of the printer head to ensure the smoothness of the ink |
||
|
Control card |
Independent Board |
||
|
Feeding Table |
Honeycomb and vacuum pump worktable |
||
|
RIP Software |
PHOTOPRINT/MTOP |
||
|
Graphic Format Supported |
Tiff,Jpeg,Postscript3, EPS, PDF, etc. |
||
|
Interface |
USB |
||
|
Ink type |
Imported anti-blocking UV ink |
||
|
Color |
5 colors (C M Y K + W) |
||
|
Maximum output size |
900mm × 600mm |
||
|
Printable materials |
glass, aluminum-plastic board, wood, pinch board, suspended ceiling, organic board, ceramic, corrugated board, foam board, metal, plastic, fabric, wallpaper, brick, stone, etc. |
||
|
Up-down table |
0-500mm |
||
|
Working Voltage |
50Hz/60Hz, 220V(±10%)>35A |
||
|
Working condition |
Temperature: 20-35℃, humidity: 40%-60% |
||
|
Machine size |
2150× 1210 × 1150mm |
||
|
Computer system support |
WIN7 64, WIN10 64 |
||
|
Net Weight |
230KGS |
||
|
Gross Weight |
340KGS |
||
|
Machine power |
350W |
||
Video
Machine details
Machine Application
Application
LaserMen UV product processing is not limited by materials, and can be able to print on wood, leather, cloth glass, metal, ceramics, stone, plastic, wallpaper, etc.
Widely used in many industries, such as logo printing, brand customization, luggage, accessories, T-shirts, custom furniture printing, etc. The processing effect is exquisite and the pattern is realistic.
