  • Home > laser machines > Spare parts

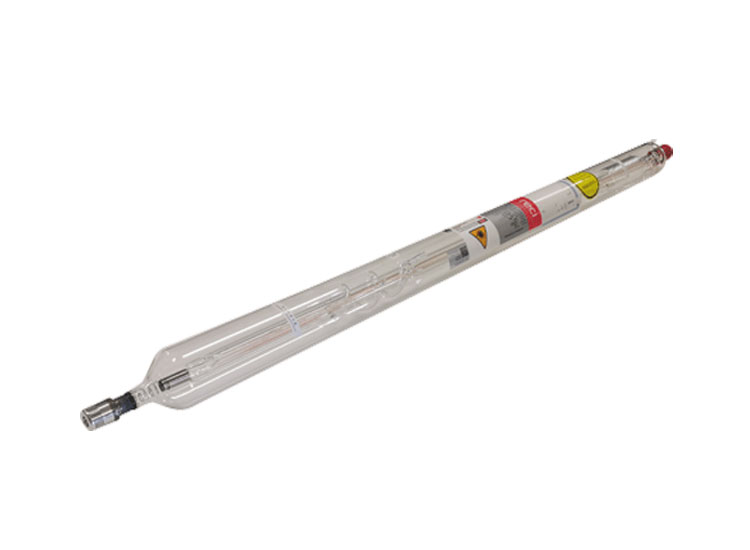

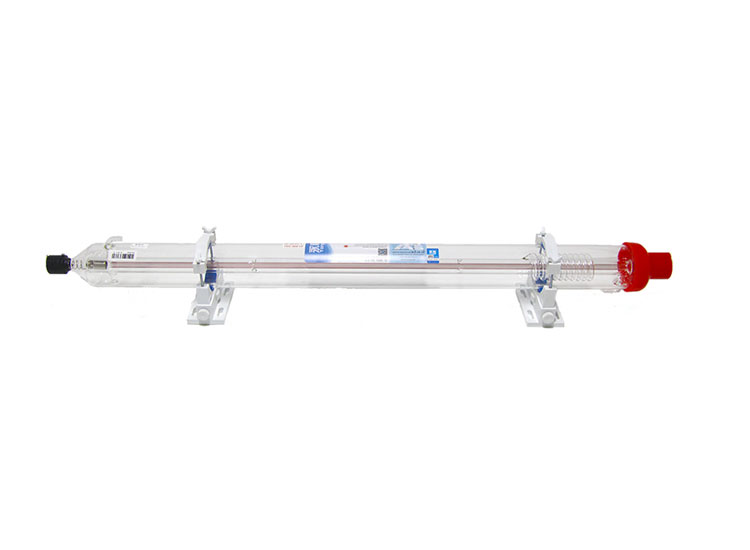

    Co2 Laser Tube

    Product name: Co2 Laser Tube
    Model:
    Laser power: 60w, 80w, 100w, 130w, 150w, 180w, 220w, 300w
    Working range:
    Application:

    Machine features

    China top brand Yongli, Reci co2 laser tube are used for LaserMen co2 laser machines. So the machine cutting and engraving effect and precsion is guaranteed.
    The power of co2 laser tube can be selected from 50-watts to 300-watts. 50w, 60w, 80w,100w can do both engraving and cutting, 150w, 180w, 220w, 300w mainly cuts.

    Technical parameters

    Yongli Technical Parameter
    Model   Len.
    (mm)
    Rated power
     (W)
    Max.
    power
     (W)
    Dia.(mm) Ignition Voltage
       (KV)
    Working Voltage
       (KV)
    Working Current
     (mA)
    Recommend working current
         (mA)
    Catalyst Power stability
      (%)
    Application
    A1S 1100 75 90      Φ80±2 20 15 22 18 yes ±5 Engraving,Cutting
    A2S 1250 90 100 Φ80±2 25 18 26 21 yes ±5 Engraving,Cutting
    A4S 1450 100 130 Φ80±2 28 19 28 22 yes ±5 Engraving,Cutting
    A6S 1650 130 160 Φ80±2 30 21 30 24 yes ±5        Cutting
    A8S 1850 150 180 Φ80±2 34 22 35 28 yes ±5        Cutting
    Reci Technical Parameter
    Model W1 W2 W4 W6 W8
    Rated Output Power(W) 75 90 100 130 150
    Max Output Power(W) 90 100 130 160 180
    Length(mm) 1100 1250 1400 1650 1850
    Outer Diameter(mm) Φ80 Φ90
    Lifespan(h) >15000 >10000
    Warranty(day)                        540          360




    Video

    Machine details

    Yongli laser tube has its own patented technology to modify the beam size and quality effectively that solves the beam distortion, increase the effective power. Inner lens upgraded. All inner lens and mirrors is imported lens that is customized by the U.S.II-VI Infrared. Adopting new catalytic technology to enhance coating firmness and catalytic consumption, stabler on longtime working, lifespan is longer.A6s, A8s are capable for thin metal and non-metal cutting, with better cutting performance.
    Reci upgrades and brings CO2 glass laser tube to 3.0 generation.  New firing technology is used to join metal parts and glass parts together directly. This new technology makes the high stability in W series laser tubes.
    Packing of co2 laser tube
     packing of co2 laser tube

    Machine Application
