    Micro processing fiber laser cutting machine

    Product name: Micro processing fiber laser cutting machine
    Model: LM-6080P
    Laser power: 1500w / 2000w / 3000w
    Working range: 600 x 800mm
    Application: Machine is suitable for ultra precision cutting, such as carbon steel, stainless steel, galvanized sheet, aluminum alloy, titanium alloy, gold, silver, aluminum, brass, copper and tight sheet metal fittings, etc

    Machine features

    1.The precision fiber metal laser cutting machine adopts ultra-high precision linear motor module, compact structure and low power loss.
    2.Without mechanical contact, friction force is smaller. Smooth movement, high position accuracy and re-positioning accuracy, higher speed and acceleration.
    3.Fast reaction speed, high sensitivity, excellent follow-up performance, safe and reliable, long service life, low motion noise.
    4.Ultra-small space, unique processing accuracy.
    5.Used in medical, electronics, precision accessories and other fields
    6.Cutting slit is narrow, cutting incision is smooth and flat, and the speed is fast.

    Technical parameters

     Model LM-6080P
     Laser type Fiber laser, 1080nm
     Laser power 1500w / 2000w / 3000w
    Fiber laser brand Raycus / MAX / RECI / BWT
     Working area 600 x 800 mm
     Min Line width 0.1mm
     Positioning accuracy 0.03mm
     Max. Cutting speed 30m/min
     Transmission type Precision dual ball screw transmission
     Driving system Serve motors
     Cutting thickness Depending on laser power and material
     Assisting gas Compressed air, oxygen and nitrogen
     Cooling mode Industrial circulation water chiller
     Visual positioning Red dot
     Working voltage 220V/380V
     Machine dimensions/Net Weight 1800*1720*1820mm/1500kg
     Packing dimensions/Gross Weight 2500*1900*2090mm/1700kg

    Video

    Machine details

    precision fiber laser cutting machine

    Machine view of precision fiber laser cutting machine

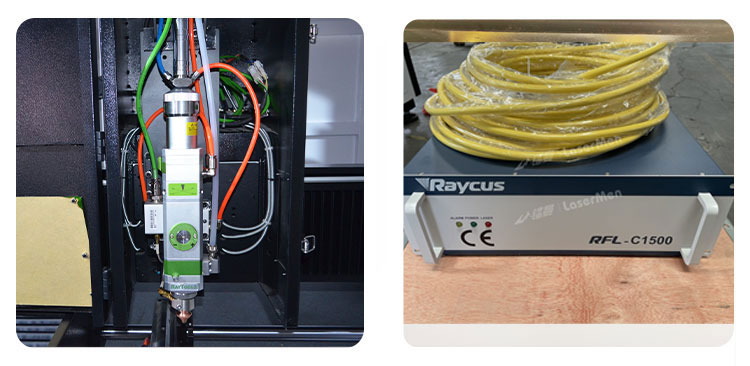

    Laser head:Raytools fiber laser cutting head with auto following system.
    Laser source:
    Top brand  Raycus / RECI / MAX / JPT fiber laser source  with 1000w / 1500w / 2000w / 3000w laser power.


    Adopting marble countertop, high precision, low linear expansion coefficient; no rust, easy to maintenance

    marble countertop

    Ball screw and linear rail transmission, which ensures machine high speed movement, precision and stability as well

    transmission system

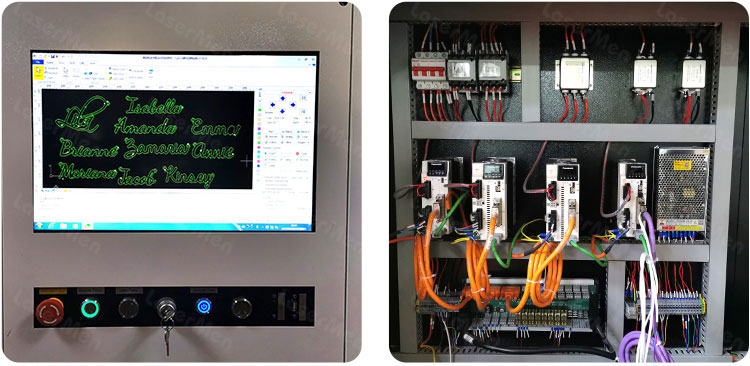

    FSCUT fiber laser cutting control system, include control board , height control and machine software in English. Supporting files: DXF, PLT, AI, LXD, etc. Drawing in the software is also ok.

    FSCUT control system

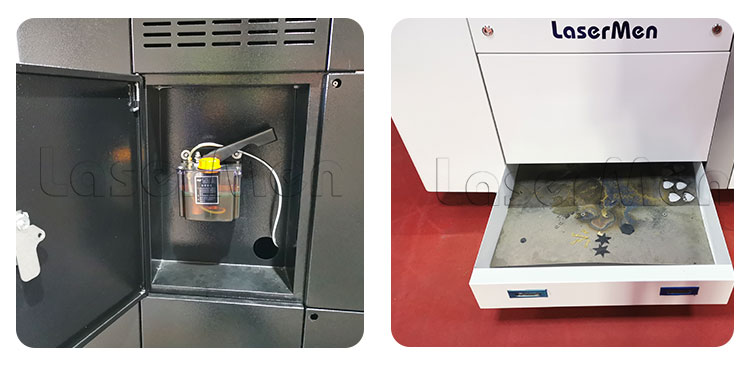

    Automatic Rail Lubrication System: the frequency of use can be set by adjusting the parameters through the computer.
    Drawer: easy to collect materials

    high precision fiber laser cutting machine


    Machine Application

    The equipment meets the parts processing requirements of most industries, working accuracy is stable. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.

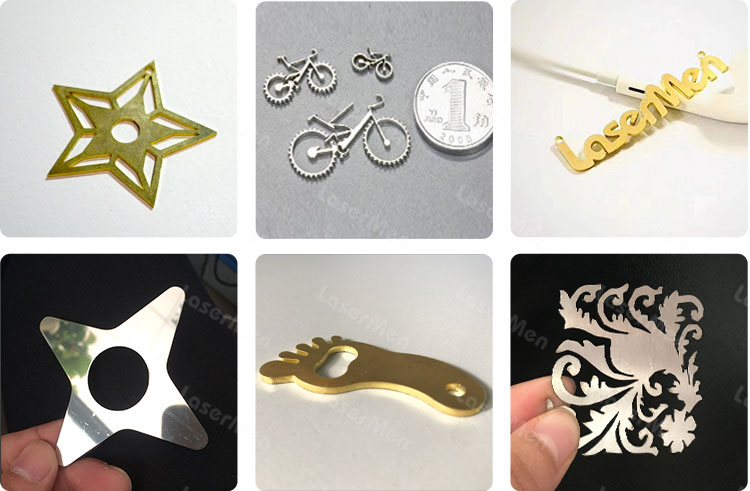

    precision fiber laser cutting machine sample
