  • Home > laser machines > Fiber laser cutting machine

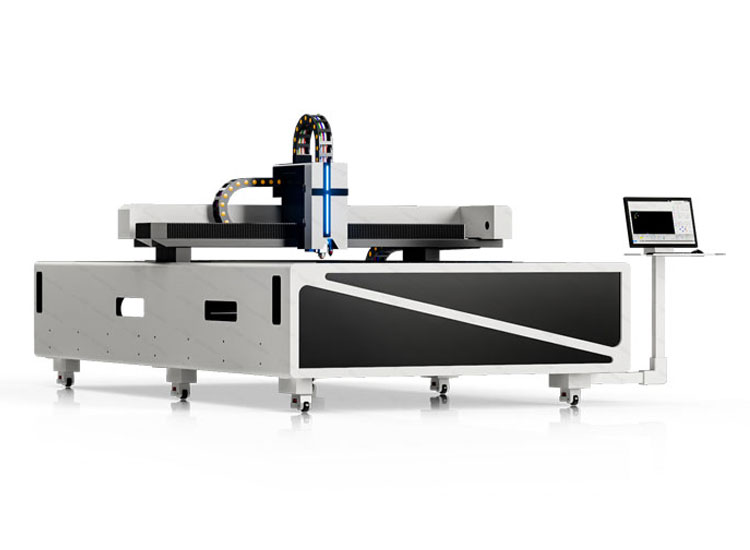

    Open type fiber laser cutting machine for metal sheet

    Product name: Open type fiber laser cutting machine for metal sheet
    Model: LM-9013AF, LM-1325AF, LM-1530AF, LM-1560AF, LM-2040AF
    Laser power: 1500W, 2000W, 3000w
    Working range: 900 x 1300mm / 1300 x 2500mm / 1500 x 3000mm / 1500 x 6000mm / 2000 x 4000mm
    Application: metal plate cutting

    Machine features

    1.Fiber laser cutter as high technology technology, is professional in metal cutting industry
    2.Atmospheric unique independent appearance design
    3.High-speed and stable servo motion control,Friendly intelligent operation interface
    4.The machine owns more comfortable operation, more stable performance, more durable quality, higher cutting efficiency and wider application scope.

    Technical parameters

     Model LM-9013AF / LM-1325AF / LM-1530AF / LM-1560AF / LM-2040AF
     Laser type Fiber laser, 1080nm
     Laser power 1500W, 2000W, 3000W
    Fiber laser brand Raycus / MAX / RECI / BWT
     Working area 900 x 1300mm / 1300 x 2500mm / 1500mm x 3000mm / 1500mm x 6000mm / 2000mm x 4000mm
     Min Line width 0.1mm
     Positioning accuracy 0.01mm
     Max. Cutting speed 60m/min
     Transmission type Precision dual gear rack transmission
     Driving system Serve motors
     Cutting thickness Depending on laser power and material
     Assisting gas Compressed air, oxygen and nitrogen
     Cooling mode Industrial circulation water chiller
     Visual positioning Red dot
     Machine weight Net 2500kgs
     Working voltage 1-phase 220V±10% / 3-phase 380V±10%

    Video

    Machine details

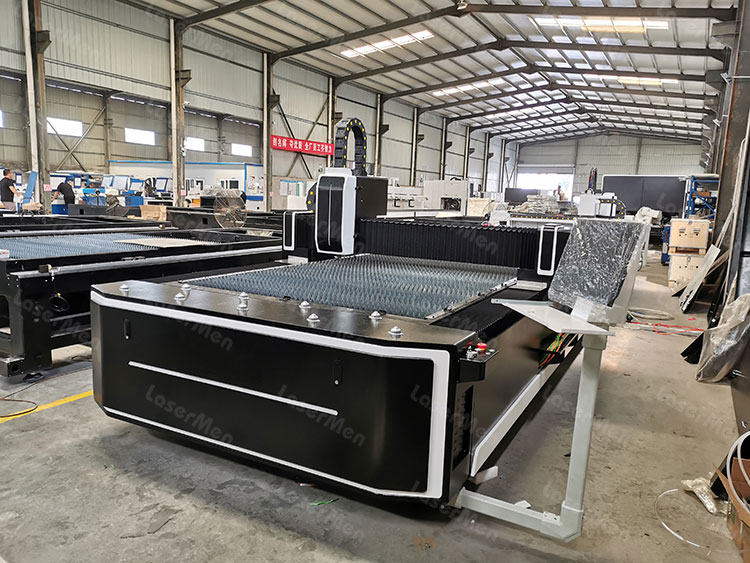

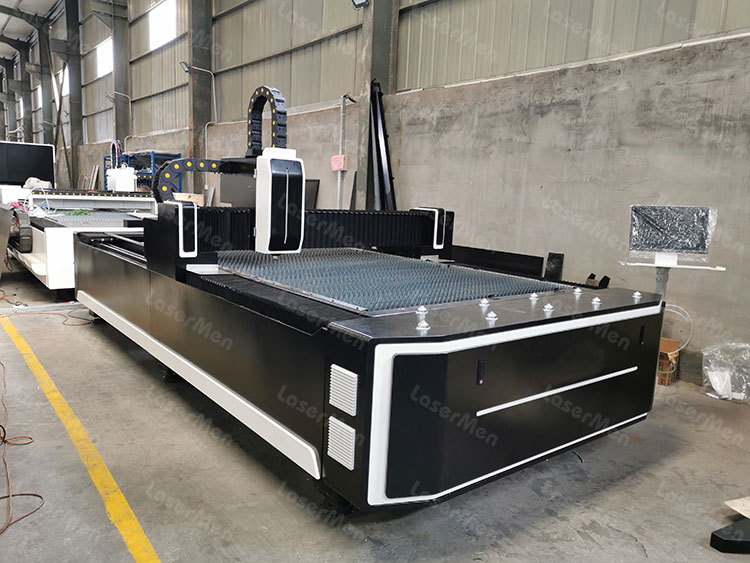

    fiber laser cutting machine in factory

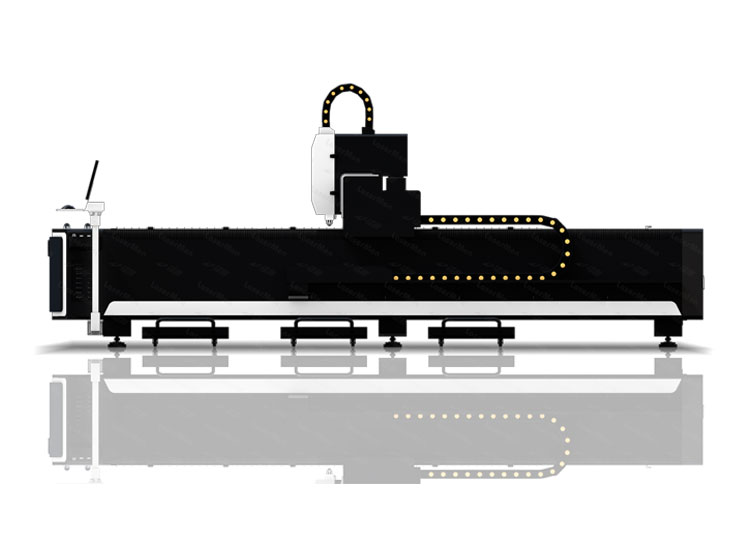

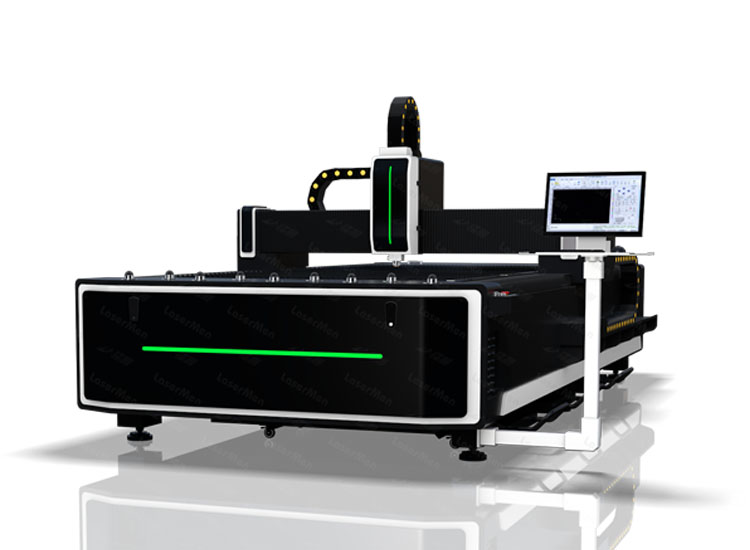

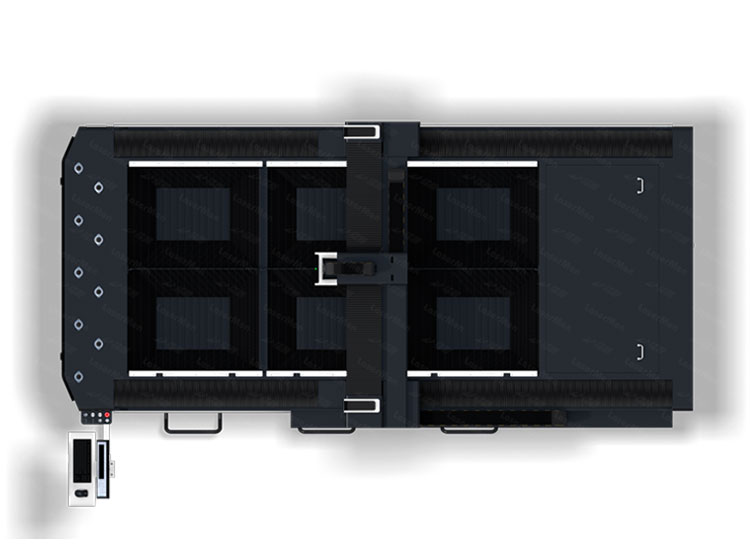

    machine view of fiber laser cutting machine

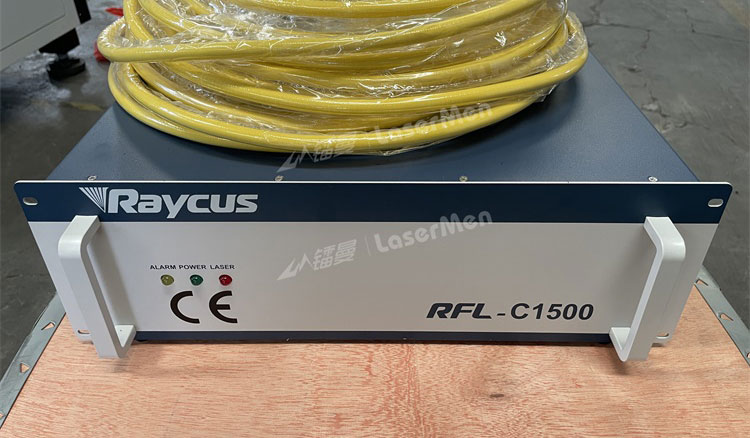

    1.Top brand Raycus / RECI / MAX / JPT fiber laser source 1000W, 1500W, 2000W, 3000W: The power can be increased with the technology improved.

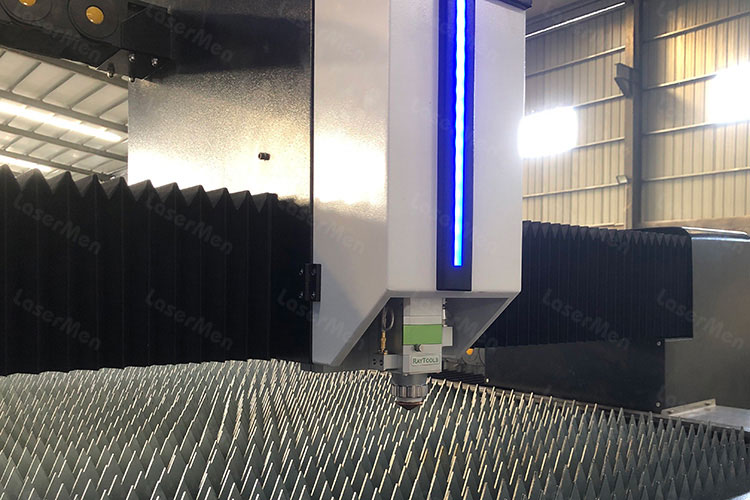

    2. Professional laser cutting head with auto following system.
    high speed fiber laser cutting head

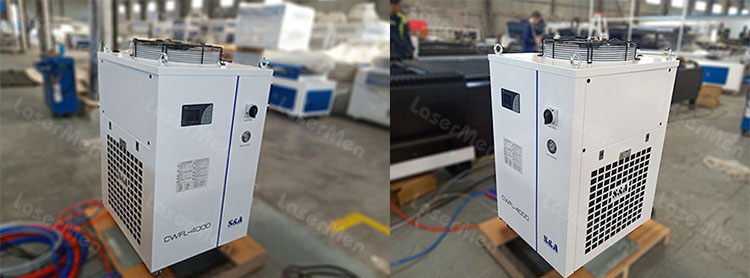

    3. Water chiller, it is able to cool the fiber laser and optic lenses at the same time.
    Industrial water chiller for fiber laser cutting machine

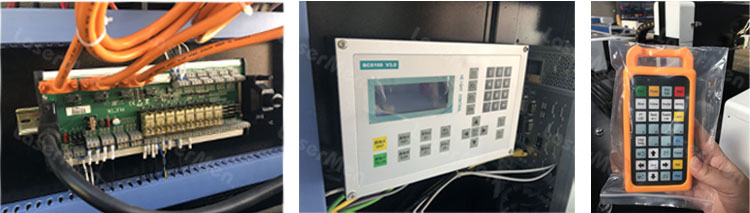

    4. CypCut laser cutting control system, include control board, height control and machine software in English. Supporting files: DXF, PLT, AI, LXD, etc. Drawing in the software is also ok.
    Cypcut laser cutting control system

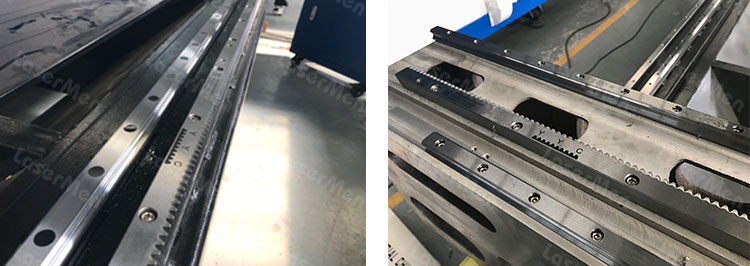

    5. Gear rack and linear rail transmission, which ensures machine high speed movement, precision and stability as well
    gear rack and linear rail transmission

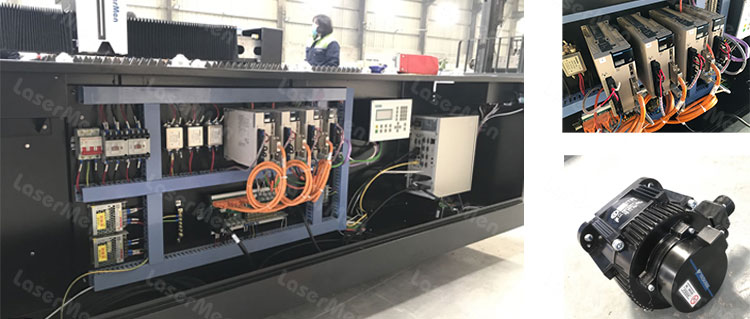

    6. LaserMen fiber laser cutting machine adopts Japanese YASKAWA servo motors and drivers, Japan Shimpo reducer
    YASKAWA servo motors and drivers, shimpo reducer

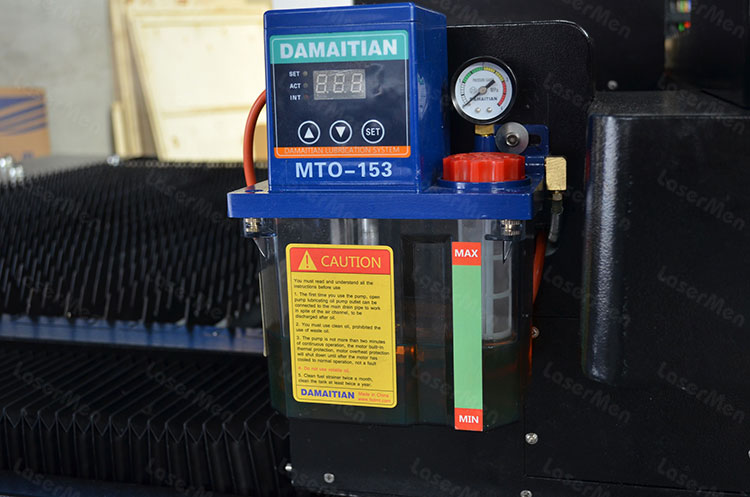

    7. Auto lubrication for gear rack and square linear rail transmission
    Auto lubrication

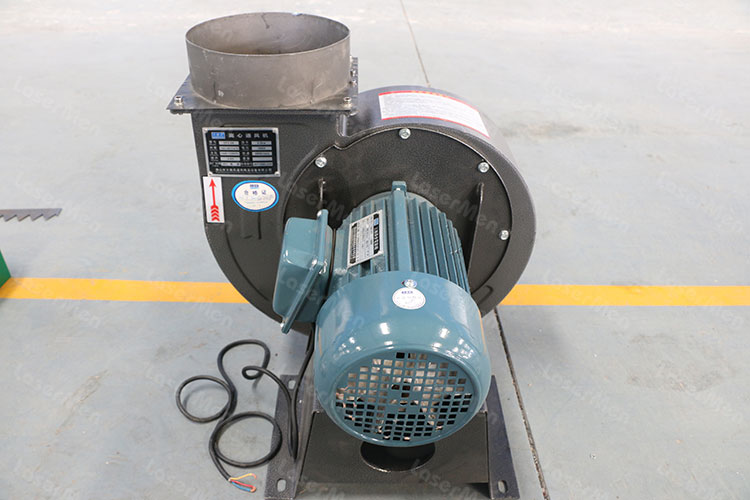

    8. Exhaust system, Exhaust channel is accessible within the whole machine table range. A high power exhaust fan strongly removes the smells and dusts caused by cutting.
    Exhaust system

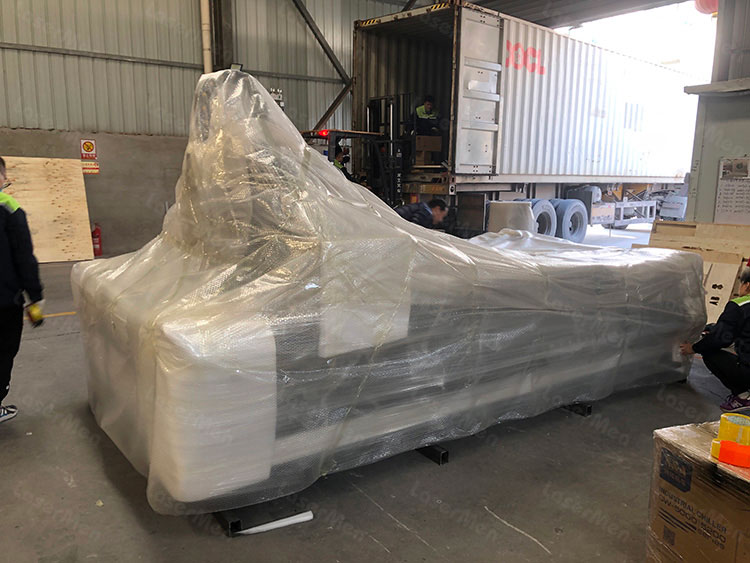

    Packing of fiber laser cutting machine

    Packing

    Optional
    LM-1530AFT metal sheet and tube fiber laser cutting machineLM-1530E metal fiber laser cutting machine with exchange tableLM-9013AF full cover fiber laser cutting machine

    Machine Application

    Professional used to cut sheet metal like carbon/mild steel, stainless steel, aluminum alloy, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate, etc.

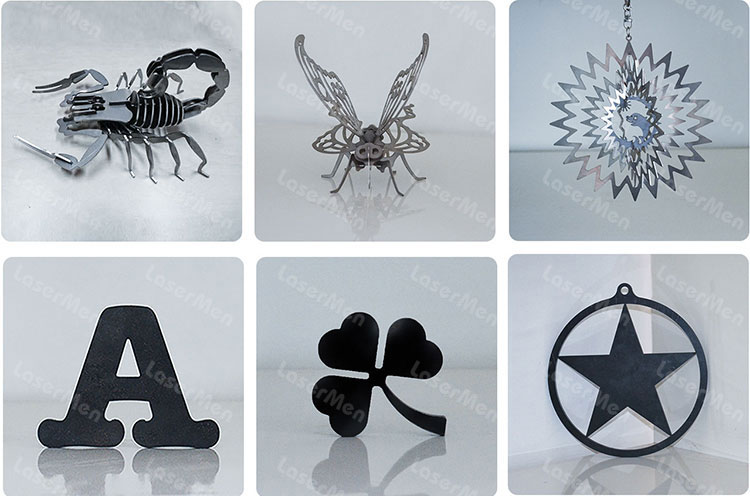

    fiber laser cutting machine sample
