Machine features
1). Gantry structure is applied. One-piece casting is adopted on machine body and beam to ensure high rigidity, stability and antiknock characteristic of the equipment.2). The reducer, gear rack and precise linear guide-way are used for transmission which are characterized of high precision
3). Servo motor is used for driving which is characterized of rapid response, high precision and stable performance.
4). The control system, integrated with the functions of control, graphics, layout and drawing, is intuitive and easy to learn.
5). The machine is equipped with upper and lower exchanging work table . The mechanical design is simplified which has significantly reduced the failure rate, improve work efficiency.
Technical parameters
| Model | LM-1530E / LM-1560E |
| Laser type | Fiber laser, 1080nm |
| Laser power | 1500W, 2000W, 3000W, 4000W, 6000W, 8000w |
| Fiber laser brand | Raycus / MAX / RECI / BWT |
| Working area | Sheet: 1500mm x 3000mm / 1500mm x 6000mm |
| Min Line width | 0.1mm |
| Positioning accuracy | 0.01mm |
| Max. Cutting speed | 60m/min |
| Max acceleration | 1.5G |
| Transmission type | Precision dual gear rack transmission |
| Driving system | Serve motors |
| Cutting thickness | Depending on laser power and material |
| Assisting gas | Compressed air, oxygen and nitrogen |
| Cooling mode | Industrial circulation water chiller |
| Visual positioning | Red dot |
| Working voltage | 3 phase 380V 50HZ/60HZ |
Video

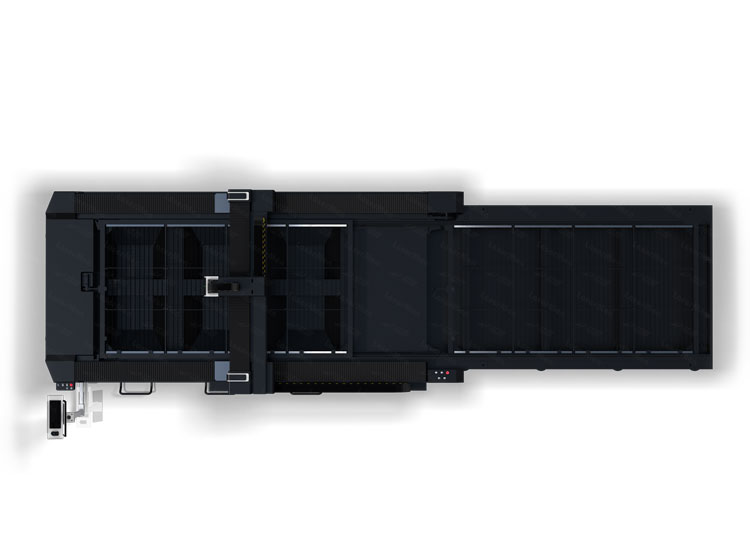

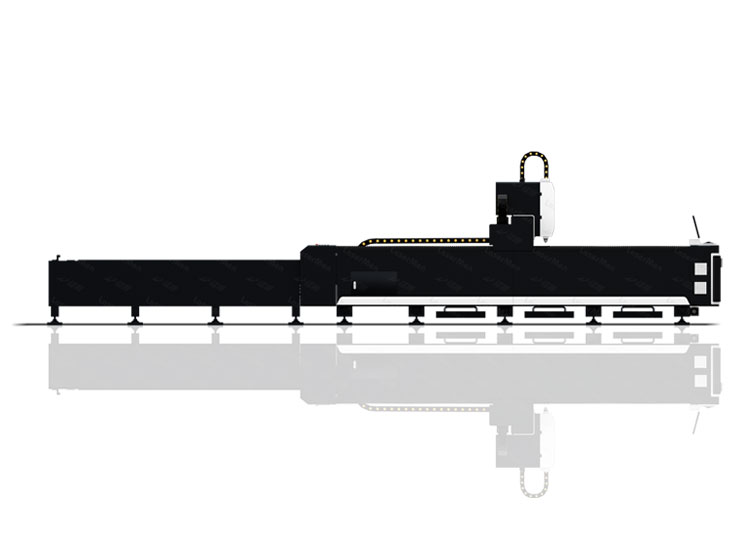

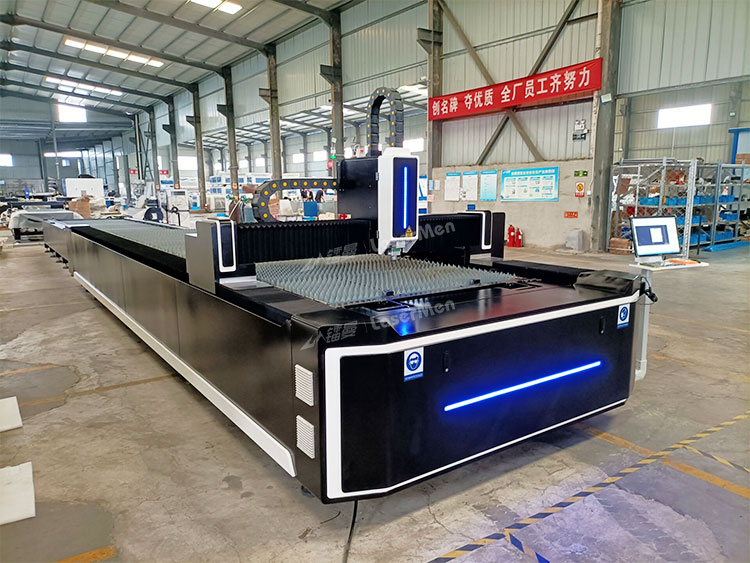

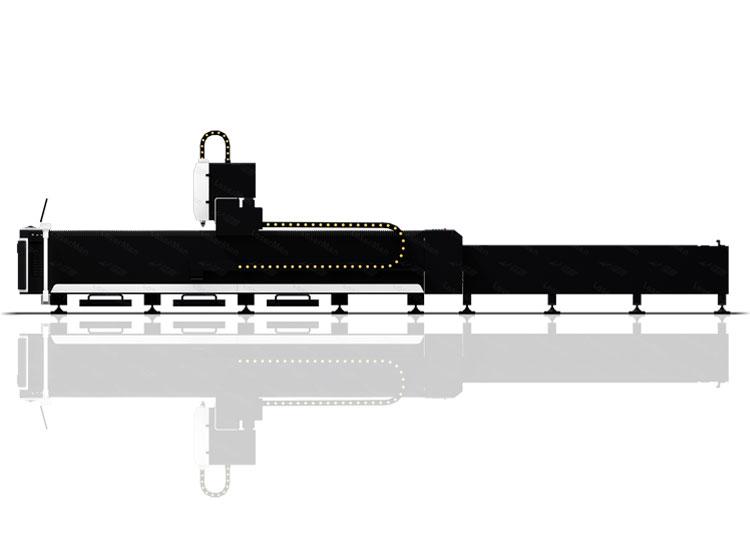

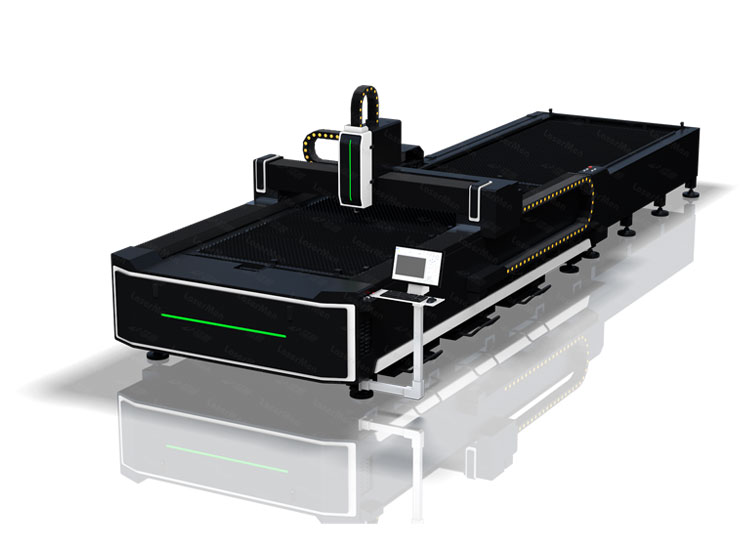

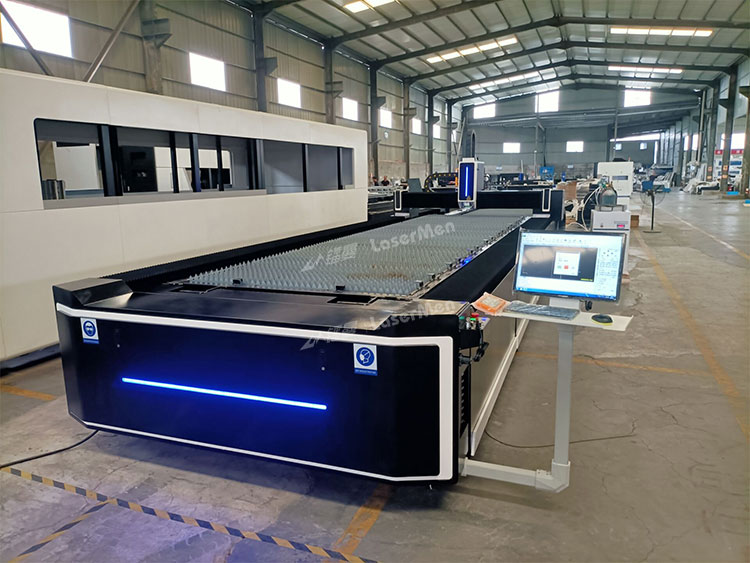

Machine details
Machine Application
Fiber laser cutting machine with exchange table---Application Area
Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries.

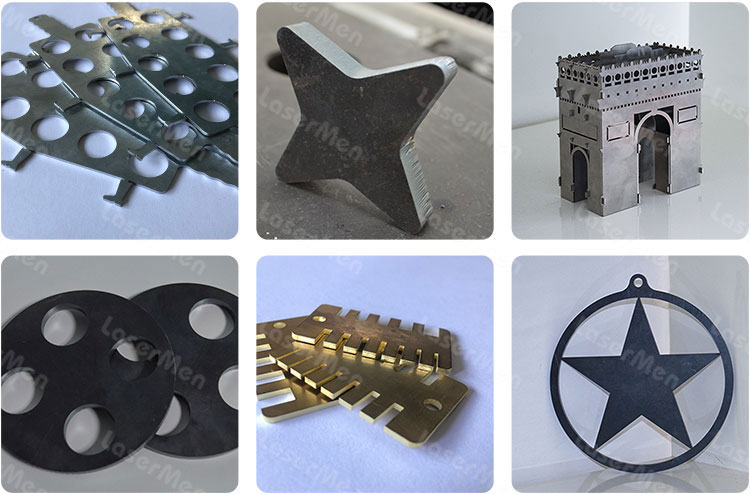

Dual platform fiber laser cutting machine---Applicable Materials
Specialized fast speed cutting of various of metal plates, the main application materials:stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, copper, aluminum, various alloy plate, and other materials.
