Machine features

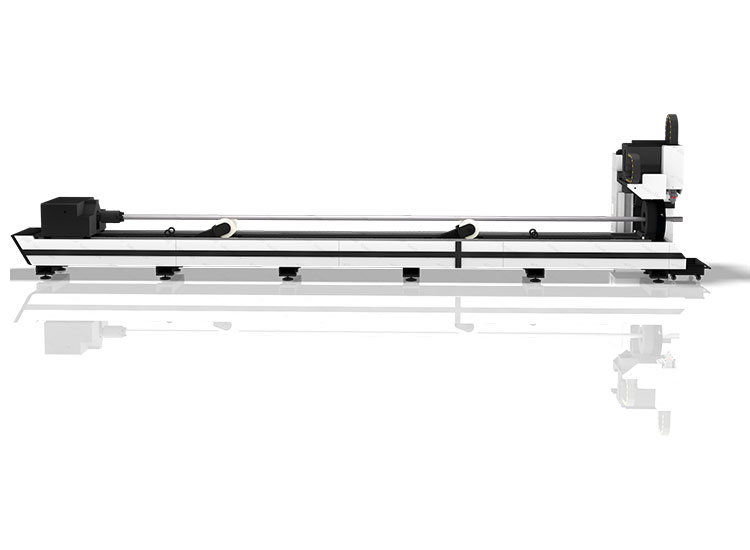

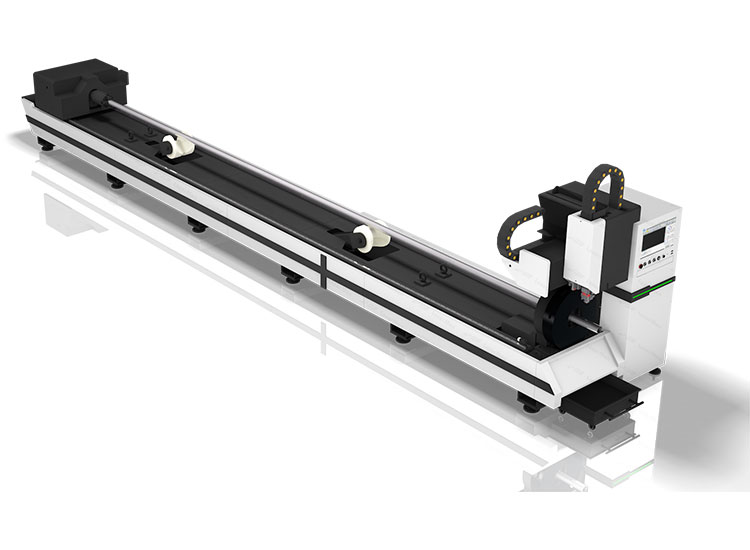

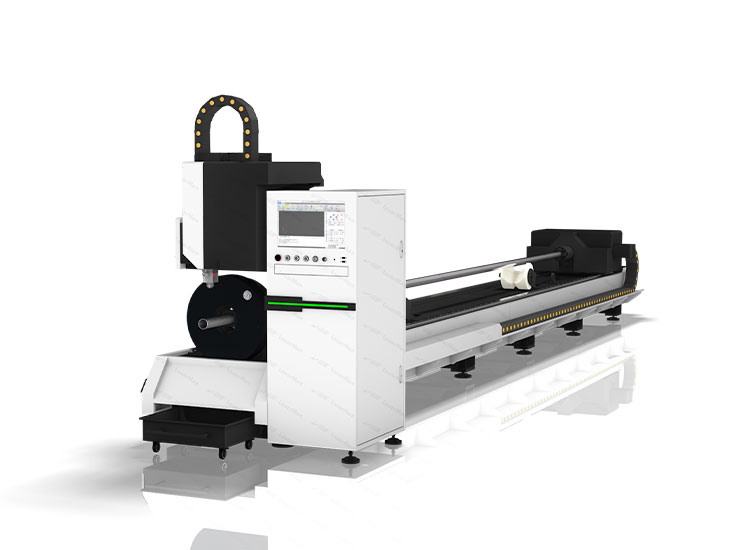

LaserMen fiber laser cutting machine LM-6017T use the world top brand parts,Raytools fiber laser head ,the laser head can automatically focus, and imported servo motors and drives, high precision, high speed, large torque, performance is stable and durable, ensure the high speed operation of the whole machine.Chinese top brand fiber laser source RAYCUS, high power,high precision. Top brand control system : Cypcut control system, with automatic layout optimization. Mainly used for cutting metal pipes such as carbon steel pipes, stainless steel pipes, aluminium alloy pipes (square pipes, round pipes, waist round pipes), etc. It has the characteristics of professional, high speed, high precision, high efficiency and high cost performance, etc. It is the preferred cutting machine for metal pipe processing industry.Features:
1) Smooth transmission, high precision and high productivity.
2) Good rigidity, high precision and can be kept for a long time without deformation.
3) Plate welded structure, good rigidity, light weight, good dynamic performance.
4) High precision, high speed, high torque, high inertia, stable and durable performance.
5) Powerful numerical control system, easy to operate.
6) Imported pipe cutting software, full time cutting, high efficiency cutting, is the fundamental guarantee to effectively save materials and improve cutting efficiency.
7) The cutting head is highly accurate, responsive, stable and reliable.
8) Imported high-precision electric control proportional valve, precise and convenient.
2) Good rigidity, high precision and can be kept for a long time without deformation.
3) Plate welded structure, good rigidity, light weight, good dynamic performance.
4) High precision, high speed, high torque, high inertia, stable and durable performance.
5) Powerful numerical control system, easy to operate.
6) Imported pipe cutting software, full time cutting, high efficiency cutting, is the fundamental guarantee to effectively save materials and improve cutting efficiency.
7) The cutting head is highly accurate, responsive, stable and reliable.
8) Imported high-precision electric control proportional valve, precise and convenient.
Technical parameters
| Model | LM-6017T |
| Laser type | Fiber laser, 1080nm |
| Laser power | 1500W / 2000W / 3000w |
| Laser source | Raycus / MAX / RECI / BWT |
| Laser cutting head | Raytools |
| Effective pipe cutting diameter | 165mm |
| Effective tube length | 3m 6m (round tube / square tube) |
| Min Line width | 0.1mm |
| X, Y Positioning accuracy | ±0.05MM |
| X, Y Re-positioning accuracy | ±0.03MM |
| Supporting Format | Auto cad, Corel draw, PLT, DXF, BMP, AI, DST, DWG, etc |
| Transmission type | Precision gear rack transmission |
| Driving system | Serve motors |
| Assisting gas | Compressed air, oxygen and nitrogen |
| Cooling mode | Industrial circulation water chiller |
Video

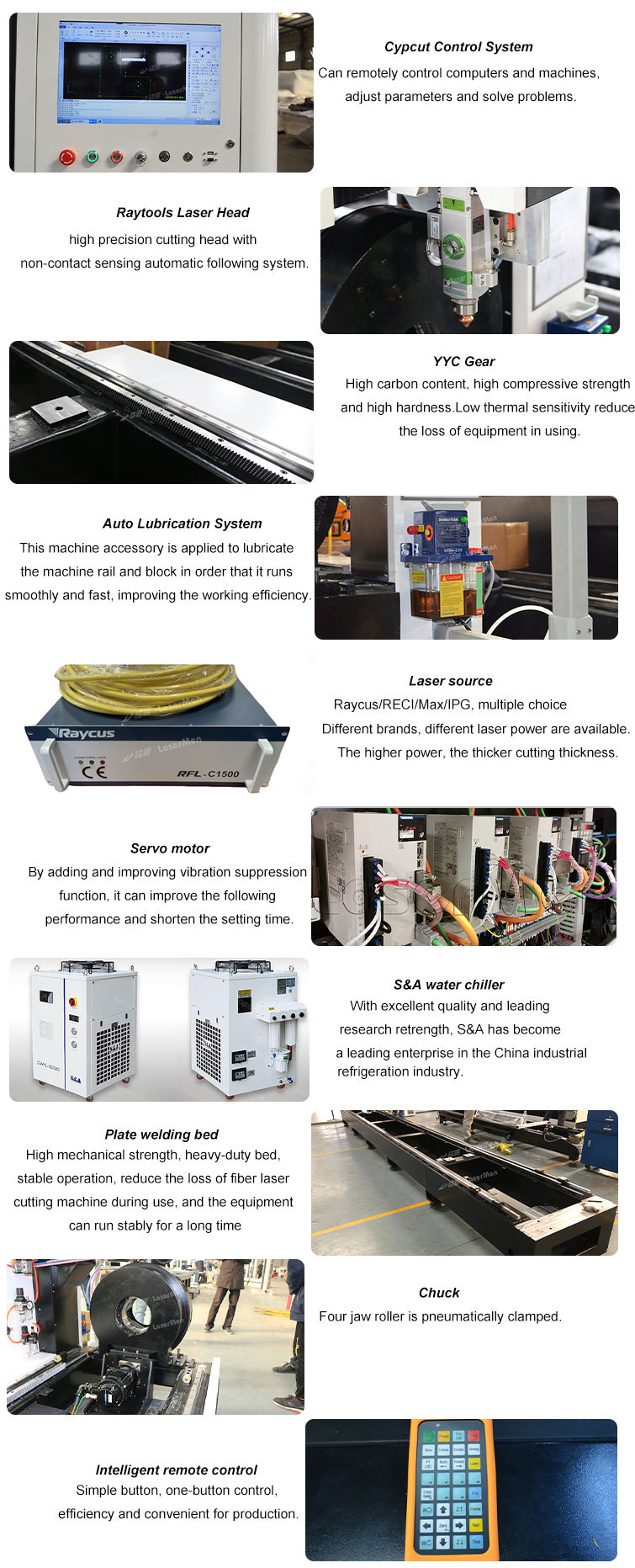

Machine details
Machine Application
Applicable Materials:
LaserMen metal tube laser cutting machine is suitable for metal cutting with stainless steel, carbon steel, iron, galvanized sheet, aluminum, copper, brass, and other metal tube.
Application Industries:
LaserMen metal tube laser cutting machine is widely used in manufacturing billboard, signs, kitchen ware, sheet metal processing, metals components and parts, ironware, chassis, racks & cabinets processing, metal Crafts, elevator panel cutting, hardware, auto parts, electronic parts etc.
