Machine features
Machine Features

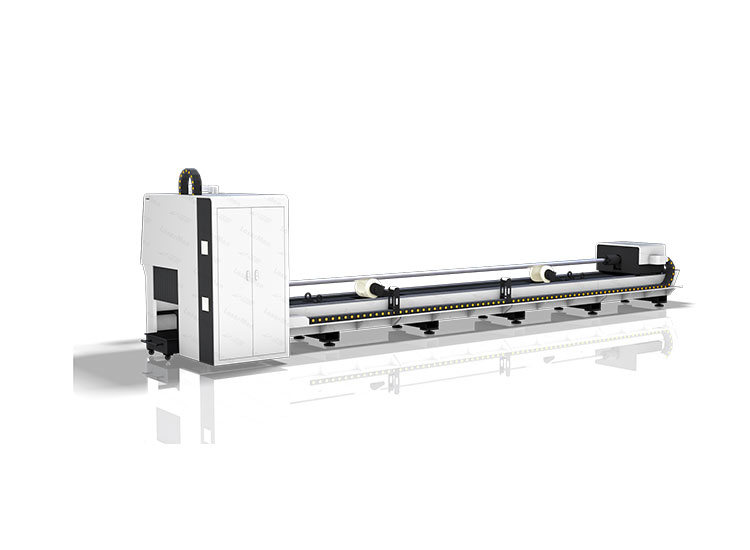

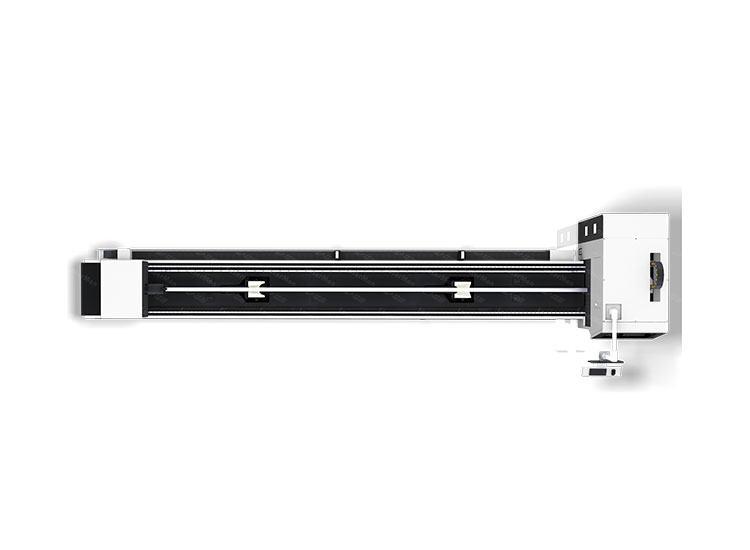

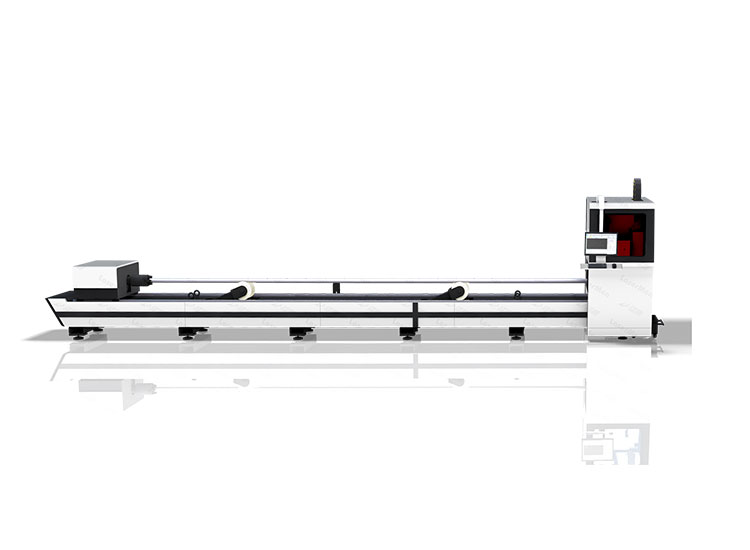

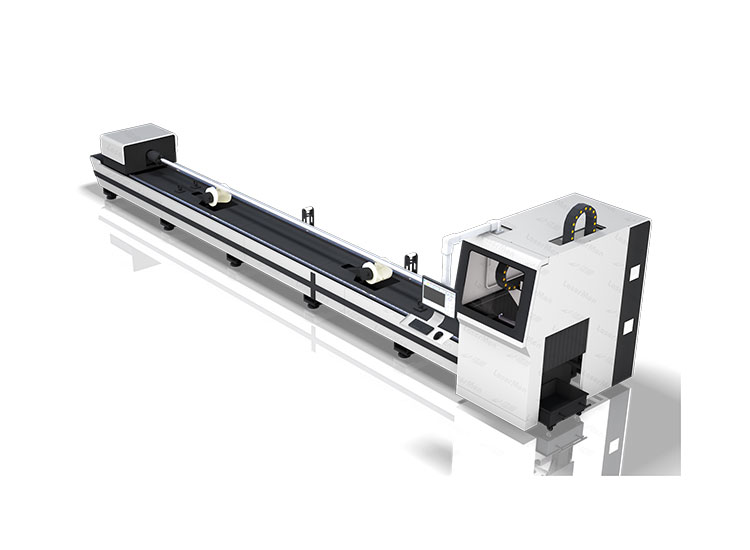

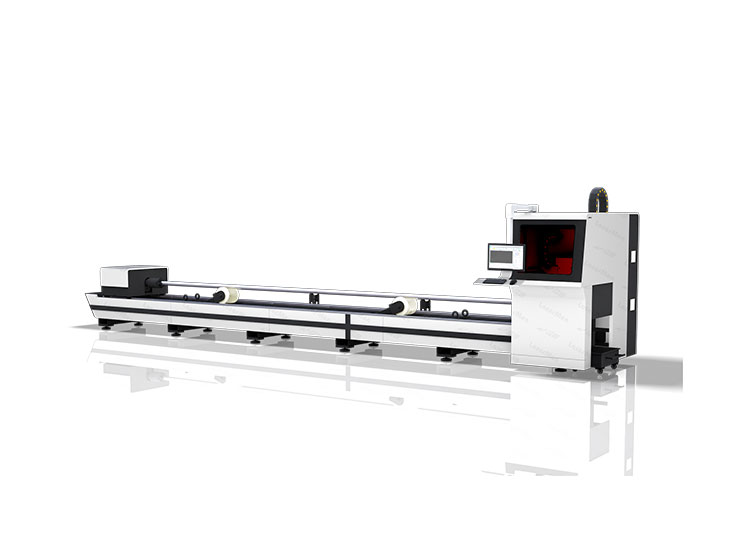

1. Professional metal pipe fiber laser cutting machine adopts intelligent tube support design and professional pneumatic chuck configuration, full-stroke clamping, which ensures the stability and fast speed of metal tube cutting.
2. Able to process long tube with no deformation
3. Heavy duty machine bed design with good rigidity and high precision, no deformation during the life cycle.
4. Easy to load different metal pipes, able to feed and cut heavy pipes.
5. Multi-functional cutting for different materials and tube types. It can do processing for holes cutting, angle cutting, arc cutting, letters and patterns cutting, etc.
6. Machine acceleration can reach 1.5G.
Technical parameters
|
Machine model |
LM-6024T |
|
|
Pipe diameter |
Φ10-Φ220mm/□10-□220mm |
|
|
Pipe length |
6000mm |
|
|
X working area |
330mm |
|
|
Y working area |
6500mm |
|
|
Z working area |
150mm |
|
|
Locating accuracy |
±0.05mm/1000mm |
|
|
Repeatition accuracy |
±0.03mm/1000mm |
|
|
Chuck type |
pneumatic |
|
|
Chuck loading capacity |
320kg |
|
|
Machine total power |
1.5KW machine |
33KW |
|
2.0KW machine |
36KW |
|
|
3.0KW machine |
41KW |
|
|
4.0KW machine |
46KW |
|
|
6.0KW machine |
52KW |
|
|
Input power |
AC 380V 50/60HZ |
|
|
Machine dimensions (L*W*H) |
8625mm*1385mm*2100mm |
|
|
Machine net weight |
2800kg |
|
|
Shipping in container |
1x40'GP |
|
Video
Machine details

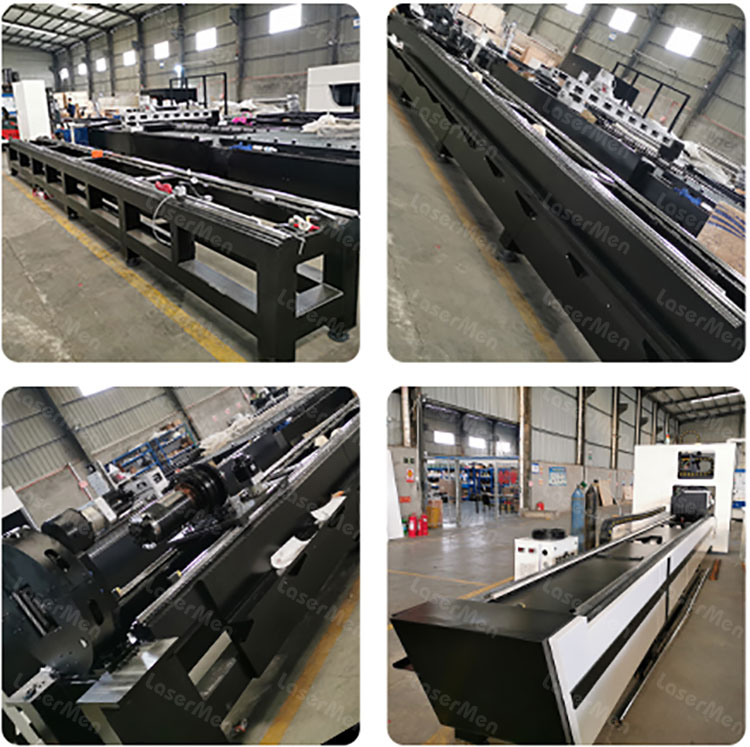

Heavu duty machine bed structure with good rigidity and high precision, no deformation during the life cycle.

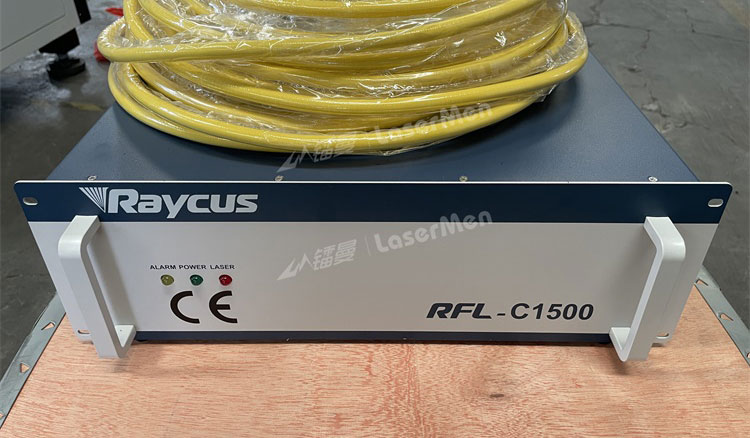

Top brand Raycus fiber laser source with 1000w, 1500w, 2000w, 3000w, 4000w, 6000w.
Driving system: World famous brand YASKAWA servo motors and drivers
It has the advantages of low failure rate, good stability, long lifetime and free-maintenance, etc.

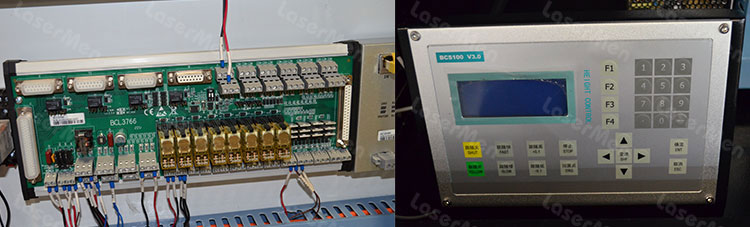

FSCUT laser cutting control system, include control board, height control and machine software in English. Supporting files: DXF, PLT, AI, LXD, etc. Drawing in the software is also ok.

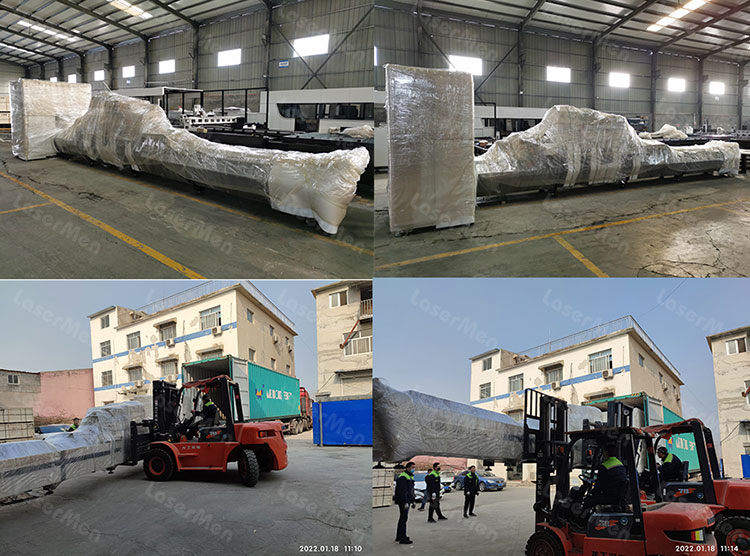

Packing of the machine
Machine Application
LaserMen professional metal pipe fiber laser cutting machine is suitable for metal pipe cutting, such as stainless steel, carbon steel, mild steel , alloy steel, spring steel, iron, aluminum and other metal tube cutting.Applicable types of tubes: Round, Square, Rectangular, Oval, etc.
Applicable types of cutting: Holes cutting, angle cutting, arc cutting, different patterns and letters cutting, etc.
