    Handheld fiber laser welding machine with double auto wire feeding system

    06 / 3 / 2023

    1:Hand held Double wire feeding laser welding machine introduction
    Hand held Double wire feeding laser welding machine features 1000W, 1500W, 2000W or 3000w fiber laser beam for welding joints of butt, edge, corner, tee, and lap. The handheld manual laser welder is used for welding carbon steel, stainless steel, aluminum, brass, copper, iron, silver, gold, and more tube & sheet metals. The portable handheld fiber laser welding machine will take over the traditional argon arc welding, MIG & TIG welding, and electric welding for metal joints.

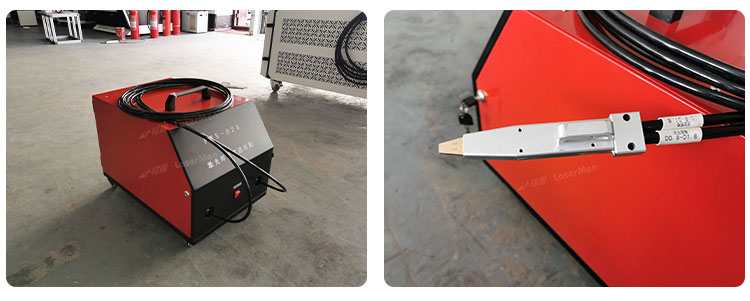

    Double auto wire feeding machine
    Double wire feeding system

    2. Hand held Double wire feeding laser welding machine parameter
     Model LM-2000W
     Laser type Fiber laser, 1080nm
     Laser power 1000W / 1500W / 2000W / 3000w
     Fiber laser brand Raycus / RECI / MAX / BWT
     Cable length 9 meter outside of machine (14 meter is optional)
    Laser head (welding gun) Qilin
    Welding thickness 0.5-8mm

    Cooling method Water cooling
     Gas assist Nitrogen

     Visual positioning Red dot
     Power input 1-phase 220V / 3-phase 380V

    Materials 1000w 1500w 2000w 3000w
    Stainless steel / mild steel 2.5mm 3.0mm 4.0mm 8.0mm
    Aluminum 1.5mm 2.0mm 2.5mm 5.0mm
    Brass 1.0mm 1.5mm 2.0mm 3.0mm


    3:Advantages of hand-held double wire feeding laser welding machine
    1. With auto wire system, is suitable for welding metal with a gap bigger than 0.1mm.
    2. Fiber laser welding machine is easy to operate, anyone can use it.
    3. Steel, stainless steel, aluminum, copper, brass welding is available.
    4. Holder cable length can be 9m long, it is convenient for using.
    5. Red light is installed to check the position of the welder beam.
    6. No sanding after welding, without heat deformation during welding.
    7.
    Double wobble, better welding.
    8. Hand-held welding heads are used for welding large metal advertising characters to overcome the limitation of workbench space.
    9. Welding small metal advertising characters fixed welding head, moving characters to weld, easy and simple to operate.
    10. The operation mode of the hand-held welding torch can realize welding at any angle on any part of the workpiece.
    11. Suitable for all kinds of complex welds and spot welding of various devices.

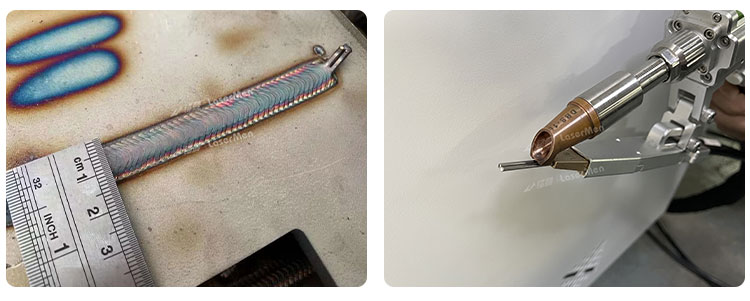

    Double auto wire feeding laser welding gun
    double wire feeding laser welding gun
    4:Application scenario of handheld dual wire feeding laser welding machine
    1. Kitchen and bathroom industry
    At present, we often need to use a variety of cabinets, kitchens and bathrooms in our daily life. Stainless steel cabinets and kitchen utensils are usually made of various plates in the production process, and the plates naturally need to be used in the production process. Cutting is used, and most of the cutting is done with a hand-held laser welding machine.
    2. Household life industry
    In many household products such as metal handles, stainless steel washbasins, and household appliances, products used in daily life, especially some corners and corners also need to be welded with an easy-to-operate handheld laser welding machine. During the manufacturing process of elevators and stairs, ensure that every corner can be welded in place and ensure the aesthetics of stairs and elevators.
    3. Door and window industry
    Large and medium-sized sheet metal, cabinets, chassis, aluminum alloy door and window frames, some doors, windows and guardrails used in the process of modern home decoration, and stainless steel doors, windows and guardrails also need to be welded with welding equipment in the process of building. The well-received handheld laser welding machine plays such a role to ensure that the display effect of doors, windows and guardrails will not be affected after welding.
    4. Electronic industry
    Sealing and breaking welding of solid state relays, welding of connectors and connectors, welding of metal shells and structural components such as mobile phones and MP3s. Motor housing and connectors, welding of fiber optic connector joints, etc.
    5. Mold and machinery manufacturing products
     A typical example of the application of laser welding in the mold industry is the laser welding machine for mold repair. Such as plastic molds, rubber molds, stamping molds, casting molds, etc. , Difficult repairs of forging dies and wire drawing dies.
