Machine features

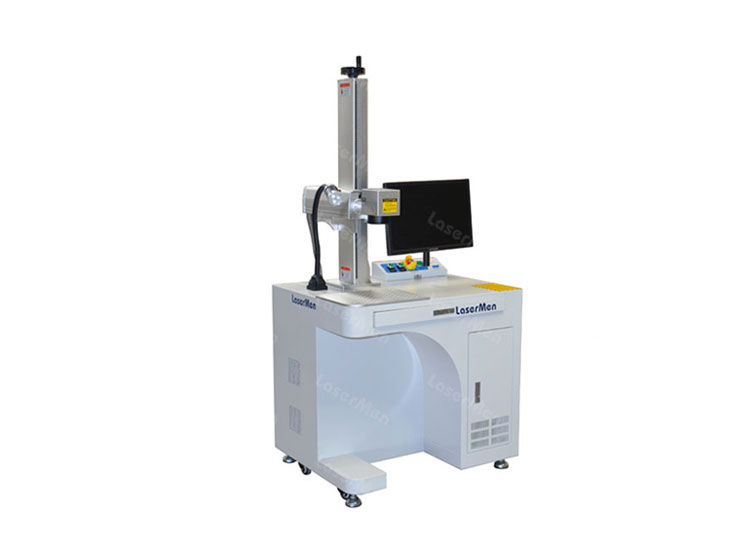

LaserMen desk type fiber laser marking machineMachine Features
1. High quality laser source (Raycus brand, optional: IPG, MAX, JPT, etc.), good laser beam quality, uniform laser power density, and stable laser power output. It has the characteristics of no laser leakage, resistance of high reflection and so on, meeting the application demand of the mainstream market.
2. High speed galvano scanner has the advantages of small size, high scanning speed and good stability. Its performance reaches the advanced level in the world.
3. Easy to use, no consumables, low power consumption; The marking is more precise and clear. It has an irreplaceable advantage in areas where depth, smoothness and fineness are highly demanded. It fully meet the needs of industrial continuous working.
4. Strong marking software with multiple functions, compatible with software AutoCAD, Coreldraw, Photoshop, etc.; supporting formats of PLT、AI、DXF、BMP、JPG, etc.; supporting SHX and TIF font library, and itself possessing multi-font library; Support marking of variable numbers, bar codes, QR codes, etc.
5. Based on different working requirements, we can build the machine with optional functions like rotary, 2D/3D work table, auto focusing, dynamic auto focusing, conveyor table, etc.
Technical parameters
| Laser power | 20W/30W/50W/60W/80W/100W |
| Laser source | MAX/Rayucs/JPT fiber laser source |
| Marking area | 110mm/150mm/175mm/200mm/300mm |
| Laser wavelength | 1064nm |
| Frequency | 20kHz~80kHz |
| Marking speed | 0-7000mm/s |
| Resolution | 0.001mm |
| Repeat positioning accuracy | 0.003mm |
| Minimum line width | 0.01mm |
| Minimum character height | 0.1mm |
| Cooling system | Air cooling |
| Working voltage | 0.5KW/AC220V/50Hz(option) |
| Working environment | 0~35°C humidity≤90% |
| Galvo head/galvanometer | Sino/SKT galvo head |
Video

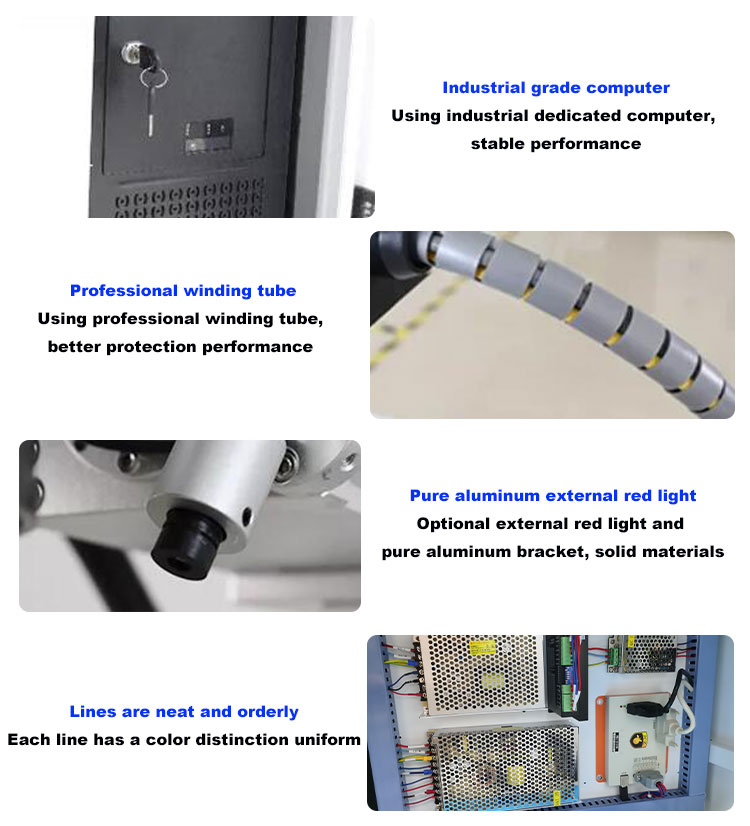

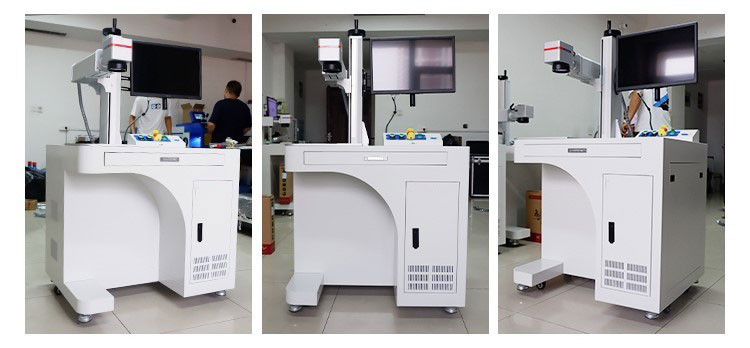

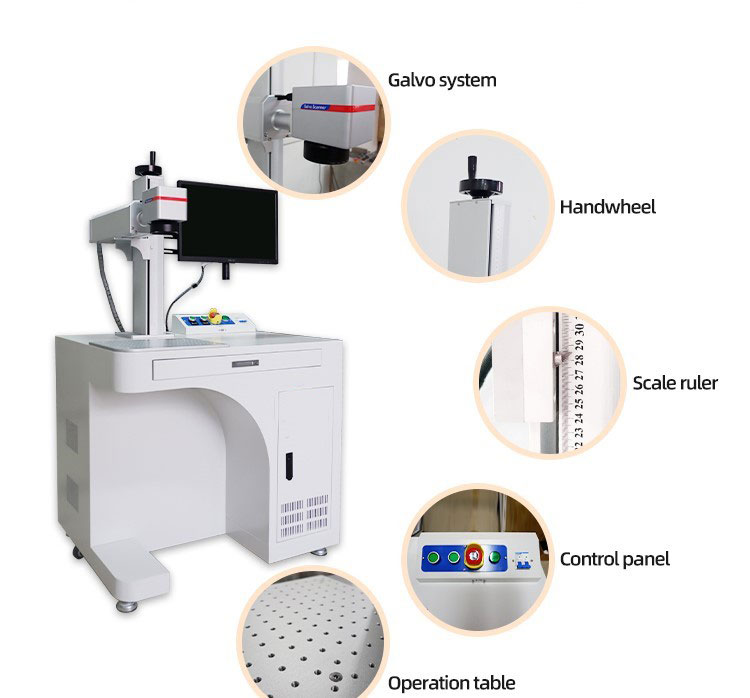

Machine details
Laser marking machine product description:1). Good beam quality
The beam output center of the fiber laser marking machine is 1064nm, the spot pattern is very good, and the focusing spot diameter is less than 20um. The single line is thinner and can realize precision hyperfine machining.
2). Good marking quality
Fiber laser marking machine marking text information clear permanent, will not fade, fall off.
3). Fast marking speed
The electro-optical conversion efficiency of fiber laser marking machine can reach more than 28%, while the electro-optical conversion rate of other types of laser marking machine is only 2%-10%, which is very energy saving. Fiber laser marking machine processing speed is fast, is the traditional marking machine 2-3 times, is the semiconductor laser marking machine 3 times.
4.) energy saving and environmental protection
4.) energy saving and environmental protection
Secondly, non-contact marking, no pollution, no noise, very environmental protection.
Machine Application
Fiber laser marking machine applicable Materials:Plastics, stainless steel, brass, hard alloy, electroplating products, ABS, epoxy resin, painted coated products, ceramics, etc.
Fiber laser marking machine application Industries:
Suitable for integrated circuit chips, computer accessories, industrial bearings, watches and clocks, electronics and communications products, aerospace devices, various automobile parts, home appliances, hardware tools, molds, wire and cable, food packaging, jewelry, cigarettes and tobacco, military and other industries.
