  • Home > laser machines > Laser marking machine

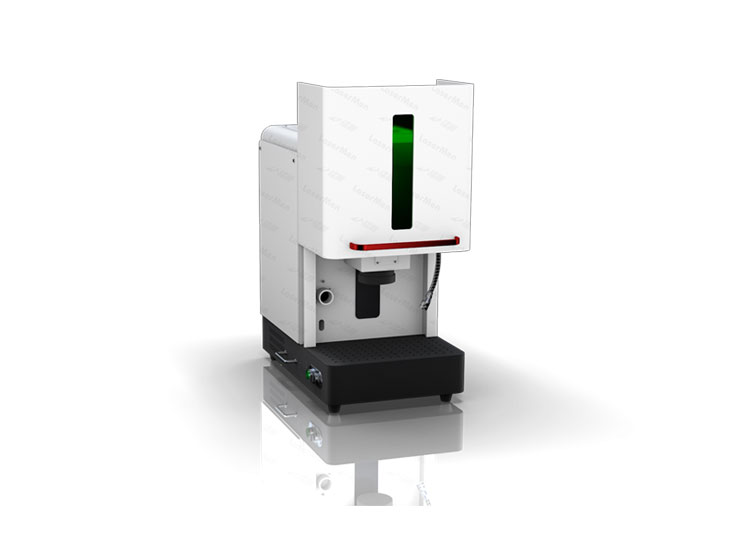

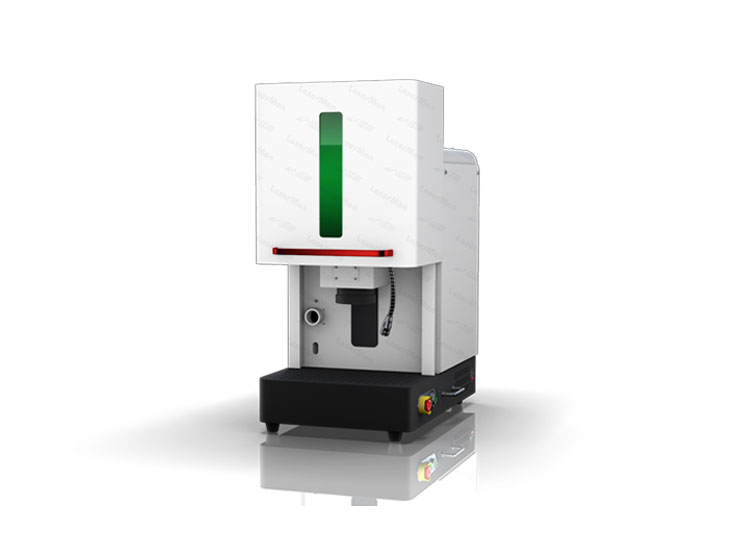

    Enclosed mini smart fiber marking machine

    Product name: Enclosed mini smart fiber marking machine
    Model: LM-20/LM-30/LM-50
    Laser power: 20W, 30W, 50W
    Working range: 110mm*110mm, 200mm*200mm
    Application: Laser Marking

    Machine features

     Enclosed mini smart fiber marking machine
    Machine Features
    1.Enclosed design, safe and effective.
    2.Suitable for delicate marking.
    3.Machine able to achieve high speed marking, and control the depth and shape of the facula.
    4.With red light positioning device, accurately indicates the location of the processing of the laser head.

    Technical parameters

    Model  LM-20 LM-30 LM-50
    Output laser power  20w 30w 50w
    Laser type Fiber laser
    Laser wavelength 1064nm
    Modulation frequency range
    20kHz~80kHz
    Maximum speed 7000mm/sec
    Resolution 0.01mm
    Repositioning precision
    0.03mm
    Marking range
    100x100mm
    Minimum line width
    0.01mm
    Minimum height of characters
    0.2mm
    Laser cooling type Air cooling
    Laser power supply
    Single phase 220V, 50Hz
    Environmental requirements
    0 ~ 35 °C, 90% or humidity

    Portable mini fiber laser marking machine Dimensions:
    Model Package dimensions Gross weight
    LM-20 / LM-30 / LM-50  990*500*770mm=0.4CBM 100KGS

    Video

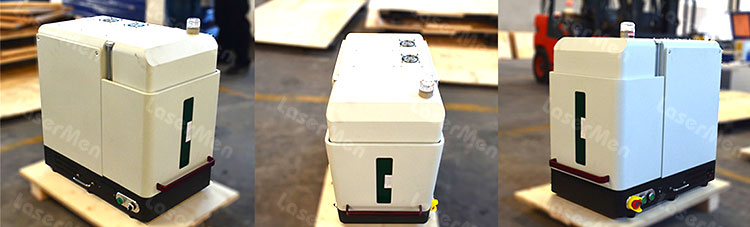

    Machine details

    mini fiber laser marking machine

    Air outlet

    laser marking Air outlet

    Ammeter Electric And Lift Switch

    laser marking Ammeter, electric lift switch

    Controller

    laser marking controller

    Double Red Light Galvanometer

    laser marking Double red light galvanometer

    LED Light

    laser marking LED light

    Left And Right Carrying Handle

    laser marking left and right carrying handle

    Machine Application

    Sealed laser marking machines are widely used in integrated circuit chips, computer accessories, industrial bearings, clocks, electronics and communication products, aerospace devices, various auto parts, home appliances, hardware tools, molds, wires and cables, food packaging, jewelry, Marking of graphics and text in many fields such as tobacco and military affairs, as well as mass production line operations.
    fiber laser marking machine samples
    fiber laser marking machine samples
    fiber laser marking machine samples
    fiber laser marking machine samples
