  • Home > laser machines > Laser marking machine

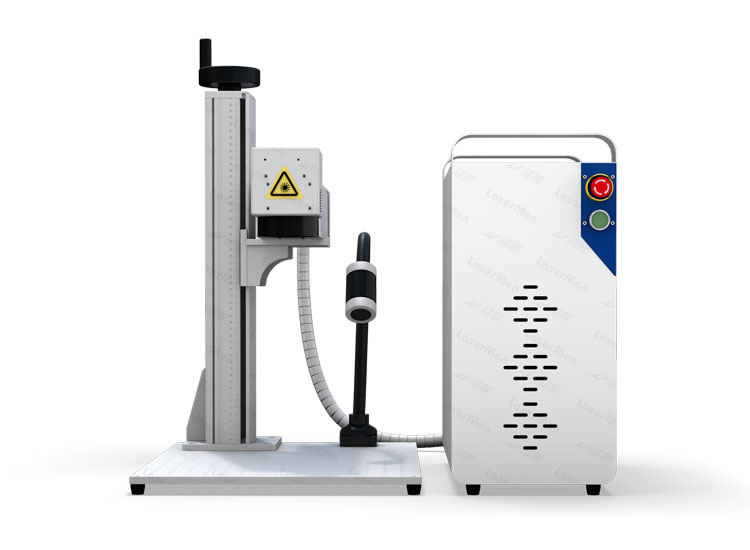

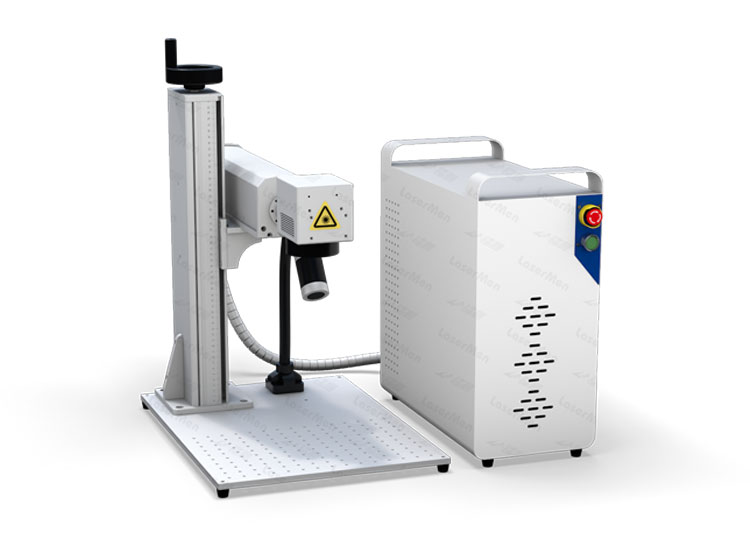

    Portable split type mini fiber laser marking machine

    Product name: Portable split type mini fiber laser marking machine
    Model: LM-20W
    Laser power: 20w, 30w, 50w, 80w, 100w
    Working range:
    Application:

    Machine features

    This fiber laser marking machine adopts a mini-split design, which is compact and easy to move. The machine has a wide range of materials, which can be applied to some non-metal products and metal machines.

    Technical parameters

    Laser wavelength 1064nm
    Frequency 20kHz~80kHz
    Marking speed 0-7000mm/s
    Resolution 0.001mm
    Repeat positioning accuracy 0.003mm
    Marking area 110mm/150mm/175mm/200mm/300mm
    Minimum line width 0.01mm
    Minimum character height 0.1mm
    Cooling system air cooling
    Working voltage 0.5KW/AC220V/50Hz(option)
    Working environment 0~35°C humidity≤90%
    Galvo head/galvanometer Sino/SKT galvo head
    Warranty Two-year warranty for the whole machine (replace
    parts during warranty(no human reason))
    Laser source MAX/Rayucs/JPT fiber laser source
    Laser power 20W/30W/50W/60W/80W/100W

    Video

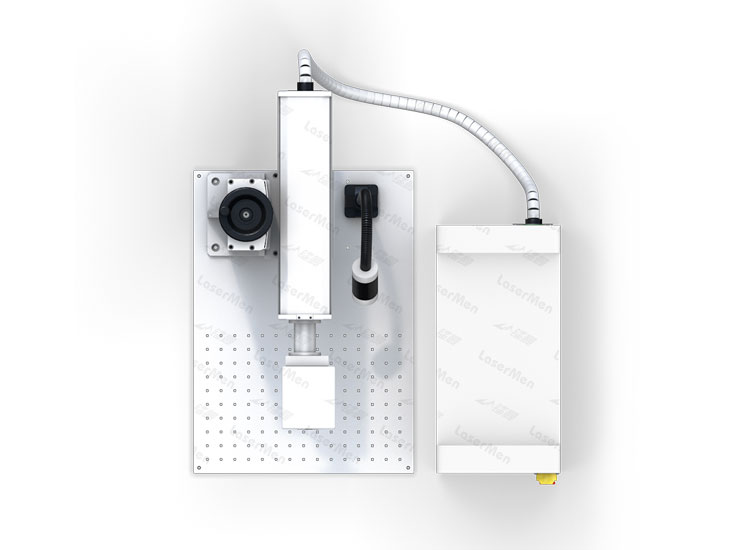

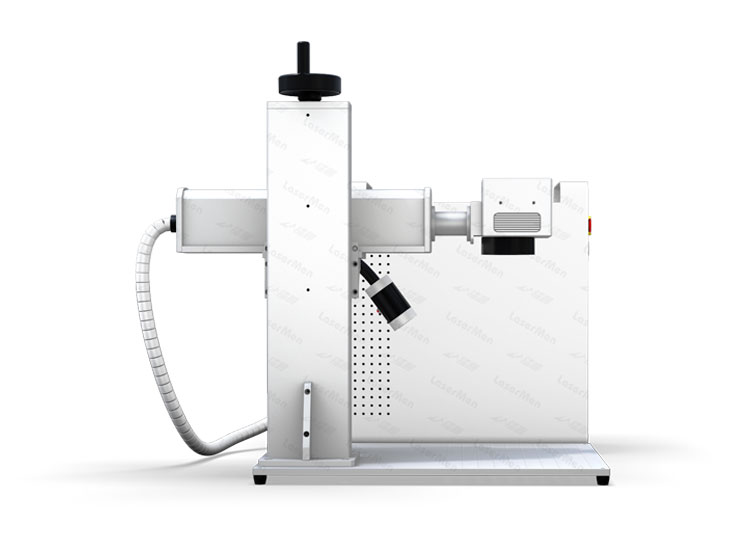

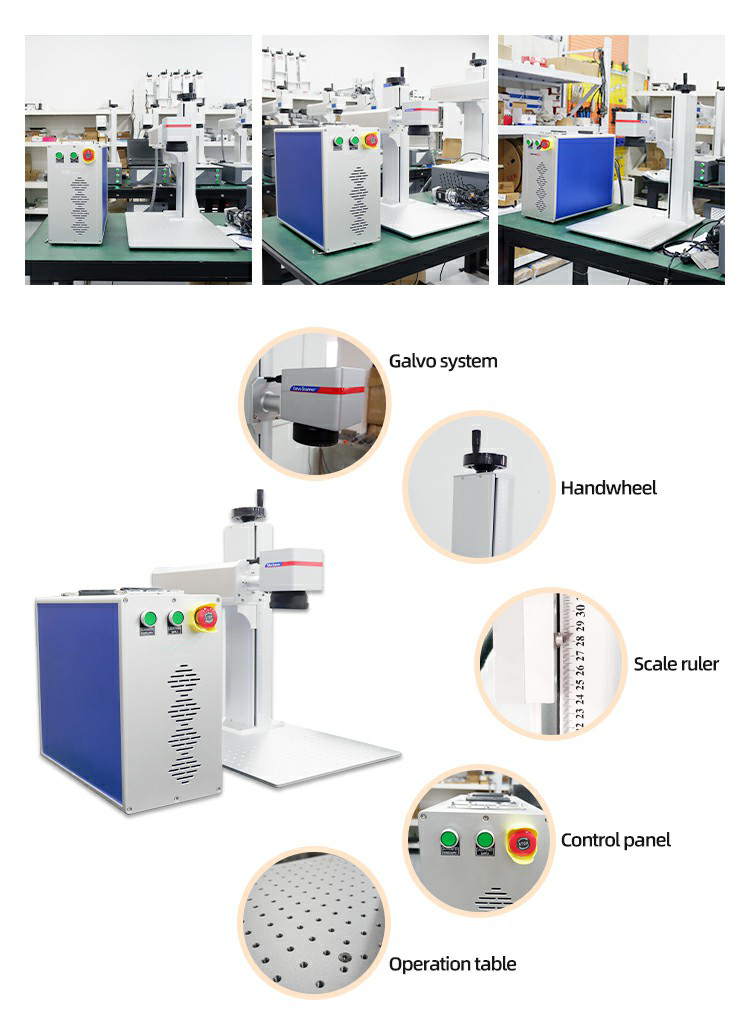

    Machine details

    split type fiber laser marking machine

    Machine Application

    Application:
    Fiber laser marking machine has a wide range of uses, and can be used to engrave logo text, brand, production batch number, LOGO, graphics, photos, QR codes, etc. on non-metallic materials of metal machines. It can also be engraved or cut in a small area on jewelry.
    fiber laser marking machine sample

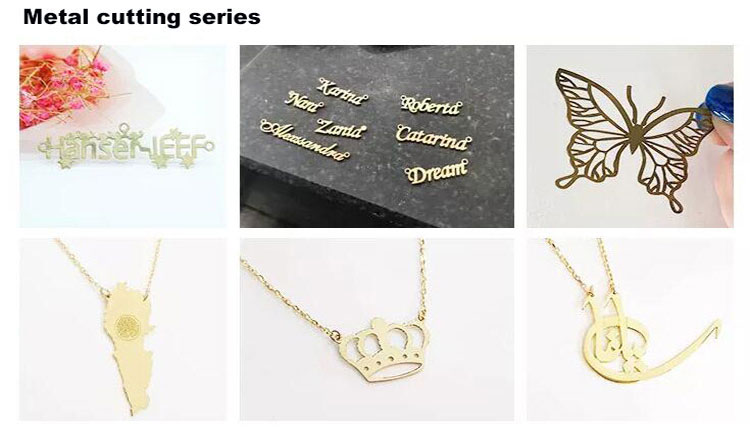

    fiber laser marking machine for metal cutting

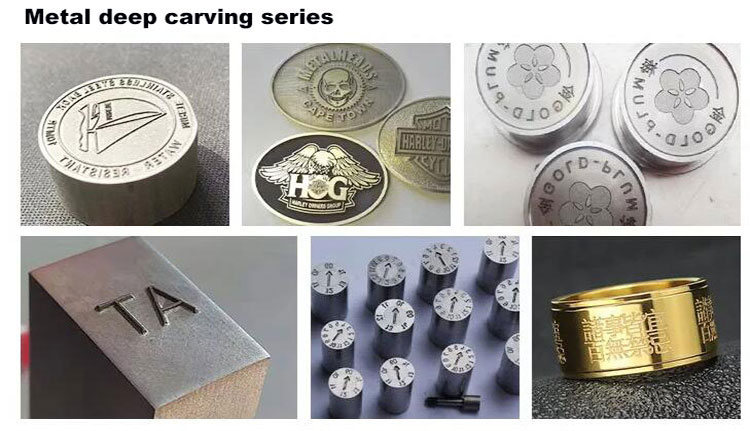

    fiber laser marking machine for metal deep carving

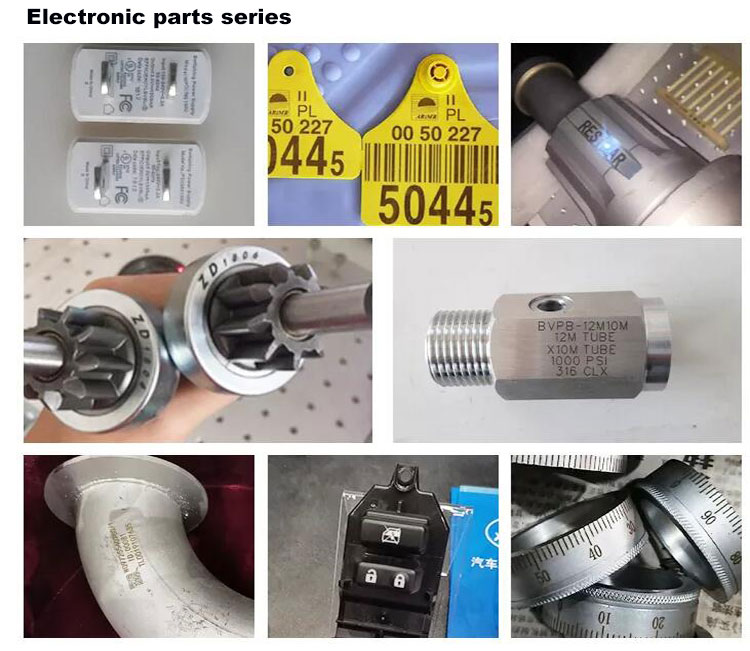

    fiber laser marking machine for electronic parts

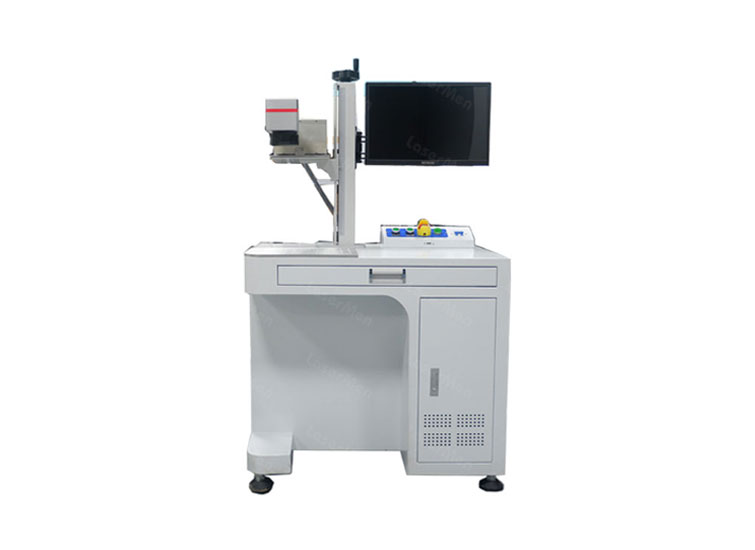

    Related Products
