Machine features
Large size CO2 laser cutting engraving machine for nonmetals1. China top brand CO2 glass laser tube, laser power available: 60W, 80W, 100W, 130W, 150W, 180W, 240W, 300W. The machine engraves and cuts non-metals. 60W-100W do both engraving and cutting. 130W and above mainly cuts, also engrave lines.
2. High power industrial water cooling system cools the CO2 laser tube and ensure stable laser output.
3. RDC6445G CNC control system with RDworks laser software support files: DXF, PLT, AI, LXD, BMP, etc. Machine read files from computer, and from USB flash as well.
4. Belt transmission in X and Y. Y belt width is 40mm.
5. Precision stepper motors with ratio gear, cutting edge is more smooth. (Optional you can choose servo motors instead of stepper motors.)
6. Air assist during cutting, removes heat and combustible gases from the cutting surface. Oxygen is necessary when cutting steel.
7. Extractors removes fumes and dusts caused during cutting.
8. Solenoid valve allows gas blowing only during cutting, which avoids gas wasting. The valve is important especially for oxygen assist during metal cutting.
Technical parameters
| Model | LM-1325-1 |
| Laser type | CO2 glass laser tube, wavelength 10.6μm, water-cooled |
| Laser power | 80W, 100W, 130W, 150W, 180W, 240W, 300W |
| Working area | 1300x2500mm |
| Engraving speed | 0-1200mm/sec |
| Cutting speed | 0-300mm/sec |
| Repeating location | ±0.01 |
| Transmission type | Belt transmission |
| Driving system | Stepper motor |
| Machine table | Blade table (alternative: honeycomb table) |
| Graphic format supported | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw |
| Software supported | CorelDraw, AutoCAD |
| Control system | RuiDa RDC6445G DSP Off-line control system, laser power 0~100% adjustable |
| Minimum letter size | Chinese 2.0x2.0mm, English 1.0x1.0mm |
| Working voltage | Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) |
| Working condition | Temperature 0~45 Celsius; Humidity 5%~95% no condensation |
CO2 LASER WOKRING CAPACITY
| Material | Engrave | Cut | Material | Engrave | Cut |
| Wood | √ | √ | Pressboard | √ | √ |
| Acrylic | √ | √ | Rubber | √ | √ |
| Fabric | √ | √ | Wood Veneer | √ | √ |
| MDF | √ | √ | Plywood | √ | √ |
| Delrin | √ | √ | Plastic | √ | √ |
| Cloth | √ | √ | Cork | √ | √ |
| Leather | √ | √ | Corian | √ | |
| Glass | √ | Fiberglass | √ | √ | |
| Ceramic | √ | Tile | √ | ||
| Marble | √ | Anodized Aluminum | √ | ||
| Matte Board | √ | √ | Stainless Steel | ||
| Melamine | √ | √ | Brass | ||
| Paper | √ | √ | Titanium | ||
| Mylar | √ | √ | Bare Metals | ||
| Coated Metals | √ | Painted Metals | √ |
Please check with us if your material is not in the above list.
MACHINE DIMENSIONS| Model | Machine dimensions | Package dimensions | Gross weight |
| LM-1325-1 | 1955*3650*1100mm | 3550*2070*1340mm=9.85 CBM | 980KGS |
Video
Machine details

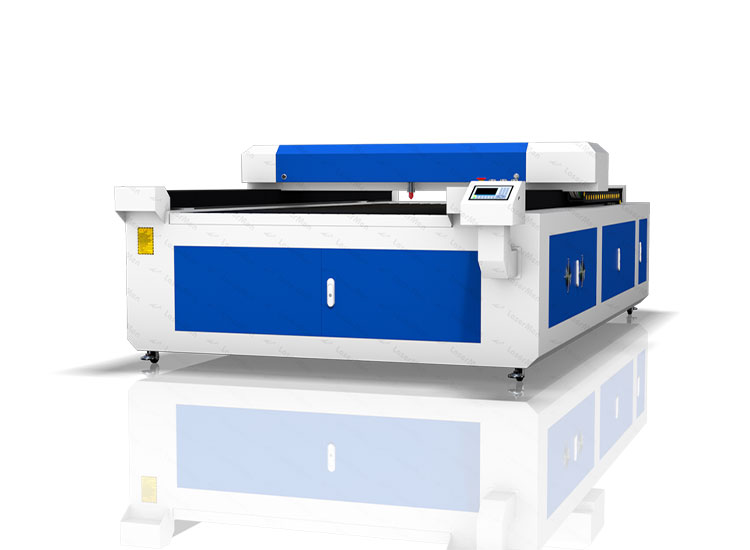

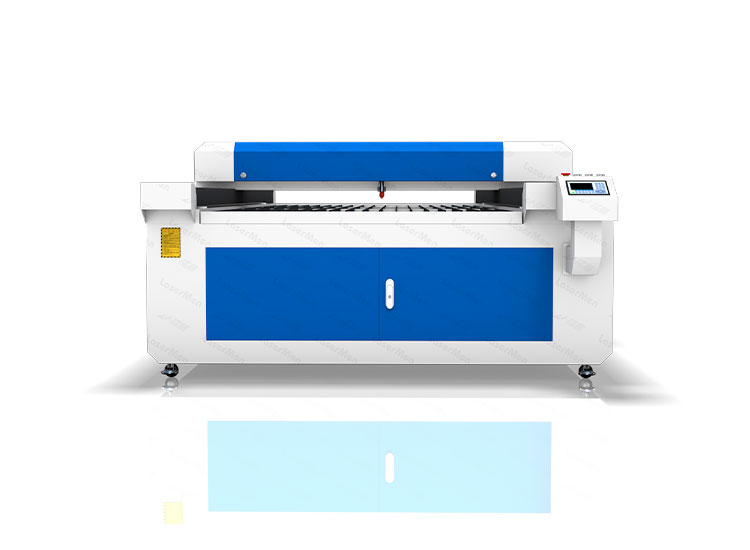

Large size CO2 laser cutting machine for nonmetals

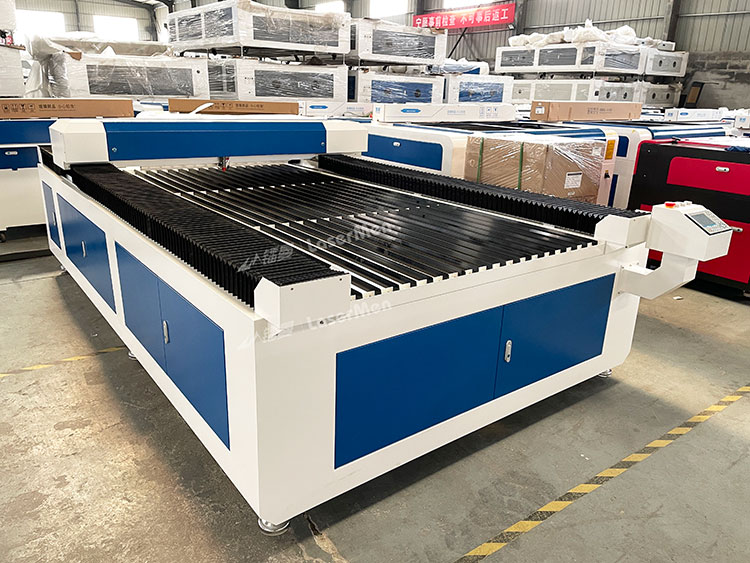

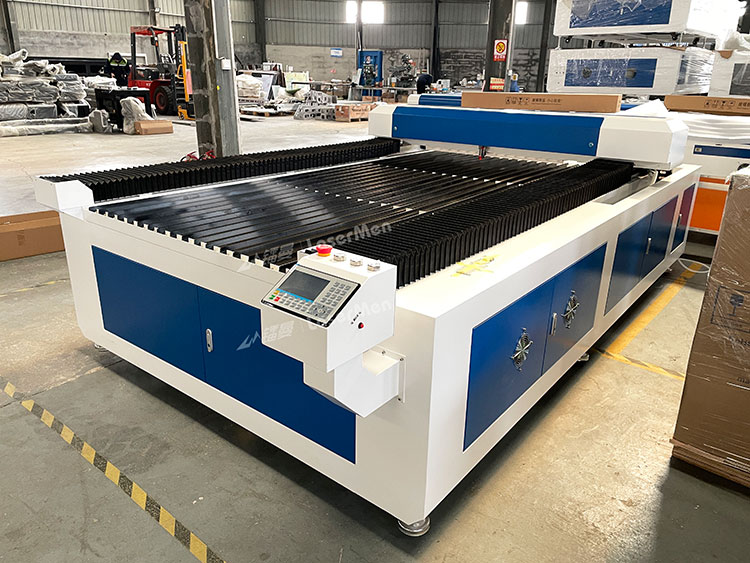

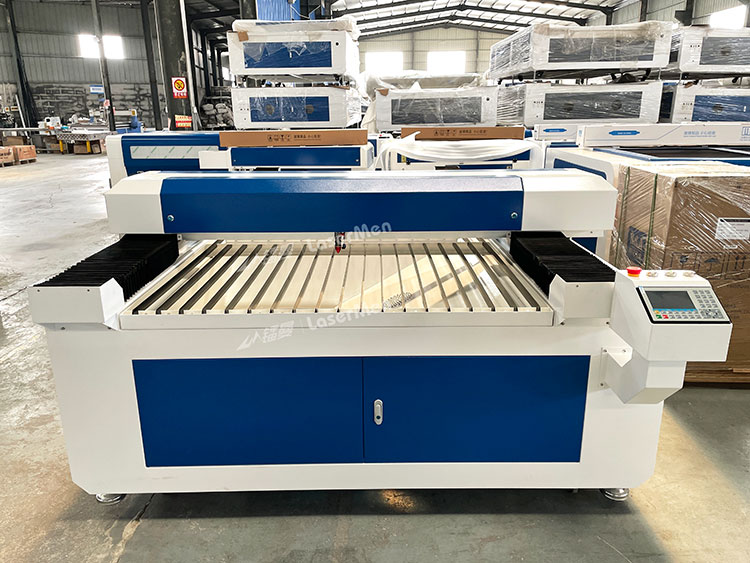

1325-1 co2 laser cutting machine with 4*8 feet working area. It can do both cutting and engraving for large sheet or board. Aluminum blade table or honeycomb table can be optional, it can be used for hard sheet materials and soft material, like cloth, fabric, leather, paper, etc.
1325-1 co2 laser cutting machine with 4*8 feet working area. It can do both cutting and engraving for large sheet or board. Aluminum blade table or honeycomb table can be optional, it can be used for hard sheet materials and soft material, like cloth, fabric, leather, paper, etc.

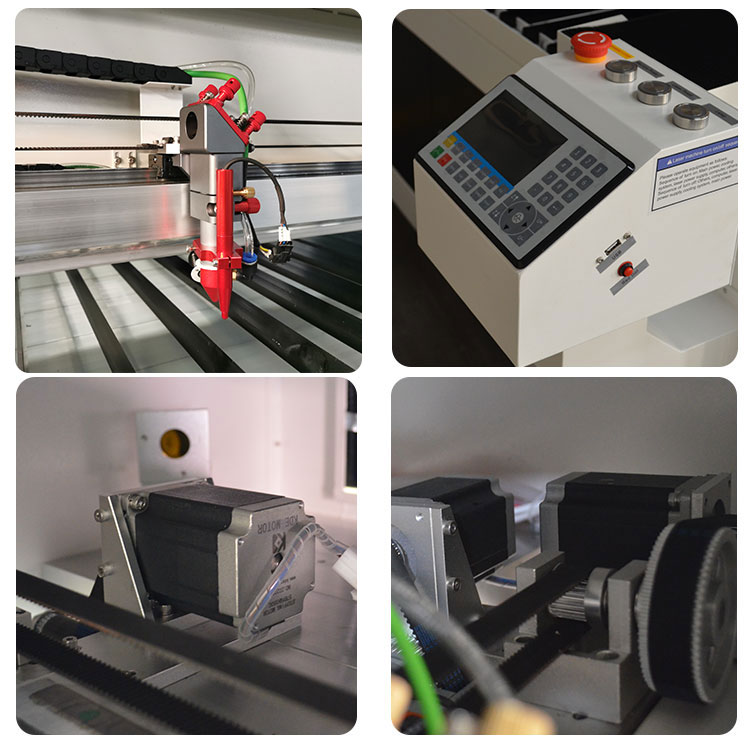

Laser head: high speed co2 laser cutting head for cutting and engraving nonmetals.
Control panel: man-machine interface operation, easy to learn and convenient to operate Driving System: 3-phrase stepper motors and drivers
Control panel: man-machine interface operation, easy to learn and convenient to operate Driving System: 3-phrase stepper motors and drivers

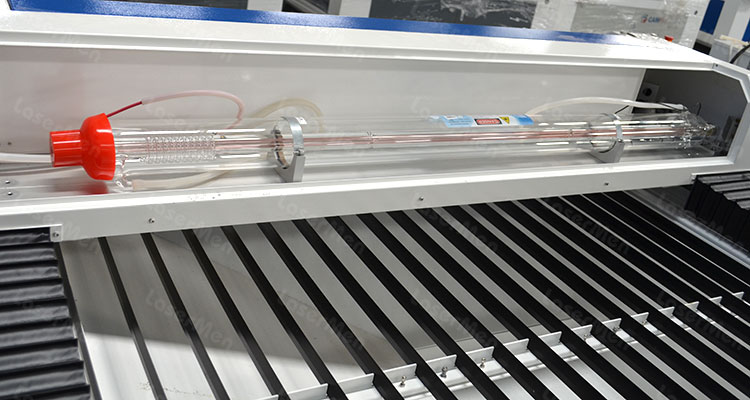

CO2 laser tube: Machine uses the China top brand Yongli or Reci CO2 laser tube with 80W, 100W, 130W, 150W, 180W, 240W, 300W laser power.
Machine Application
Applicable Materials:The machine is able to engrave and cut most non-metal materials, such as acrylic, perspex, wood, plywood, MDF, cloth,leather, plastic, paper, cardboard, pvc, rubber, etc.
Application Industries:
Advertising industry, packaging industry, arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries
