Machine features
1. LaserMen Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is our basic type CO2 laser engraving cutting machine. It is the most cost-effective and multifunctional machine. There are 5 sizes for your choice: 60x40cm, 90x60cm, 130x90cm 140x100cm and 160x100cm.
2. CO2 laser tube power from 60W to 180W optional. Applicable for engraving and cutting various nonmetallic materials, like acrylic, plexiglass, wood, MDF, rubber, PVC, leather, paper, stone, glass, etc. 60-100W can do both engraving and cutting. Higher laser power like 130W and above mainly do cutting work.
3. Machine driving system is stepper motors. Fast engraving speed is up to 1200mm/sec.
4. LaserMen Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is a whole set machine including laser tube, water cooling system, air blowing pump, exhaust fan, etc. to ensure machine running.
5. Some optional functions like red dot pointer, motorized up-down table, rotary, auto focus, WIFI provide more convenience and applicable range.
3. Machine driving system is stepper motors. Fast engraving speed is up to 1200mm/sec.
4. LaserMen Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is a whole set machine including laser tube, water cooling system, air blowing pump, exhaust fan, etc. to ensure machine running.
5. Some optional functions like red dot pointer, motorized up-down table, rotary, auto focus, WIFI provide more convenience and applicable range.
Technical parameters
| Model: | LM-6040-1 (60*40cm) LM-9060-1 (90*60cm) LM-1390-1 (130*90cm) LM-1410-1 (140*100cm) LM-1610-1 (160*100cm) |
|||||||||
| Laser power | 60w, 80w, 100w, 130w, 150w, 180w | |||||||||
| Laser type: | CO2 glass laser tube, wavelength 10.6μm, water-cooled | |||||||||
| Engraving speed: | 0-60000 mm/min | |||||||||
| Cutting speed: | 0-40000 mm/min | |||||||||
| Repeating location: | ±0.01 | |||||||||
| Transmission type: | Belt transmission | |||||||||
| Driving system: | Stepper motor | |||||||||
| Machine table: | Blade table (alternative: honeycomb table) | |||||||||
| Graphic format supported: | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw | |||||||||
| Software supported: | CorelDraw, AutoCAD | |||||||||
| Control system: | RuiDa RDC6445G DSP Off-line control system, laser power 0~100% adjustable | |||||||||
| Minimum letter size | Chinese 2.0x2.0mm, English 1.0x1.0mm | |||||||||
| Working voltage: | Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) | |||||||||
| Working condition | Temperature 0~45 Celsius; Humidity 5%~95% no condensation | |||||||||
CO2 LASER WOKRING CAPACITY
| Material | Engrave | Cut | Material | Engrave | Cut |
| Wood | √ | √ | Pressboard | √ | √ |
| Acrylic | √ | √ | Rubber | √ | √ |
| Fabric | √ | √ | Wood Veneer | √ | √ |
| MDF | √ | √ | Plywood | √ | √ |
| Delrin | √ | √ | Plastic | √ | √ |
| Cloth | √ | √ | Cork | √ | √ |
| Leather | √ | √ | Corian | √ | |
| Glass | √ | Fiberglass | √ | √ | |
| Ceramic | √ | Tile | √ | ||
| Marble | √ | Anodized Aluminum | √ | ||
| Matte Board | √ | √ | Stainless Steel | ||
| Melamine | √ | √ | Brass | ||
| Paper | √ | √ | Titanium | ||
| Mylar | √ | √ | Bare Metals | ||
| Coated Metals | √ | Painted Metals | √ |
Please check with us if your material is not in the above list.
MACHINE DIMENSIONS
| Model | Machine dimensions | Package dimensions | Gross weight |
| LM-6040-1 | 1380*800*1000 mm | 1550*1000*1240 mm = 1.93 CBM | 200 kgs |
| LM-9060-1 | 1380*1000*1000 mm | 1500*1300*1240 mm = 2.42 CBM | 300 kgs |
| LM-1390-1 | 1780*1300*1000 mm | 1910*1450*1240 mm = 3.44 CBM | 450 kgs |
| LM-1410-1 | 1880*1300*1000 MM | 2010*1450*1240 mm = 3.62 CBM | 470 kgs |
| LM-1610-1 | 2080*1400*1000 mm | 2200*1700*1250 mm = 4.68 CBM | 500 kgs |
Video
Machine details

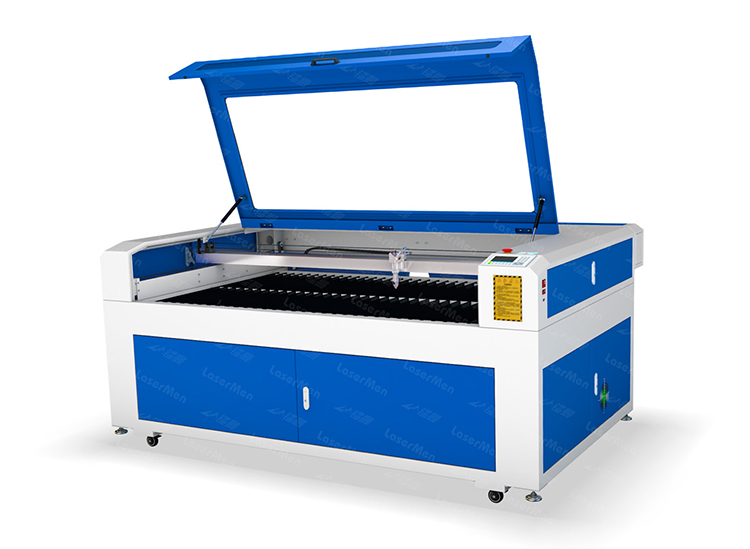

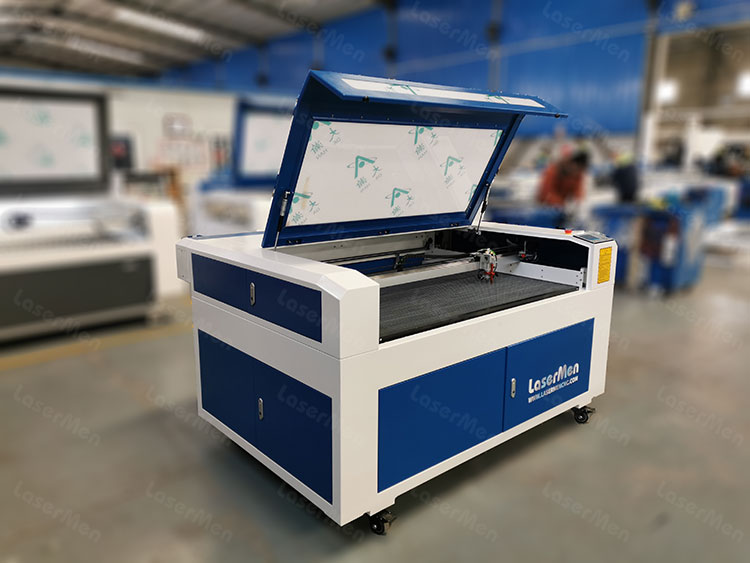

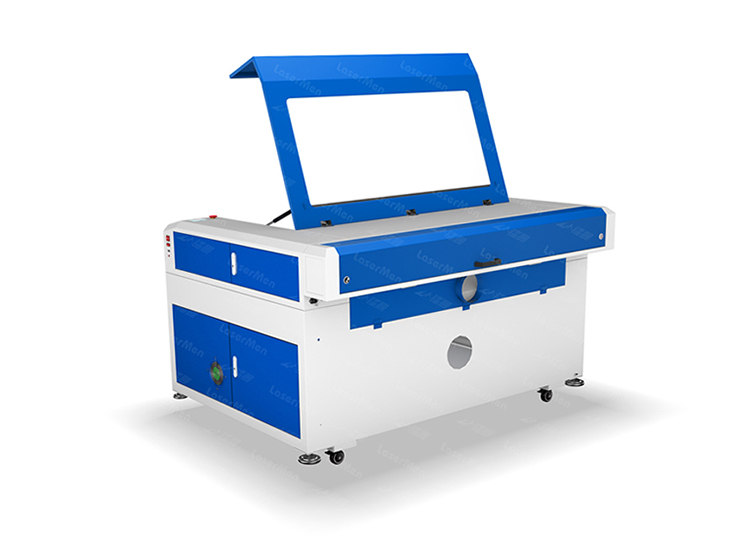

LaserMen High speed laser engraving cutting machine for nonmetals
This series -1 is our basic type CO2 laser engraving cutting machines. This versatile CO2 laser machine is utilized by our customers for high-quality engraving and cutting of various non-metallic materials including acrylic, wood, mdf, stone, and others.
There are 5 sizes for your choice: 60x40cm, 90x60cm, 130x90cm, 140x90cm and 160x100cm.
Laser tube power available for LaserMen series -1 machines: 60W, 80W, 100W, 130W, 150W and 180W. 60-100W machines do both engraving and cutting. The maximum engraving speed can be up to 1200 mm/sec. Machines above 100W mainly cuts. Stronger laser power cuts thicker and faster. You may have a reference here for the machine cutting capacity:
| Material | Maximum cutting thickness (mm) | |||||
| 60W | 80W | 100W | 130W | 150W | 180W | |
| Acrylic | 8 | 10 | 15 | 15 | 25 | 25 |
| Wood | 5 | 5 | 9 | 12 | 18 | 18 |
| MDF | 3 | 5 | 9 | 9 | 12 | 12 |
| Plywood | 5 | 5 | 9 | 12 | 18 | 18 |
| Other materials like foam, rubber, leather, fabric, paper, cardboard, etc. also can be cut. | ||||||

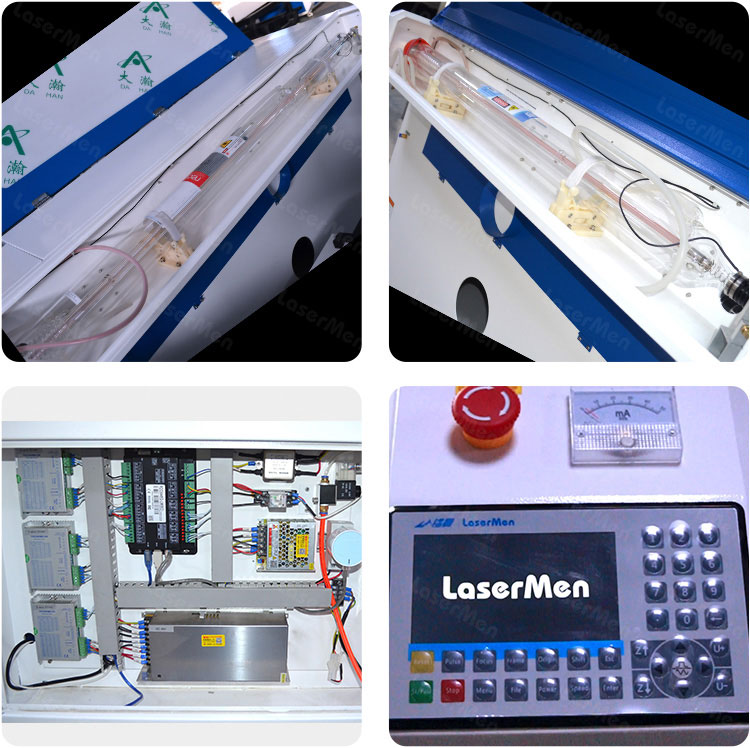

Machine Details:
1. Laser machine brand: LaserMen
2. Laser tube brand: Yongli, RECI
3. Cooling system: water pump / CW-3000 water chiller / CW-5000 water chiller / CW-5200 water chiller
4. Transmission: Taiwan linear guide rails, belt transmission
5. Driving system: stepper motors, maximum engraving speed 1200mm/sec
6. Control system: RuiDa RDC6445G
7. Machine table: slats table as standard, and honeycomb table as optional.
8. Optical lens: Wavelength lens
9. Laser software: RDWorks
10. Air assist: air compressor
11. Ventilation: exhaust fan

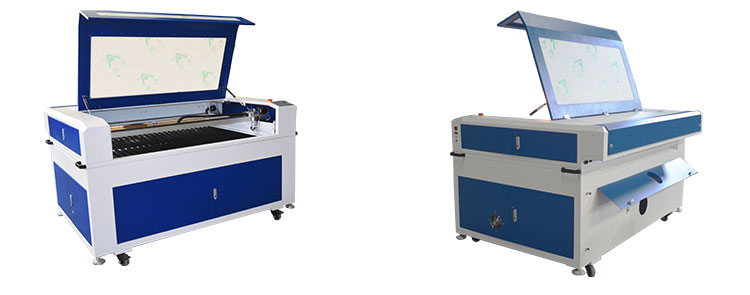

Machine has a path for long material to pass through.
Optional Functions:
There are some optional functions for your choice to facilitate machine operation and enlarge machine application.
- safety lock: Machine works with door closed, and stops working if door open.
- WIFI: You can send files to machine through WIFI.
- red dot pointer: The red dot previews where you are going to fire the laser.
- auto focus: It adjusts the focal lengh automatically before engraving or cutting.
- motorized up-down Z: Machine table can be lowered and lifted to different height.
- rotary: It assists processing of cylindrical items.
- safety lock: Machine works with door closed, and stops working if door open.
- WIFI: You can send files to machine through WIFI.
- red dot pointer: The red dot previews where you are going to fire the laser.
- auto focus: It adjusts the focal lengh automatically before engraving or cutting.
- motorized up-down Z: Machine table can be lowered and lifted to different height.
- rotary: It assists processing of cylindrical items.

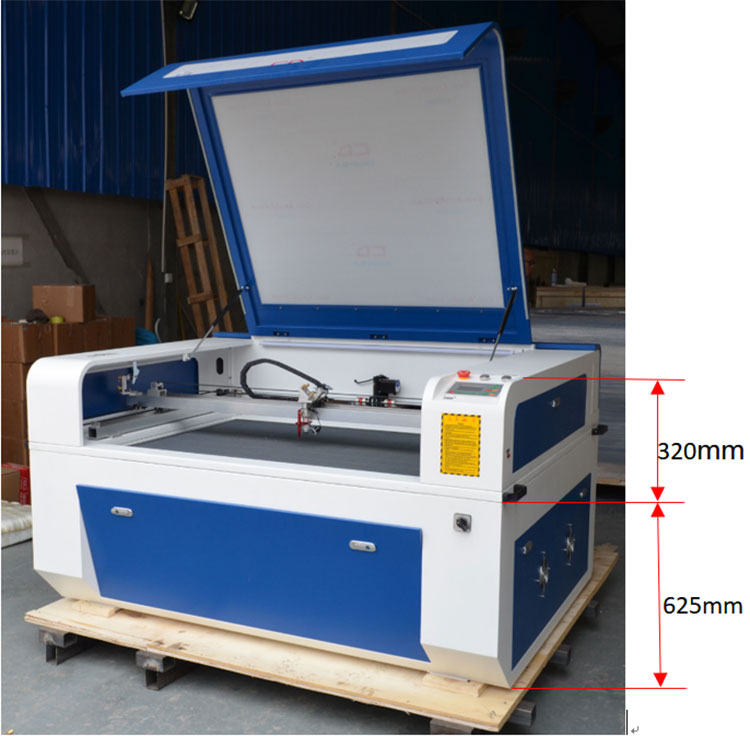

Optional: split type co2 laser cutting and engraving machine1.) The upper and lower parts of the machine can be split.
2.) The machine is suitable for rooms with narrow doors, and machines with conventional structures cannot enter the door.
Machine Application
High speed laser engraving cutting machine for nonmetals is widely applied for engraving and cutting various non-metal materials, such as: acrylic, wood, plywood, mdf, double-layer sheet, cloth, leather, foam, glass, stone, etc.It is popular in the industries of advertising signs, arts and crafts, architectural models, wine bottle customizing, toys, cloth, shoes, bags, etc.
Acrylic injection molding spout laser cutting
Acrylic injection molding spout laser cutting
