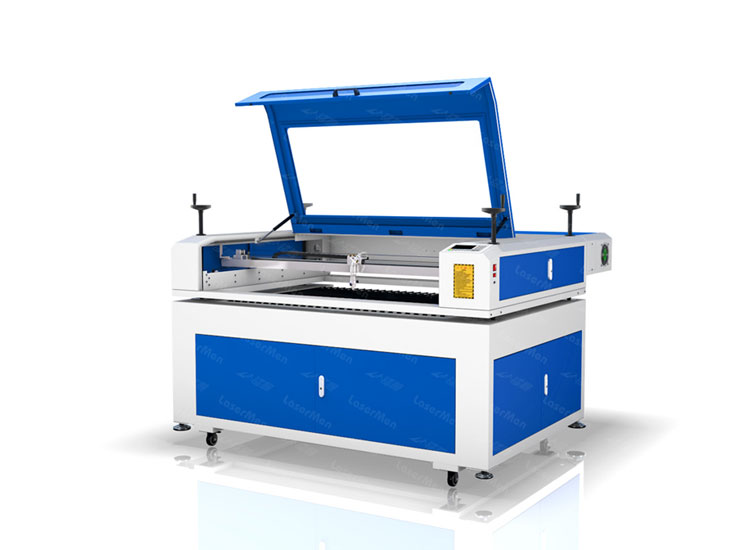

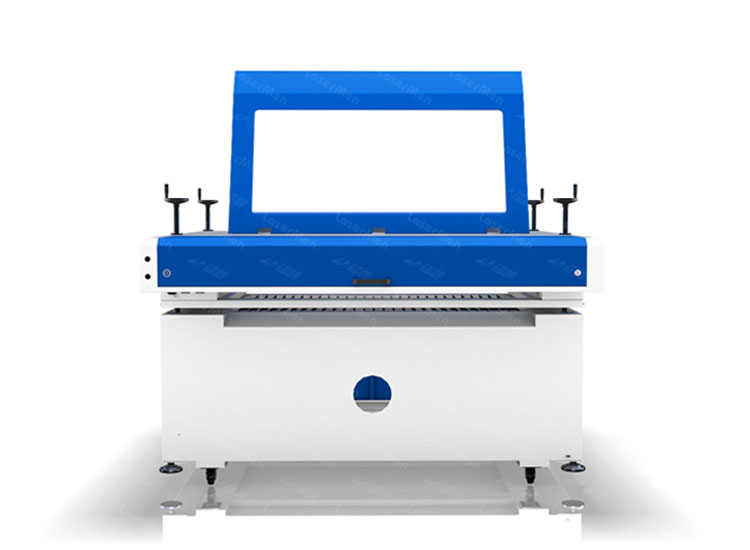

    Split type co2 laser cutting and engraving machine

    Product name: Split type co2 laser cutting and engraving machine
    Model: LM-1060 split, LM-1390 split
    Laser power: 80w, 100w, 130w, 150w
    Working range: 1000x600mm, 1300x900mm
    Application: Marble, granite, ceramic tiles, wooden products, paper, plastic, rubber, acrylic, bamboo, double-color sheets, glass, wine bottles and other non-metal materials.

    Machine features

    1. Adopt upper and lower two parts split design to facilitate customers operation and avoid heavy material carrying and loading.
    2. To provide bigger convenience for customers to engrave objects with different thickness. It is popular in stone engraving and other industries.
    3. Advanced DSP control system, with high speed and easy operation.
    4. High engraving speed, greatly improving the processing efficiency.
    5. The machine is suitable for rooms with narrow doors, and machines with conventional structures cannot enter the door.
    6. The upper and lower parts of the machine can be used separately or assembled.

    Technical parameters

    Model LM-1060 LM-1390
    Laser type                                       CO2 glass laser tube, wavelength 10.6μm, water-cooled
    Laser power  80w, 100w, 130w 80w, 100w, 130w, 150w
    Working area  1000x600mm 1300x900mm
    Engraving speed                                                             0-1000mm/sec
    Cutting speed                                                             0-500mm/sec
    Repeating location                                                            ±0.01
    Transmission type                                                           Belt transmission
    Driving system                                                           Stepper motor
    Machine table                                          Blade table (alternative: honeycomb table)
    Graphic format supported                    *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw
    Software supported                                                CorelDraw, AutoCAD
    Control system                      RuiDa RD6445G DSP Off-line control system, laser power 0~100% adjustable
    Minimum letter size                                      Chinese 2.0x2.0mm, English 1.0x1.0mm
    Working voltage                             Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)
    Working condition                            Temperature 0~45 Celsius; Humidity 5%~95% no condensation

    CO2 LASER WOKRING CAPACITY

    Material Engrave Cut Material Engrave Cut
    Wood  Pressboard
    Acrylic  Rubber
    Fabric  Wood Veneer
    MDF Plywood
    Delrin Plastic
    Cloth Cork
    Leather Corian
    Glass   Fiberglass
    Ceramic   Tile
    Marble   Anodized Aluminum
    Matte Board Stainless Steel
    Melamine Brass
    Paper Titanium
    Mylar Bare Metals
    Coated Metals   Painted Metals

    Please check with us if your material is not in the above list.

    Video

    Machine details

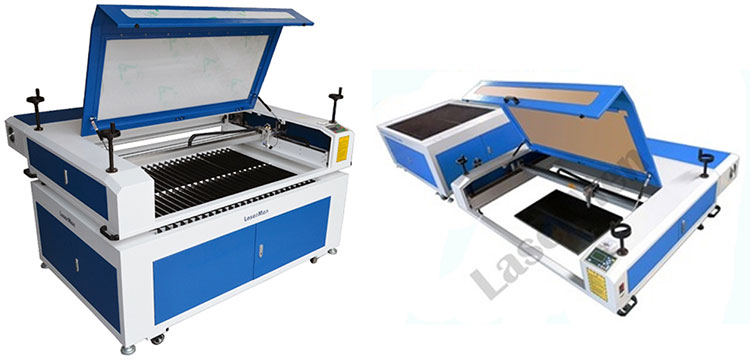

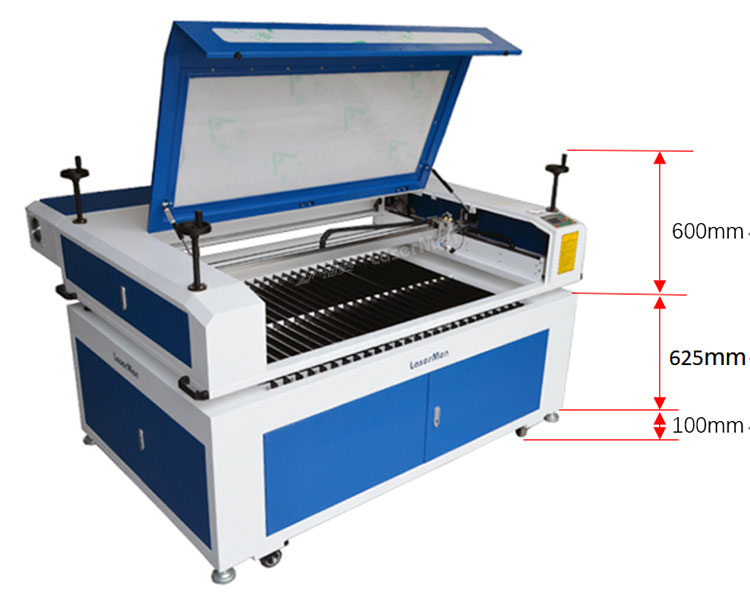

    1.) The upper and lower parts of the machine can be split.
    2.) The height of the upper part can be adjusted by turning the four screw rods.
    3.) The upper part of the machine can work independently.
    4.) When carving stone (heavier objects), the upper part of the machine can be placed above the stone for carving without moving the heavy stone to the machine platform.

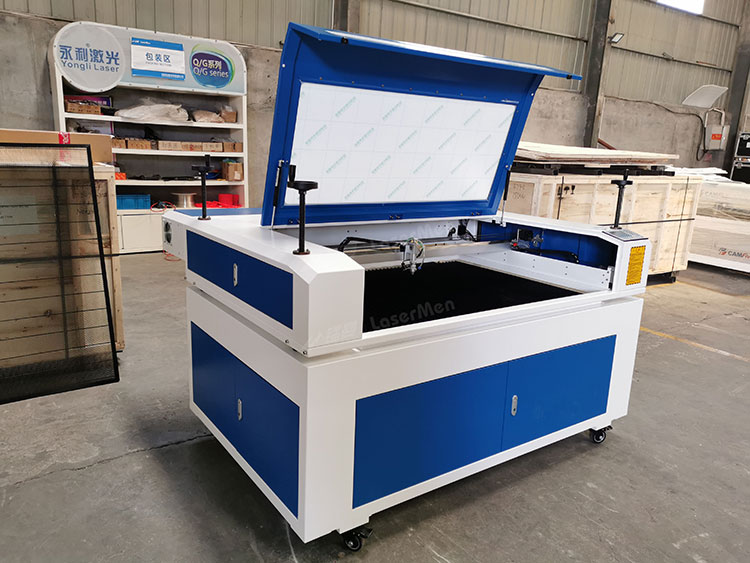

    split co2 laser cutting engraving machine

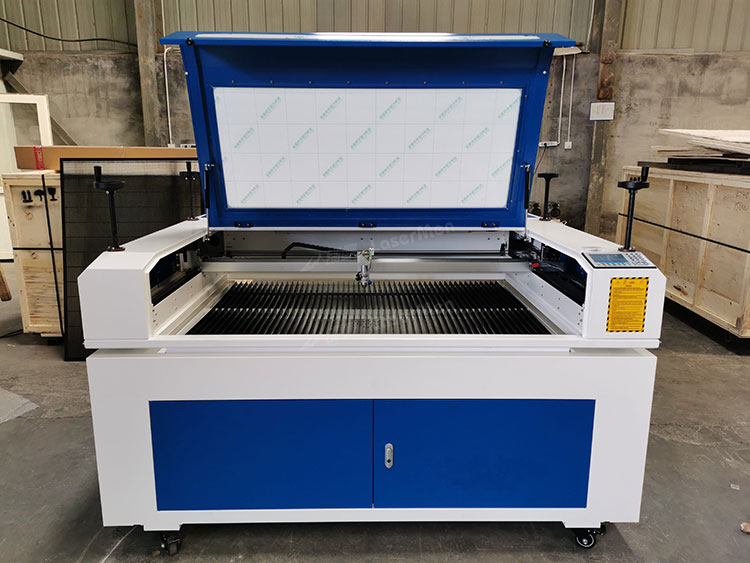

    split type co2 laser cutting and engraving machine

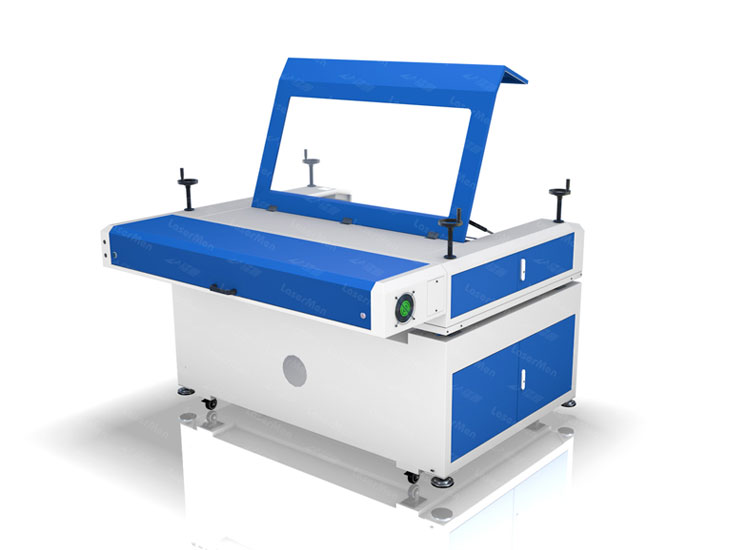

    split type co2 laser cutting engraving machine

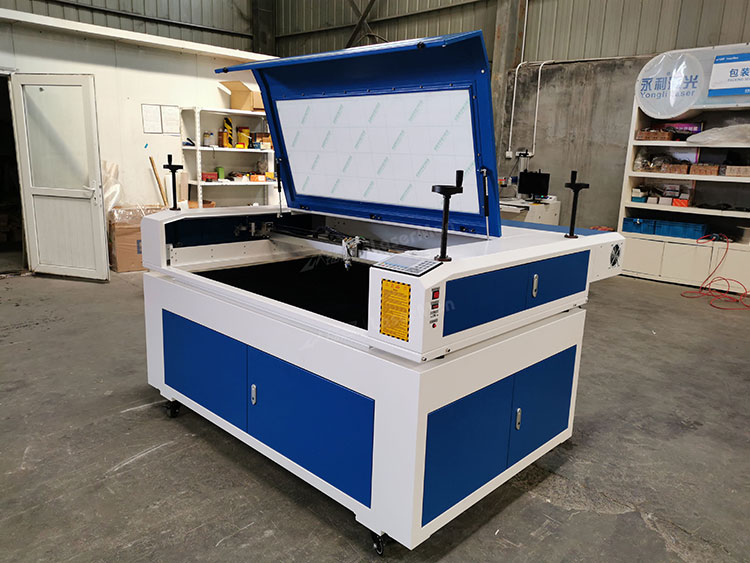

    split type co2 laser cutting engraving machine

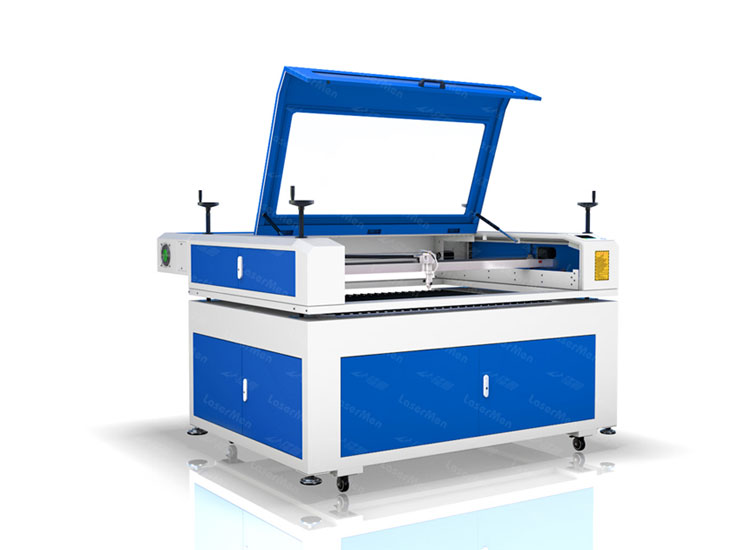

    split type co2 laser cutting engraving machine

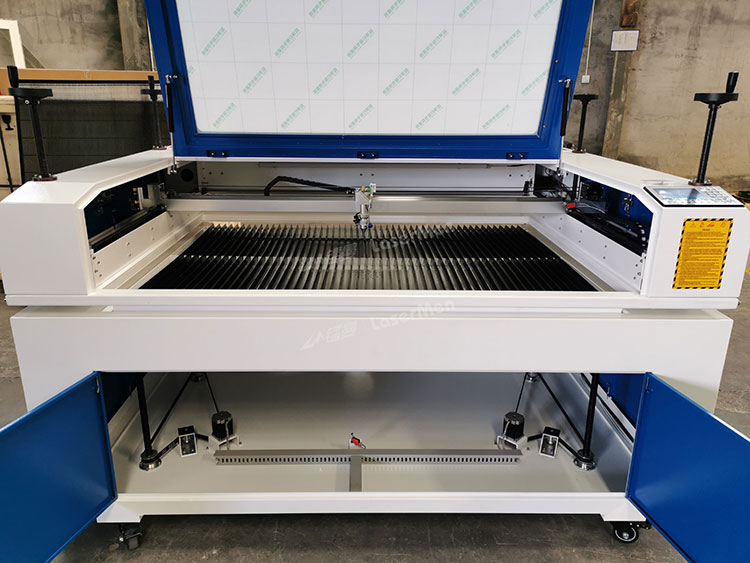

    Up and down woking table: this machine also can equipt with rotary device to engrave round materials.
    Wokring table: blade woking table / honeycome working table.
    split type co2 laser cutting engraving machine up and down table

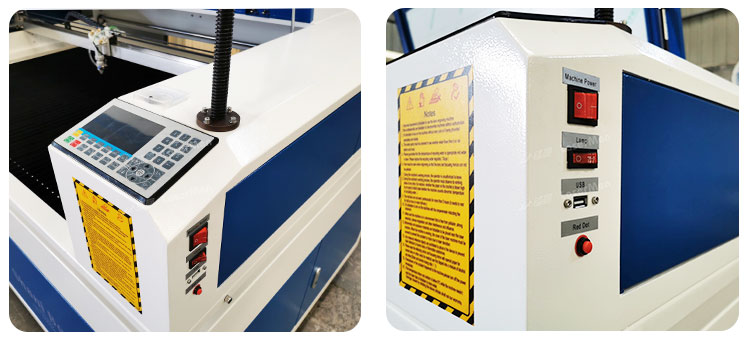

    Man-machine conversation interface: ruida controller, function buttons are in a row, easy to operate.
    split type co2 laser cutting engraving machine detailes

    Machine Application

    Applicable Materials:
    Marble, granite, ceramic tiles, wooden products, paper, plastic, rubber, acrylic, bamboo, double-color sheets, glass, wine bottles and other non-metal materials.
    co2 samples
