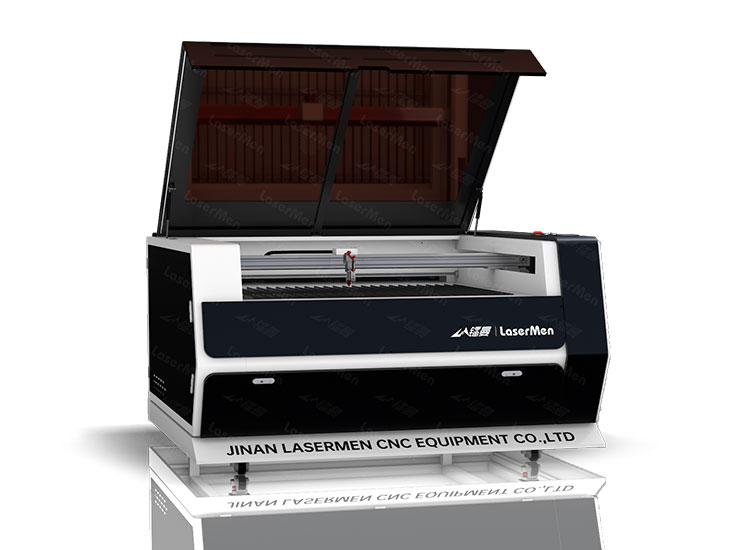

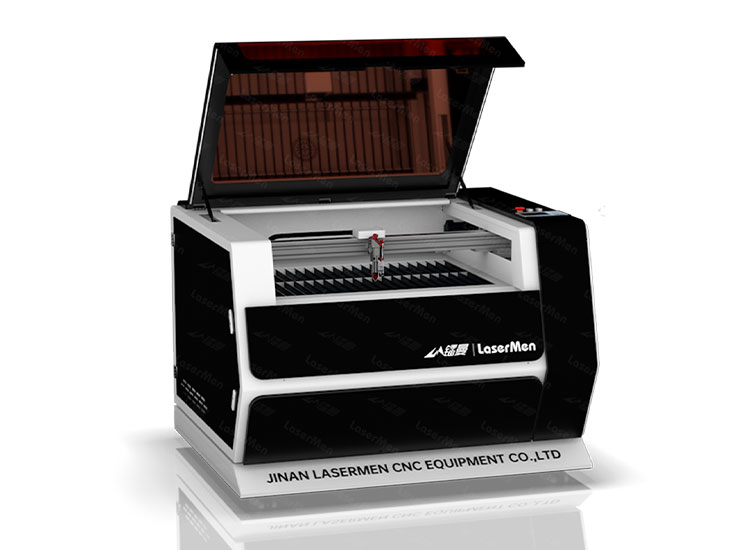

    Advanced CO2 Laser Cutting Engraving Machine

    Product name: Advanced CO2 Laser Cutting Engraving Machine
    Model: LM-9060-F, LM-1390-F
    Laser power: 100W, 130W, 150W
    Working range: 900x600mm, 1300x900mm
    Application: engrave and cut various non-metal materials

    Machine features

    1.Welded machine bed. Machine is heavier and more stable,which ensures machine runs fast and smoothly.
    2.Laser tube with coaxial red light,compact design and stableperformance.
    3.Module guide slide is sealed with silicon steel,effectivelyprotects the rail lubrication and lasts the rail service life.
    4.Machine adopts ball screw lifting Z axis table,quality cuttingsection,high precision and good stability. Machine is able toprocess precision parts.
    5.Machine adopts LeadShine servo motors, which has advantag-es of large output torque, reliable performance, no out-of-step,small heat, low energy consumption.
    6.Upgraded RuiDa controller version RDC6445G, besides basicfunctions, has more functions such as vectorization,3D engrav一ing,photo laser,nesting,etc. Diversified functions make themachine more smart and easy to use.

    Technical parameters

    Model: LM-9060-F LM-1390-F
    Laser type: CO2 glass laser tube, wavelength 10.6μm, water-cooled
    Laser power: 100W 100W, 130W, 150W
    Working area: 900x600mm 1300x900mm
    Engraving speed: 0-1800mm/sec
    Cutting speed: 0-1500mm/sec
    Repeating location: ±0.01
    Transmission type: Integrated module guide transmission, with sealed dust-proof structure
    Driving system: LeadShine servo motors
    Machine table: Slats table+honeycomb table, with high precision ball screw transmission motorized up-down axis
    Software supported: CorelDraw, AutoCAD
    Graphic format supported: *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw
    Control system: DSP Off-line control system RuiDa RDC6445G, laser power 0~100% adjustable
    Minimum letter size Chinese 2.0x2.0mm, English 1.0x1.0mm
    Machine power input 1-phase 220V 50/60Hz, 1-phase 110V 60Hz
    Machine power consumption 2kw·h
    Working condition Temperature 0~45 Celsius; Humidity 5%~95% no condensation

    CO2 LASER WOKRING CAPACITY
    Material Engrave Cut Material Engrave Cut
    Wood  Pressboard
    Acrylic  Rubber
    Fabric  Wood Veneer
    MDF Plywood
    Delrin Plastic
    Cloth Cork
    Leather Corian
    Glass   Fiberglass
    Ceramic   Tile
    Marble   Anodized Aluminum
    Matte Board Stainless Steel
    Melamine Brass
    Paper Titanium
    Mylar Bare Metals
    Coated Metals   Painted Metals

    Please check with us if your material is not in the above list.

    Video

    Machine details

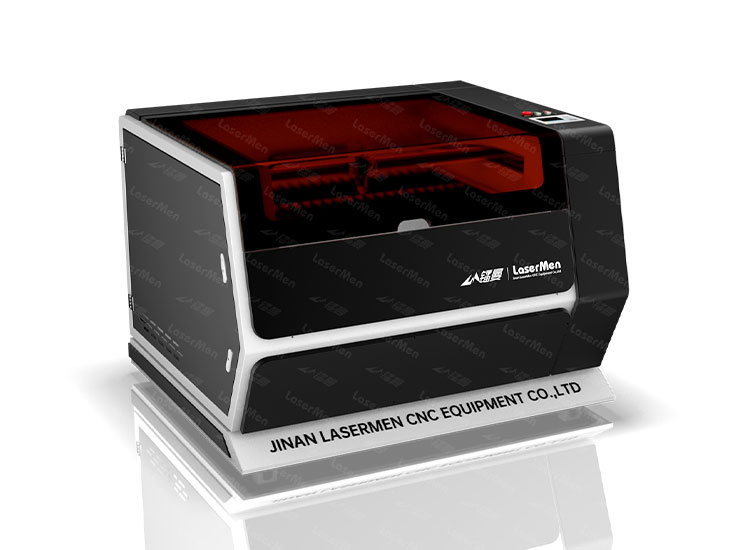

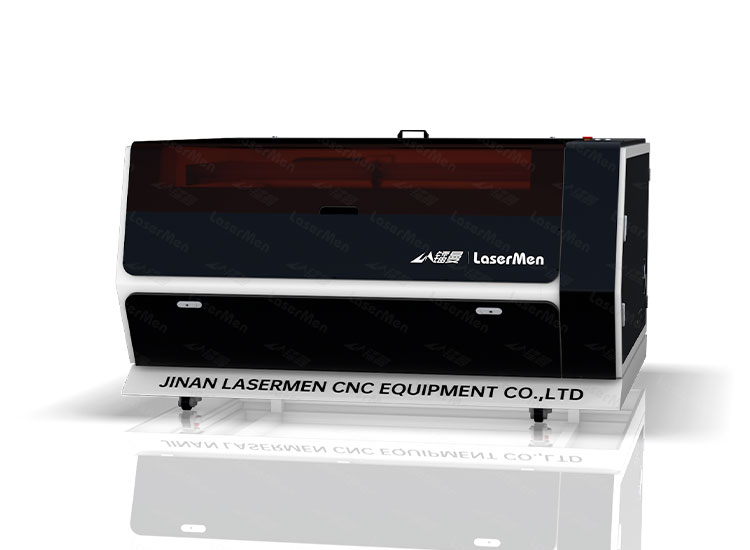

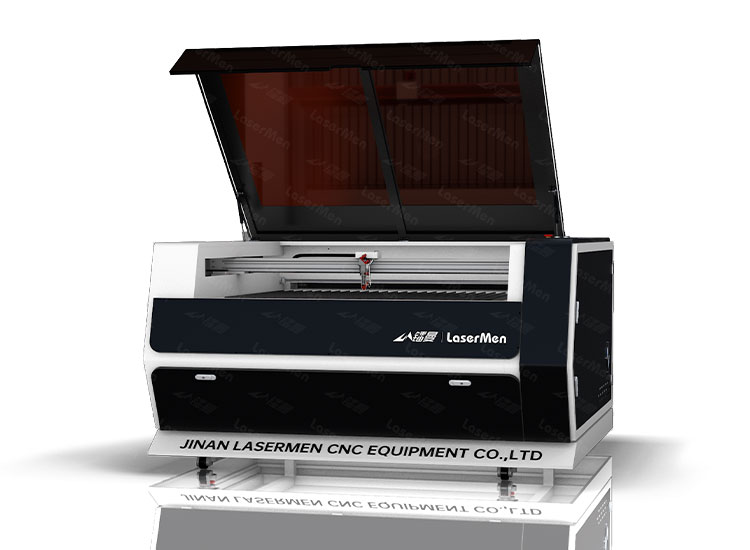

    Precision co2 laser machine
    HIgh precision co2 laser machine


    LaserMen Precision co2 laser cutting and engraving machine with heavy duty welded machine bed, tawny safe window.  It is designed by our professional R&D team, based on customers’ requirements, which is high-precision, strong and durable.

    co2 laser tube

    China top brand co2 glass laser tube with coxial red light.

      Leadshine servo motors

    Driving system with Leadshine servo motors

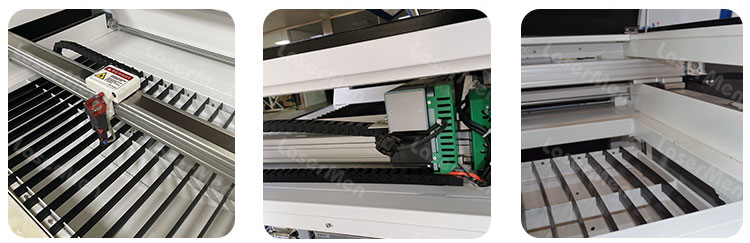

    co2 laser cutting engraving machine with module guide transmission

    Transmission: module guide transmission, with dust-proof structure

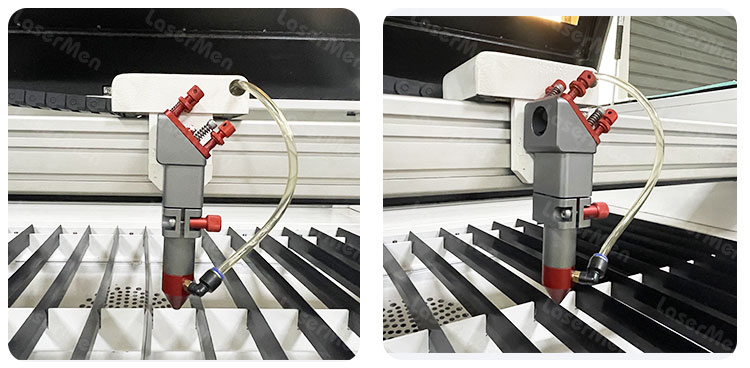

    laser head

    high precision optical laser head for non-metal engraving and cutting.

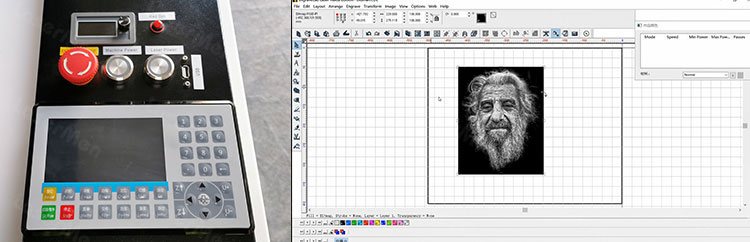

    RDEngraveLab

    RuiDa controller with RD6445G card and RDEngraveLab software.
    RDEngraveLab sofware has powerful functions: 1. Creat badges 2.3D engraving (engrave deep up to 5mm) 3.Photo Laser 4. Nesting.

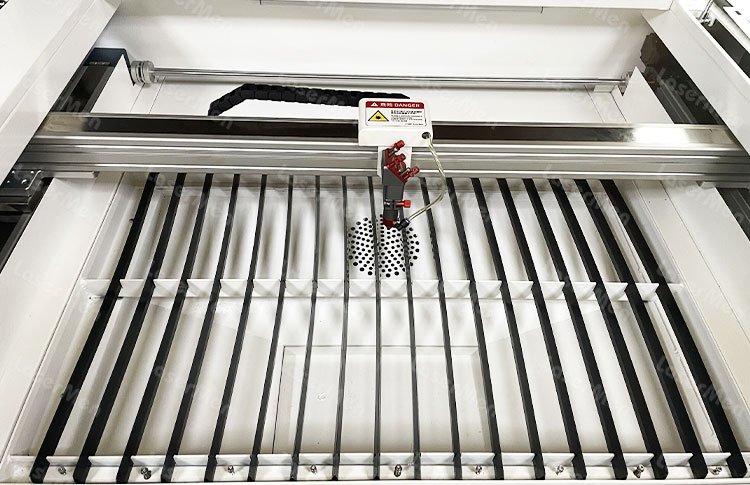

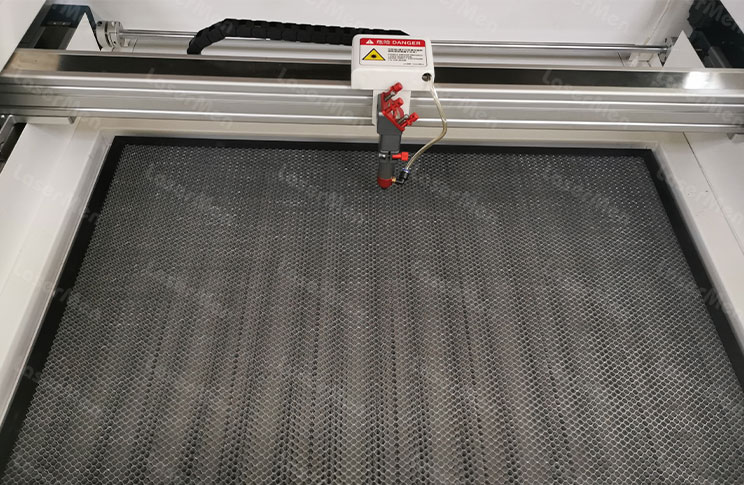

    Slats table

    honeycomb worktable of LM-9060-F

    900*600mm and 1300*900mm, two valid working area can be selected. Machine table is slats table and honeycomb table.

    Up-down table

    Machine with high precision ball screw transmission motorized up-down axis.

    fume filter

    The left one is LM-013, 130w fume filter, the right one is LM-075, 750w fume filter. LM-9060-F co2 laser machine with the LM-013, bigger size LM-1390-F can be with LM-075



    Machine Application

    LM-9060-F CO2 laser engraving cutting machine is able to engrave and cut most non-metal materials, such as acrylic, wood, MDF, plywood, veneer, leather, rubber, fabric, etc. It is widely applied in advertising signs and boards, arts and crafts, awards and trophies, paper-cutting, architectural model, toys, lights and lamps, printing and packaging, electronic appliances, photo frames and albums, garment leather and other industries.

    co2 laser cutting engraving machine for 3d engrave

      Samples of LM-F co2 laser machine
