Machine features

1.Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is a very popular type machine, this type machine can cut and engrave most nonmetal materials, such as wood acrylic MDF plastic leather plywood etc.
2.Many of our customers order this type machine in batches, so we have stock of this type, and can usually ship within seven days.
3. There are 5 sizes for your choice: 60x40cm, 90x60cm, 130x90cm, 140x90cm, and 160x100cm.
4.Machine power can be selected from 60w to 300w, that depends on your working purpose. 60-100W can do both engraving and cutting. Higher laser power like 130W and above mainly do cutting work.
5.Some optional functions can be selected, like red dot pointer, motorized up-down table, rotary, auto focus, WIFI provide more convenience and applicable range.
- safety lock: Machine works with door closed, and stops working if door open.
- WIFI: You can send files to machine through WIFI.
- red dot pointer: The red dot previews where you are going to fire the laser.
- auto focus: It adjusts the focal lengh automatically before engraving or cutting.
- motorized up-down Z: Machine table can be lowered and lifted to different height.
- rotary: It assists processing of cylindrical items.

Technical parameters

Model	LM-6040-2 DB(6040cm) LM-9060-2 DB(9060cm) LM-1390-2 (13090cm) LM-1490-2 (14090cm) LM-1610-2 (160*100cm)
Laser power	60w, 80w, 100w, 130w, 150w, 180w, 240w, 300w
Laser type	CO2 glass laser tube, wavelength 10.6μm, water-cooled
Engraving speed	0-1200mm/sec
Cutting speed	0-500mm/sec
Repeating location	±0.01
Transmission type	Belt transmission
Driving system	Stepper motor
Machine table	Blade table (alternative: honeycomb table)
Graphic format supported	.plt, .dst, .dxf, .bmp, .dwg, .ai, *.las, supporting AutoCAD and CorelDraw
Software supported	CorelDraw, AutoCAD
Control system	RuiDa RDC6445G DSP Off-line control system, laser power 0~100% adjustable
Minimum letter size	Chinese 2.0x2.0mm, English 1.0x1.0mm
Working voltage	Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)
Working condition	Temperature 0~45 Celsius; Humidity 5%~95% no condensation

CO2 LASER WOKRING CAPACITY

Material	Engrave	Cut	Material	Engrave	Cut
Wood	√	√	Pressboard	√	√
Acrylic	√	√	Rubber	√	√
Fabric	√	√	Wood Veneer	√	√
MDF	√	√	Plywood	√	√
Delrin	√	√	Plastic	√	√
Cloth	√	√	Cork	√	√
Leather	√	√	Corian	√
Glass	√		Fiberglass	√	√
Ceramic	√		Tile	√
Marble	√		Anodized Aluminum	√
Matte Board	√	√	Stainless Steel
Melamine	√	√	Brass
Paper	√	√	Titanium
Mylar	√	√	Bare Metals
Coated Metals	√		Painted Metals	√

Please check with us if your material is not in the above list.

Video

Machine details

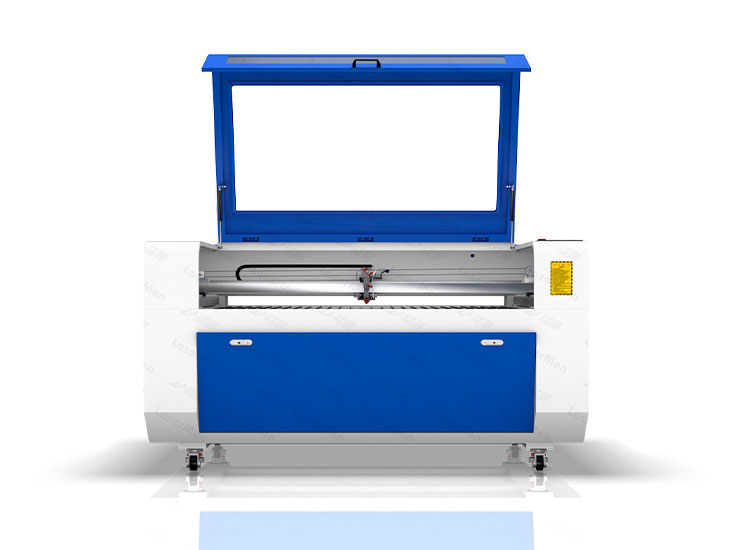

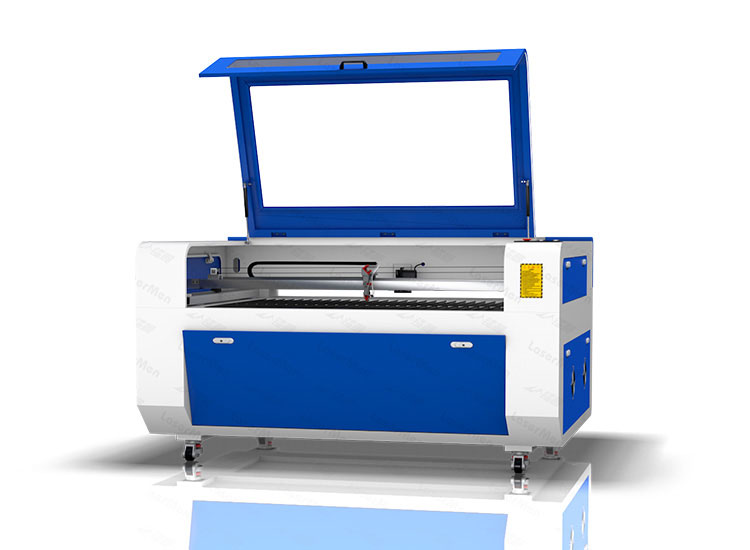

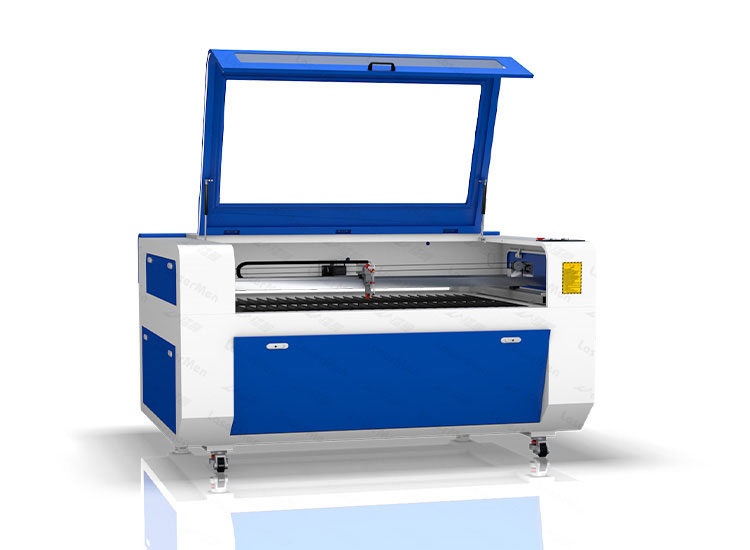

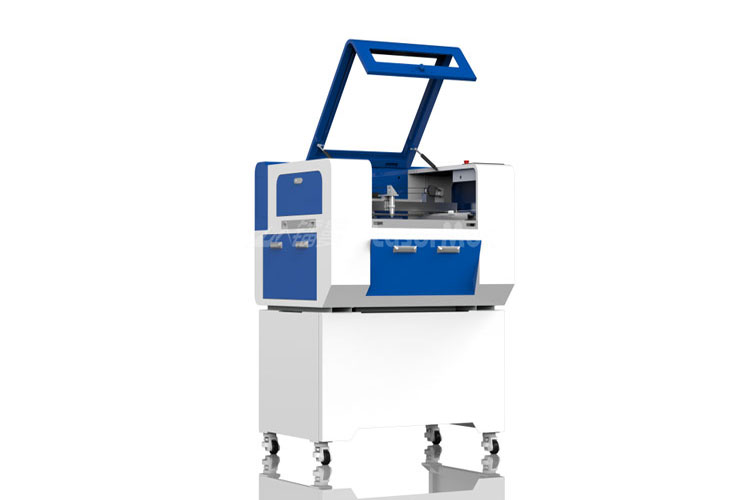

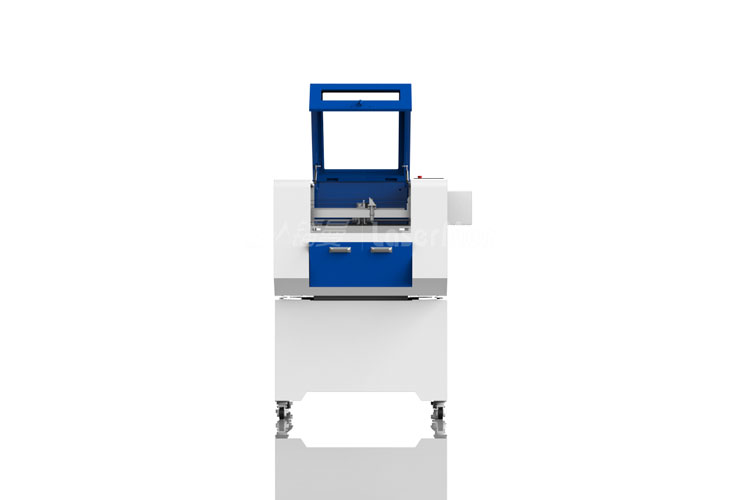

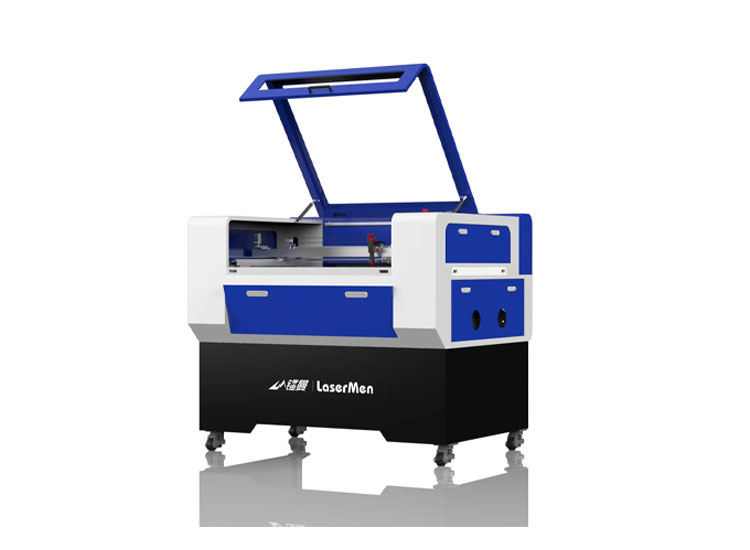

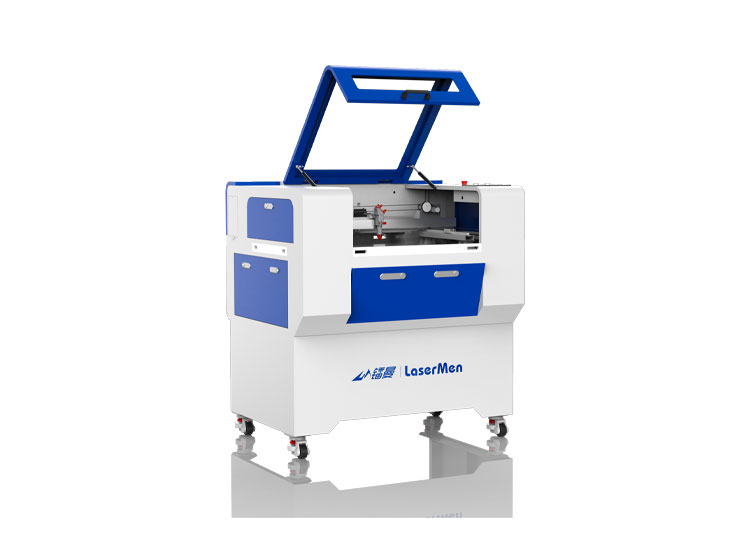

Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine
This series -2 is our hot type CO2 laser engraving cutting machines. This multifunctional CO2 laser machine is used by our customers for different industies and various non-metallic materials, such as wood acrylic MDF plywood leather plastic stone glass etc.
There are 5 sizes for your choice: 60x40cm, 90x60cm, 130x90cm, 140x90cm and 160x100cm.
Laser tube power available for LaserMen series -2 machines: 60W, 80W, 100W, 130W, 150W, 180W, 240W and 300W. 60-100W machines do both engraving and cutting. The maximum engraving speed can be upto 1200 mm/sec. Machines above 100W mainly cuts. Stronger laser power cuts thicker and faster. You may have a reference here for the machine cutting capacity:

Material	Maximum cutting thickness ( mm ）
Material	60w	80w	100w	150w	180w	240w	300w
Acrylic	8	10	15	25	25	30	30
Wood	6	8	10	18	18	20	23
MDF	4	6	8	12	13	15	15
Plywood	6	8	10	18	18	20	23
Textiles	Single layer cutting effect is best
Leather
Paper
PVC
Glass	×	×	×	×	×	×	×
Stone	×	×	×	×	×	×	×
Steel	×	×	×	×	×	×	×
And lots of other non-metal materials

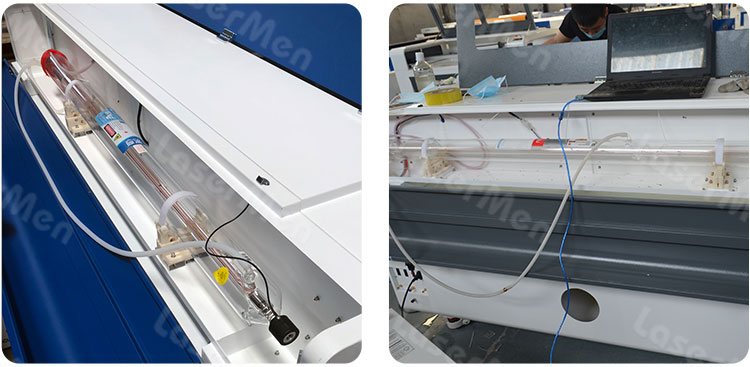

1.) High quality co2 laser tube with China top brand: Reci or Yongli co2 laser tube.

co2 laser tube of Multifunctional laser cutting engraving machine

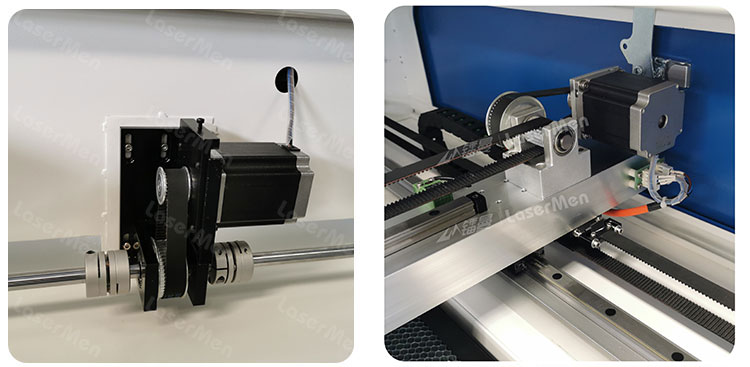

2.) Stepper motors for X and Y axis.

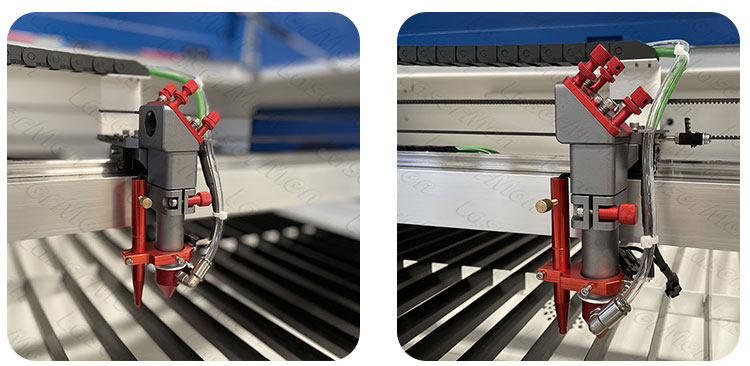

3.) High speed co2 laser head for nonmetallic cutting and engraving.

LM-2 co2 laser head for cutting and engraving nonmetal materials

4.) Taiwan linear guide rail and belt transmission.

Ruida controller with RDC6445G card and friendly operation display.

co2 laser cutting and engraving machine transmission type

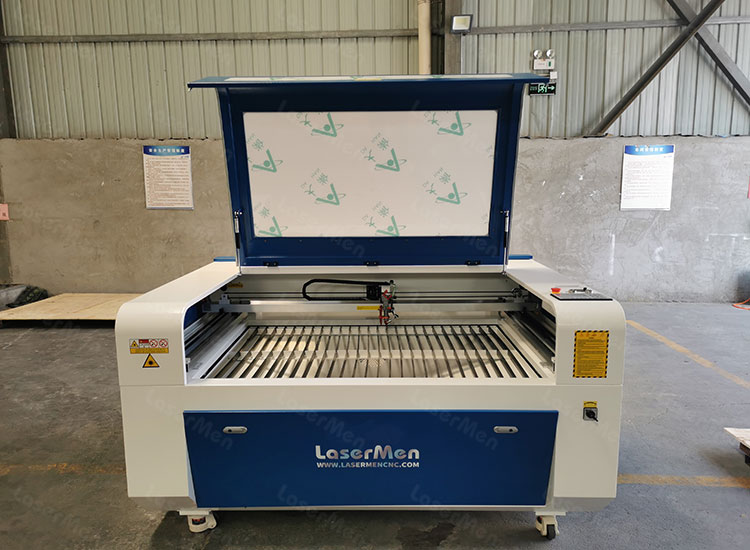

5.) Machine table: slats table as standard, and honeycomb table as optional.
Machine Working table

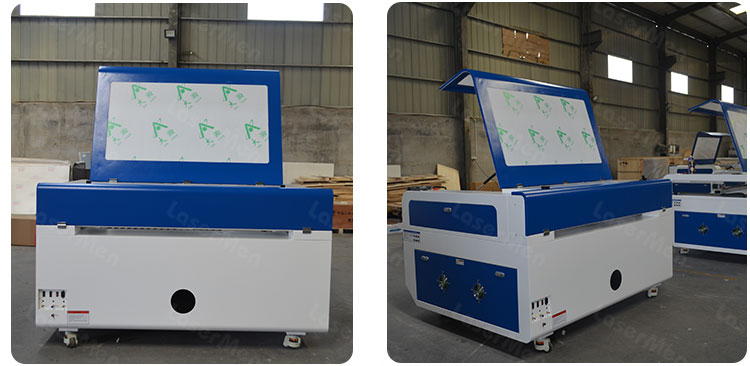

6.) Machine has a path for long material to pass through.
co2 laser engraving cutting machine

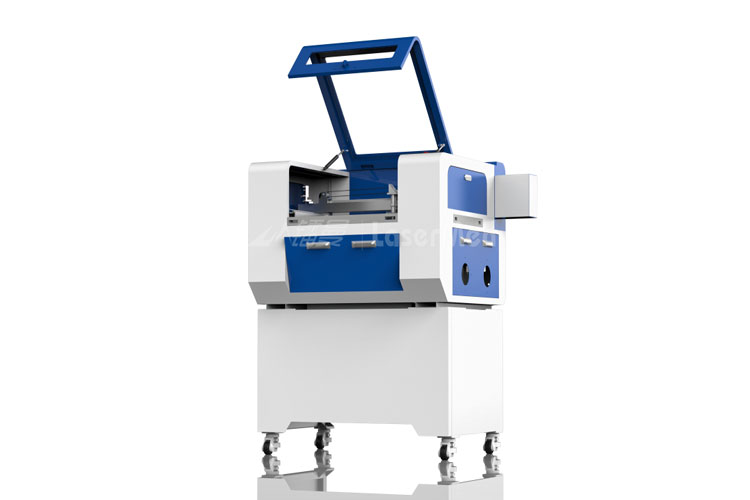

Optional: split type co2 laser cutting and engraving machine

1.) The upper and lower parts of the machine can be split.

2.) The machine is suitable for rooms with narrow doors, and machines with conventional structures cannot enter the door.
split type co2 laser cutting engraving machine

split type co2 laser cutting engraving machine

split type co2 laser cutting and engraving machine

Machine Application

Applicable Materials:
Wood products, paper, plastic, rubber, acrylic, bamboo, marble, double-color sheets, glass, wine bottles and other non-metal materials

Application Industries:
Advertising signs and boards, arts and crafts, awards and trophies, paper-cutting, architectural model , lights and lamps, printing and packaging, electronic appliances, photo frames and albums, garment leather and other industries.
