Machine features

Premium CO2 laser cutting machine for high precision non-metals cutting
China top brand CO2 glass laser tube, laser power available: 80W, 100W, 130W, 150W, 180W, 240W, 300W. The machine engraves and cuts non-metals. 80W-100W do both engraving and cutting. 130W and above mainly cuts, also engrave lines.
Machine transmission is integrated guide bar. Rail and belt are integrated. Bigger slider reduces resonance so that cutting precision is better.
High power industrial water cooling system cools the CO2 laser tube and ensure stable laser output.
RDC6445G CNC control system with RDworks laser software support files: DXF, PLT, AI, LXD, BMP, etc. Machine read files from computer, and from USB flash as well.
Precision stepper motors with ratio gear, cutting edge is more smooth.
Air assist during cutting, removes heat and combustible gases from the cutting surface.
Extractors removes fumes and dusts caused during cutting.
Based on your working requirements, we have some optional functions for your choice:
- red dot, showing position of laser dot on material.
- motorized up-down table, allowing more space for thicker or bigger items processing.
- rotary, assisting cylindrical items processing.
- auto focus, replacing manual focus which improves working efficiency.
- Solenoid valve, allowing air blowing only during cutting.
- Safety lock, stopping machine when you open the machine cover which has more safety for user.
- other functions we can customize upon request.

Technical parameters

Model	LM-6040XH	LM-9060XH	LM-1390XH	LM-1490XH	LM-1610XH
Laser type	CO2 glass laser tube, wavelength 10.6μm, water-cooled
Laser power	80W, 100W	80W, 100W, 130W, 150W	80W, 100W, 130W, 150W, 180W	80W, 100W, 130W, 150W, 180W, 240W, 300W
Working area	600x400mm	900x600mm	1300x900mm	1400x900mm	1600x1000mm
Engraving speed	0-1200mm/sec
Cutting Speed	0-500mm/sec
Repeating location	±0.01
Transmission type	integrated guide bar with rail and belt
Driving system	Stepper motor
Machine table	Blade table (alternative: honeycomb table)
Graphic format supported	.plt, .dst, .dxf, .bmp, .dwg, .ai, *.las, supporting AutoCAD and CorelDraw
Software supported	CorelDraw, AutoCAD
Control system	RuiDa RDC6445G DSP Off-line control system, laser power 0~100% adjustable
Minimum letter size	Chinese 2.0x2.0mm, English 1.0x1.0mm
Working voltage	Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)
Working condition	Temperature 0~45 Celsius; Humidity 5%~95% no condensation

CO2 LASER WOKRING CAPACITY

Material	Engrave	Cut	Material	Engrave	Cut
Wood	√	√	Pressboard	√	√
Acrylic	√	√	Rubber	√	√
Fabric	√	√	Wood Veneer	√	√
MDF	√	√	Plywood	√	√
Delrin	√	√	Plastic	√	√
Cloth	√	√	Cork	√	√
Leather	√	√	Corian	√
Glass	√		Fiberglass	√	√
Ceramic	√		Tile	√
Marble	√		Anodized Aluminum	√
Matte Board	√	√	Stainless Steel
Melamine	√	√	Brass
Paper	√	√	Titanium
Mylar	√	√	Bare Metals
Coated Metals	√		Painted Metals	√

Please check with us if your material is not in the above list.

Video

Machine details

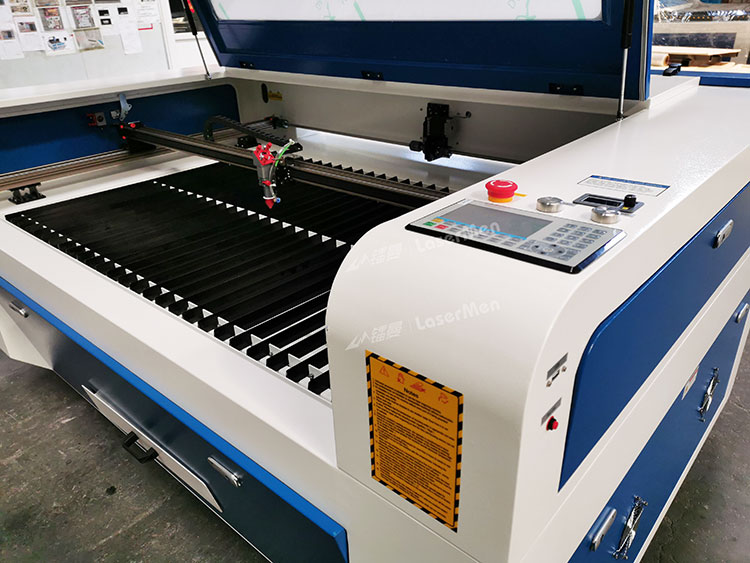

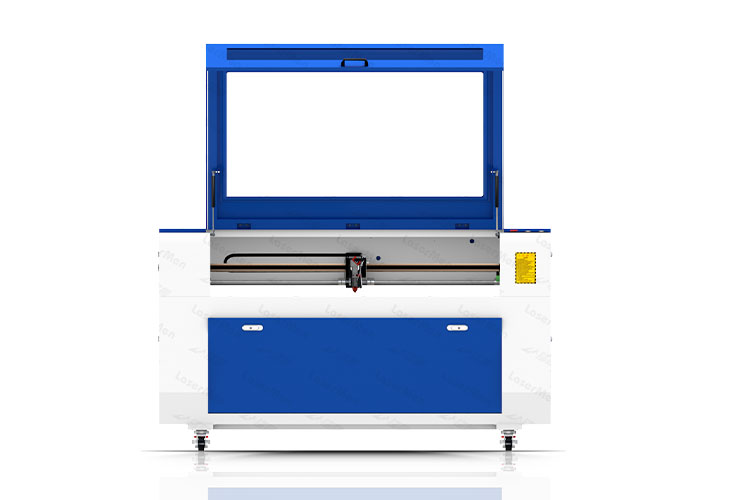

high precision co2 laser cutting engraving machine

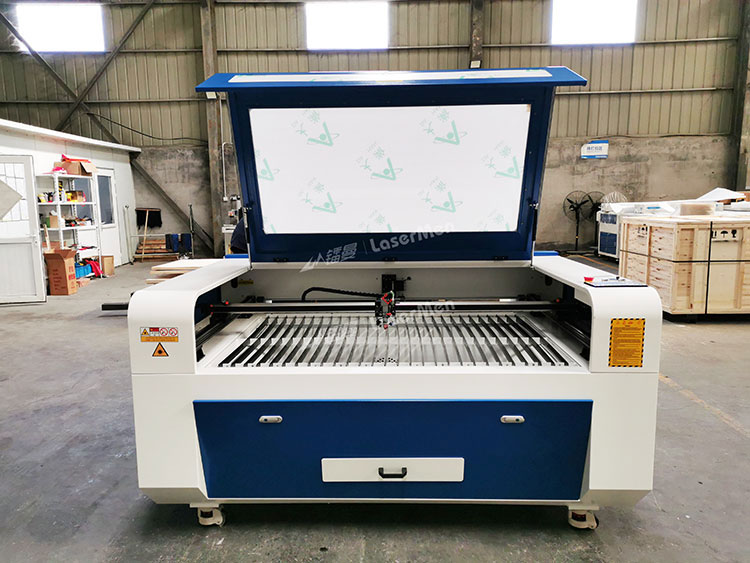

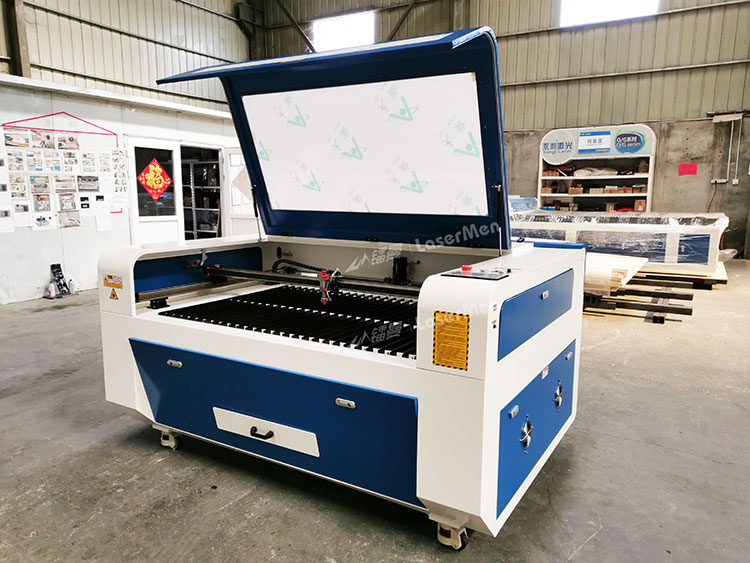

nonmetal co2 laser cutting engraving machine

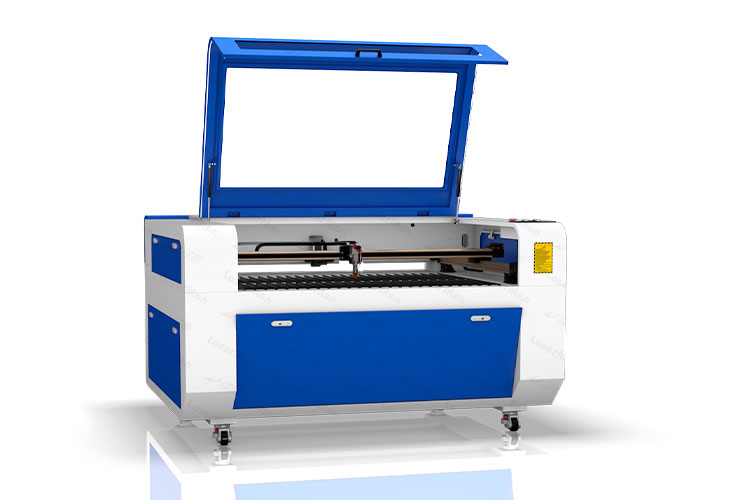

Premium CO2 laser cutting machine for high precision non-metals cutting

1.) Machine with special transmission which is integrated guide bar. Rail and belt are integrated. Bigger slider reduces resonance so that cutting precision is better.

2.) 60x40cm, 90x60cm, 130x90cm, 140x90cm and 160x100cm there 5 size can be selected.

3.) This series -XH is a precision co2 laser cutting engraving machine. It is used by our customers for different industies and various non-metallic materials, such as wood acrylic MDF plywood leather plastic stone glass etc.

4.) Laser tube power available for LaserMen series -XH machines: 80W, 100W, 130W, 150W, 180W, 240W and 300W. 80-100W machines do both engraving and cutting.

5.) The maximum engraving speed can be up to 1200 mm.

6.) Machines above 100W mainly cuts. Stronger laser power cuts thicker and faster.

You may have a reference here for the machine cutting capacity:

Materials	Engraving	Cutting	Maximum cutting thickness ( mm ）
Materials	Engraving	Cutting	80W	100W	150W	180W	240W	300W	80w, 100w can do both engraving and cutting. 130w, 150w, 180w, 240w, 300w mainly cuts.
Acrylic	√	√	10	15	25	25	30	30
Wood	√	√	8	10	18	18	20	23
MDF	√	√	6	8	12	13	15	15
Plywood	√	√	8	10	18	18	20	23
Textiles	√	√	Single layer cutting effect is best
Leather	√	√
Paper	√	√
PVC	√	√
Glass	√	×	×	×	×	×	×	×
Stone	√	×	×	×	×	×	×	×
Steel	×	×	×	×	×	×	×	×
And lots of other non-metal materials

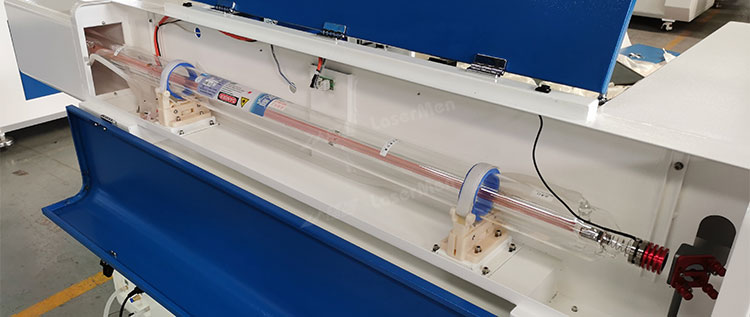

1.) China top brand Yongli or Reci co2 laser tube. Laser tube power: 80w, 100W, 130W, 150W, 180W, 240W and 300W.

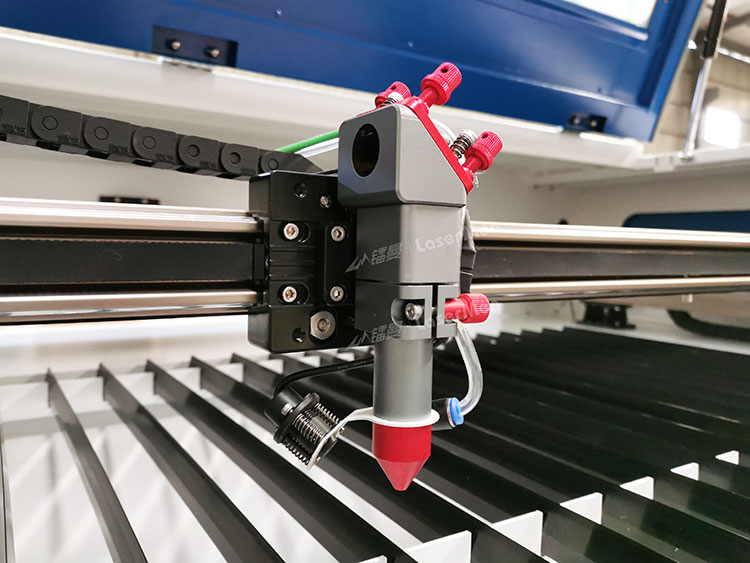

2.) high speed laser head for cutting and engraving nonmetals, double heads can be selected.

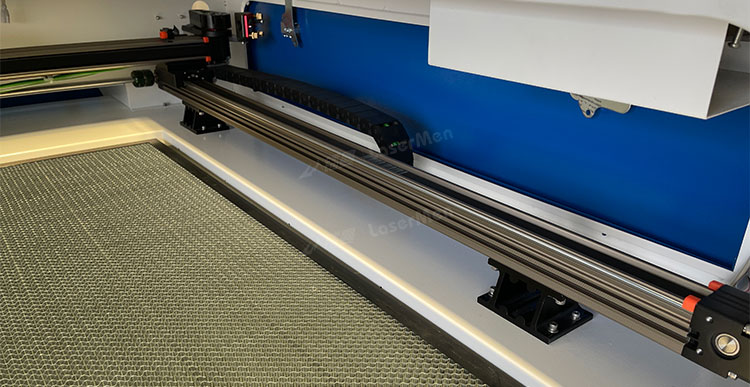

3.) Integrated compact speedy module guide system, with big sliders reducing resonance so that cutting precision is better.

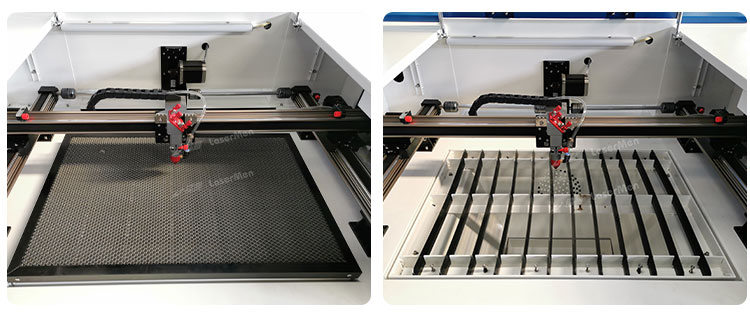

4.) High precision co2 laser cutting engraving machine working table (blade working table / honeycomb working table) 5.) Ruida control panel, easy to operate.

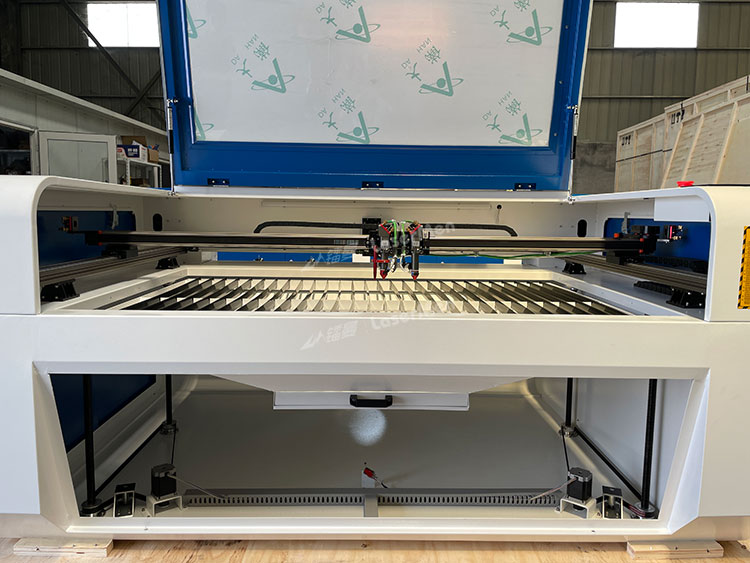

6.) High precision co2 laser cutting and engraving machine up and down working table

high precision co2 laser cutting engraving machine op and down working table

Optional: split type co2 laser cutting and engraving machine

1.) The upper and lower parts of the machine can be split.

2.) The machine is suitable for rooms with narrow doors, and machines with conventional structures cannot enter the door

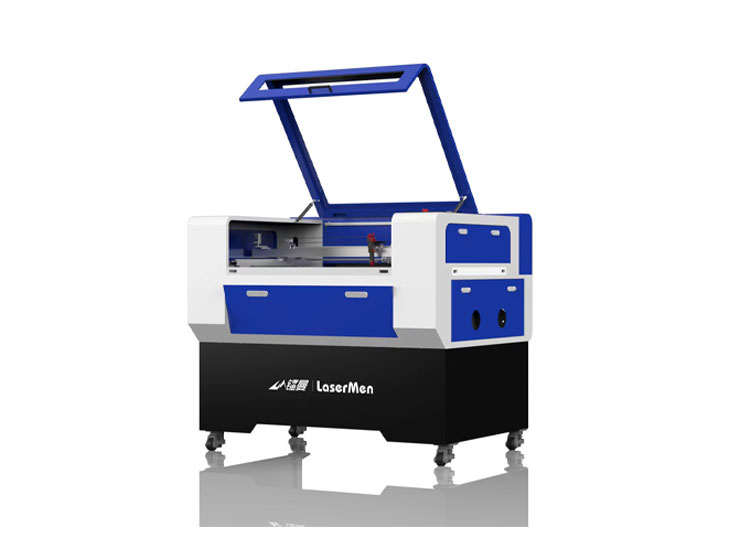

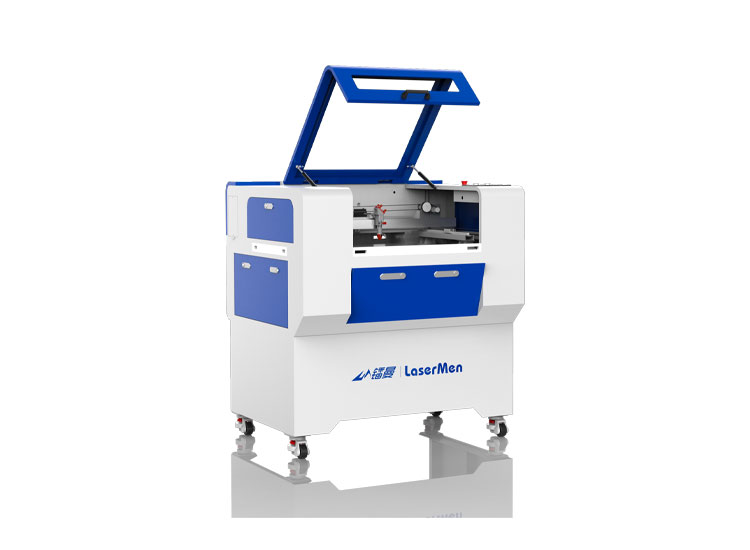

split type co2 laser cutting engraving machine

Machine Application

Applicable Materials:
Wood products, paper, plastic, rubber, acrylic, bamboo, marble, double-color sheets, glass, wine bottles and other non-metal materials
Application Industries:
Advertising signs and boards, arts and crafts, awards and trophies, paper-cutting, architectural model , lights and lamps, printing and packaging, electronic appliances, photo frames and albums, garment leather and other industries.
co2 laser cutting engraving machine samples
