Machine features
- It can work offline and can be used immediately after power on.
- Collimated laser beam output, beam size customizable (default 4mm).

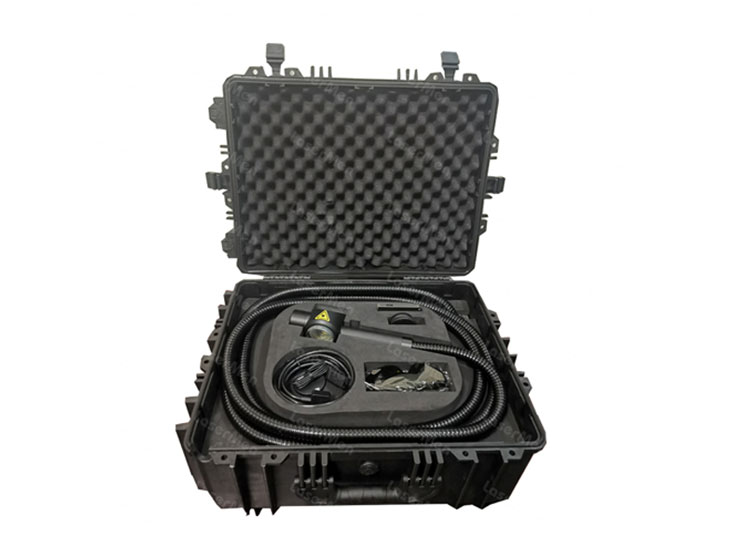

- The cleaning head is extremely lightweight, 620g only (not include delivery cable), and can be operated by hand for a long time.
- Patented red light assisted focus technology, can adjust the focus position according to different focus lenses.
- Wireless control, can realize parameter setting and emission control remotely, and update parameters at any time.

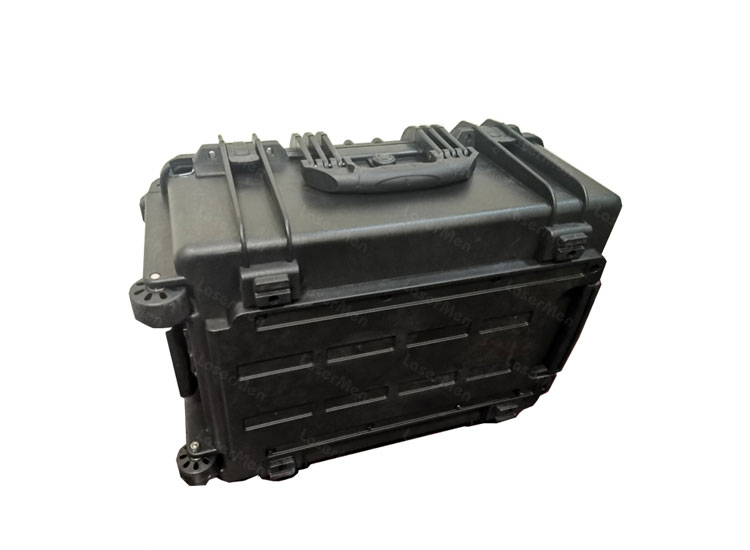

- Trolley-type chassis design, can be carried on high-speed train and flight easily with 28kg full weight.
- Super integrated injection molding chassis, cushioning design, stable structure, wearable, shockproof and drop resistance.
Technical parameters
|
Fiber laser |
|
JPT brand M7 100W laser |
|
M² |
|
<2 |
|
Delivery Cable Length |
m |
5 |
|
Average Output Power |
w |
>100 |
|
Maximum Pulse Energy |
mJ |
1.5 |
|
Pulse Frequency Range |
kHz |
1-4000 |
|
Pulse Width |
ns |
2-500 |
|
Output Power Instability |
% |
<5 |
|
Cooling Method |
|
Air Cooled |
|
Power Supply Voltage |
v |
48V |
|
Power Consumption |
w |
<400 |
|
Power supply current requirement |
A |
>8 |
|
Central Wavelength |
nm |
1064 |
|
Emission Bandwidth (FWHM)@3dB |
nm |
<15 |
|
Polarization |
|
Random |
|
Anti-Reflection Protection |
|
Yes |
|
Output Beam Diameter |
mm |
4.0±0.5，7.5±0.5（Customizable） |
|
Output Power Tuning Range |
% |
0～100 |
|
Ambient Temperature Range |
℃ |
0～40 |
|
Storage Temperature Range |
℃ |
-10～60 |
|
Dimensions |
mm |
617*469*291 |
|
Weight |
KGS |
28 |
| Item | Quantity |
| Fiber laser | 1 |
| Cleaning head | 1 |
| Laser safety Goggles | 1 |
| F-theta: f=163mm | 1 |
| F-theta: f=254mm | 1 |
| Remote control card | 1 |
| Power cord | 1 |
