Machine features
1). This machine adopts 1200 / 1500 / 2000 / 3000 watt fiber laser, which has high electro-optical conversion efficiency and long laser life;
2.) It is mainly used for metal rust removal. Double wobble laser cleaning removes rust better and faster.
3). The whole machine has low energy consumption, maintenance-free, high stability, and long-term use can save users a lot of processing costs;
4). 6 cleaning modes can be selected, can be choice according to your requirement;
5). The cleaning gun is with double wobble (X and Y) head, and the cleaning gun is hand-held, flexible and convenient, and the cleaning distance is longer. Mainly for large workpieces;
6). Double wobble, you can clean both in X and Y directions.

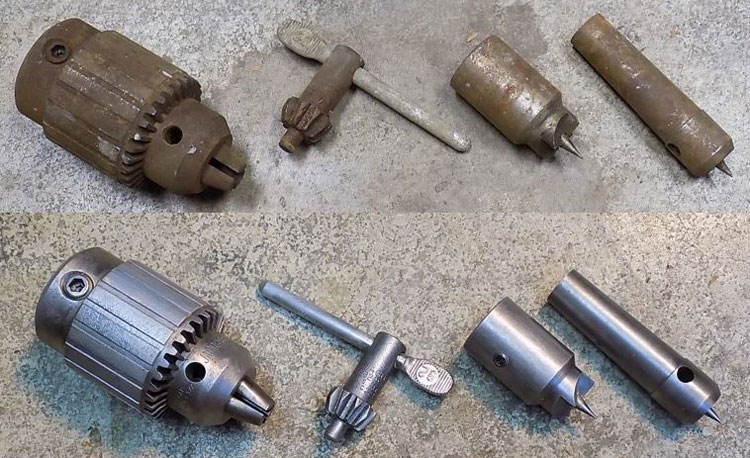

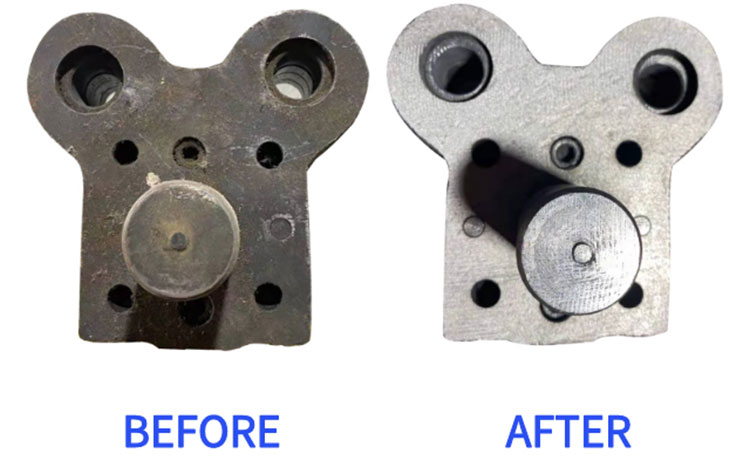

7). Laser cleaning without mechanical contact, easily and fast removing rust, oil stain, paint coating, etc. without damaging the metal material itself.
Technical parameters
| Model | LM-2000C |
| Laser type | Fiber laser, 1080nm |
| Cleaning wobble width | 150mm |
| Focal length | 600mm |
| Frequency | 20000Hz |
| Laser power | 1200w / 1500w / 2000w / 3000w |
| Cooling method | Water cooling |
| Fiber laser source | Raycus, RECI, MAX, BWT |
| Machine dimension | 104*61*122cm |
| Machine weight | Net 300kgs |
| Working voltage | 220V 50HZ/60HZ |
Video

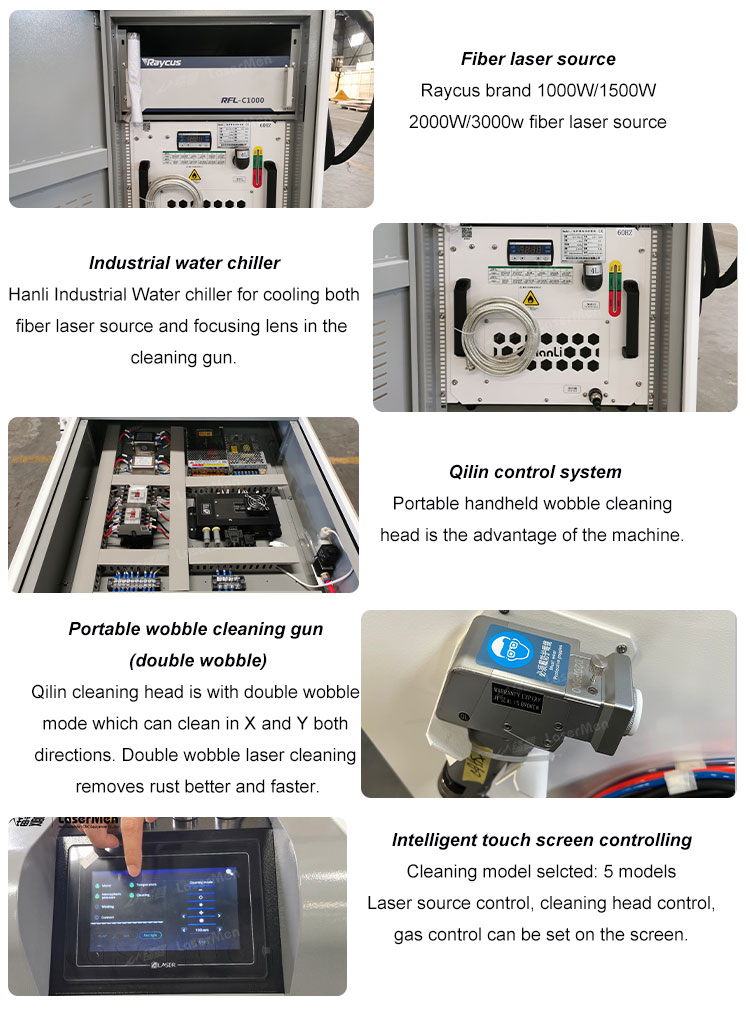

Machine details

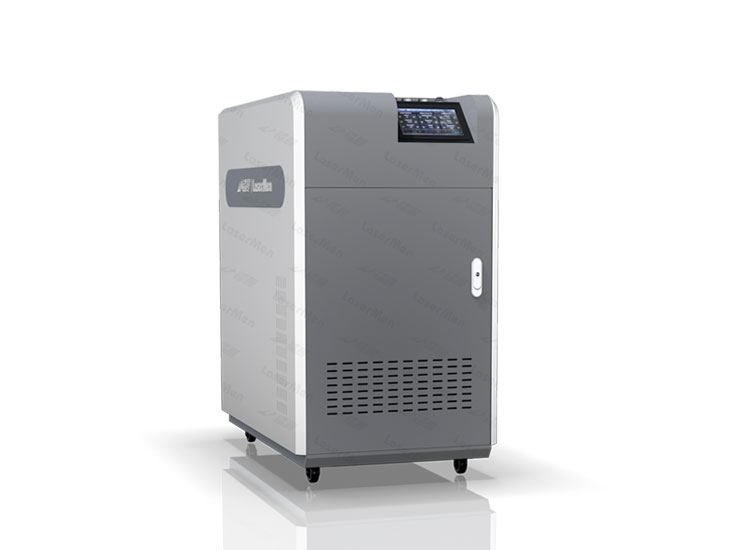

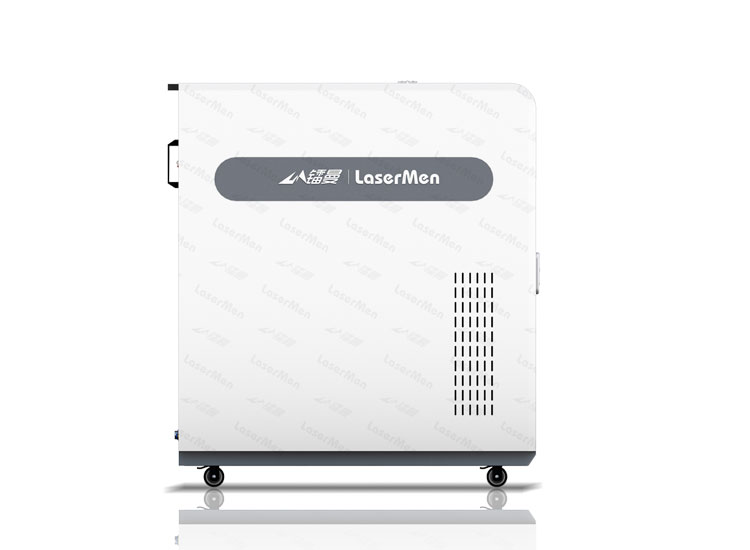

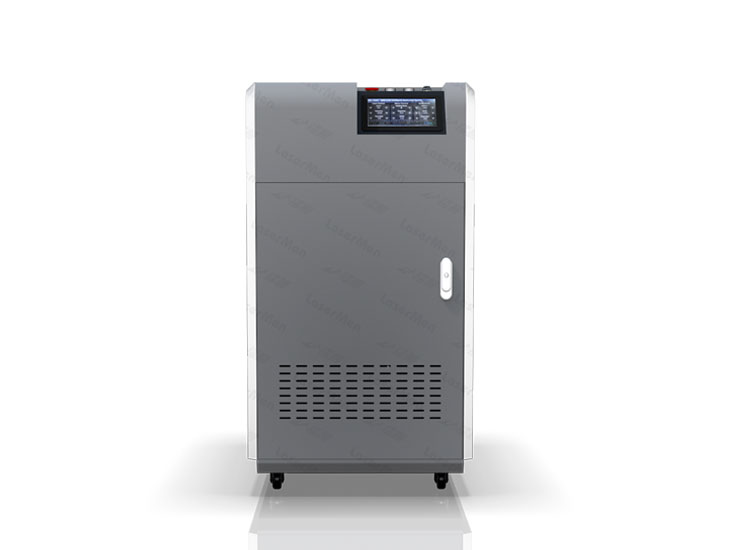

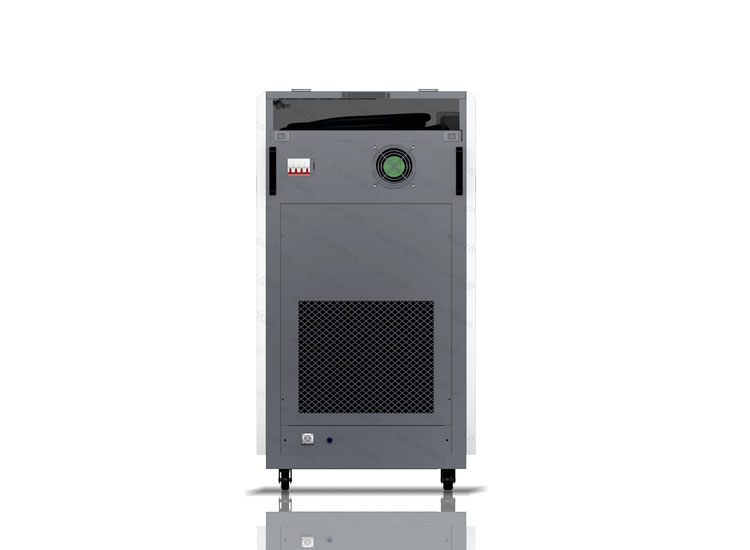

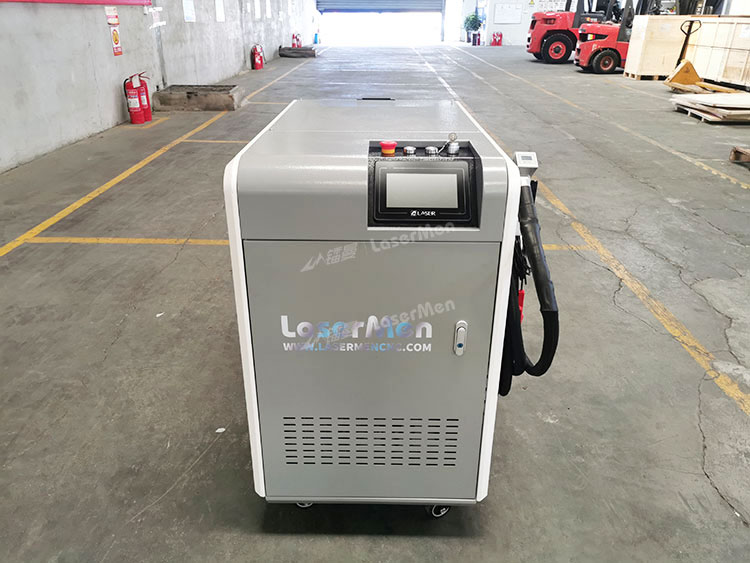

Fiber laser cleaning machine

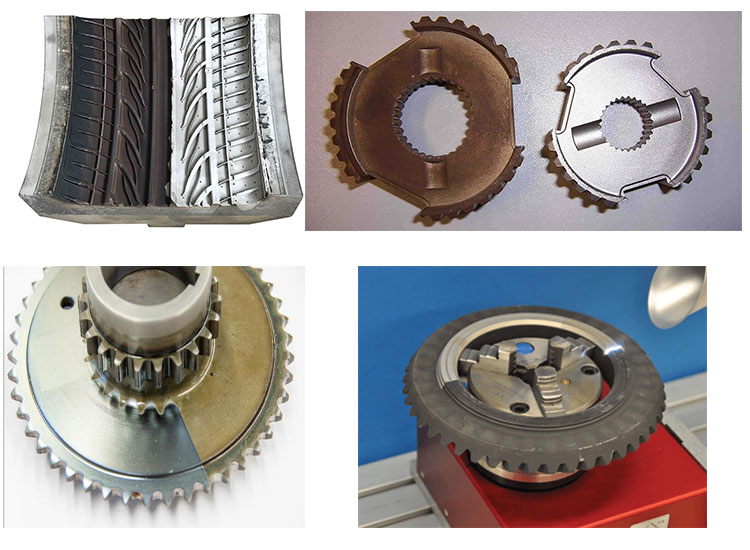

Complete paint removal, Cleaning of large molds, Weld seam pre-treatment
Pre-coating surface preparation / contaminant removal
Pre-treatment to enhance adhesive bonding, Nuclear de-contamination
Fast removal of rust/oxides, oil, grease & production residues
Industrial, military, & shipyard - production intensive de-coating
It also can be used with Fiber laser welding machine, the working effect is perfect.
Laser cleaning machine have 3 models can be selected:

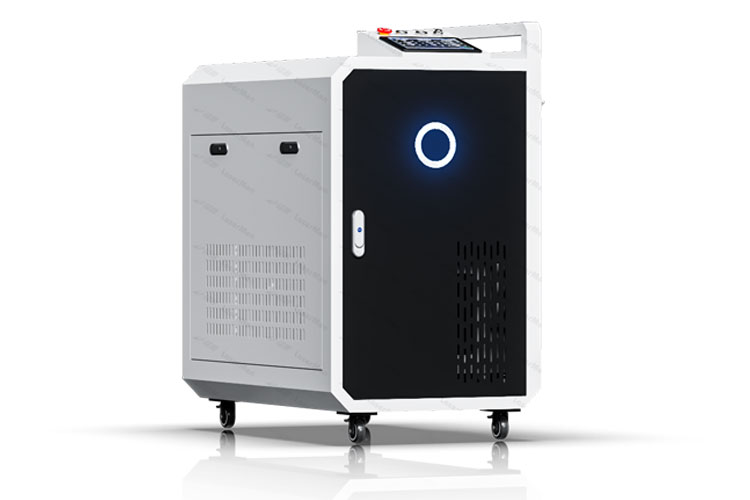

Relfar wobble laser cleaning machine

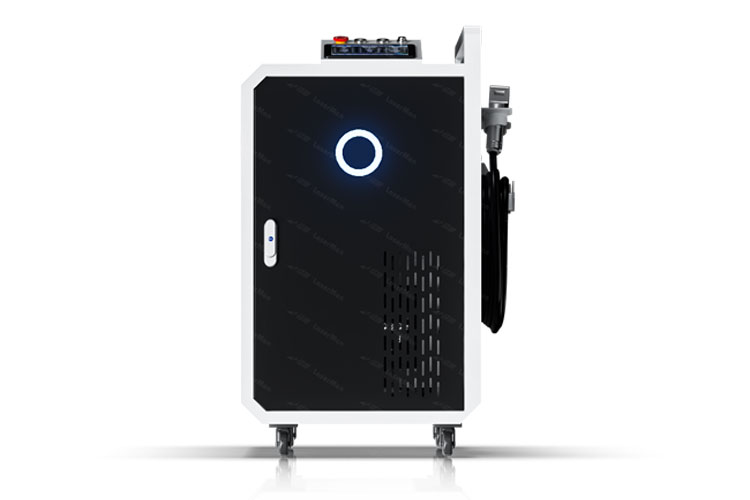

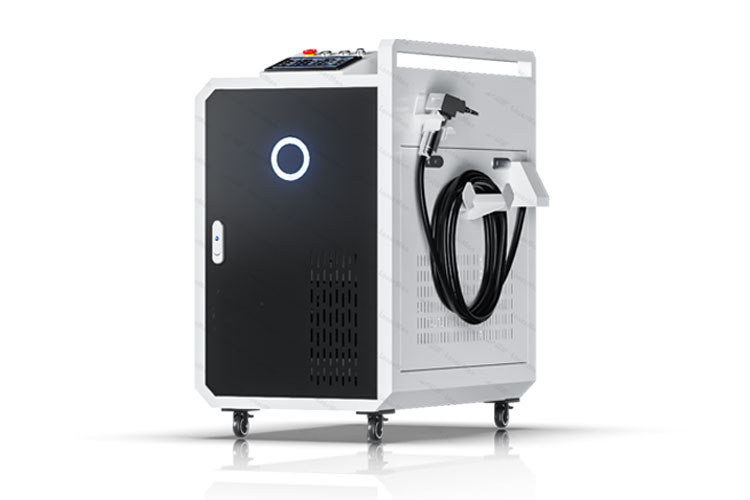

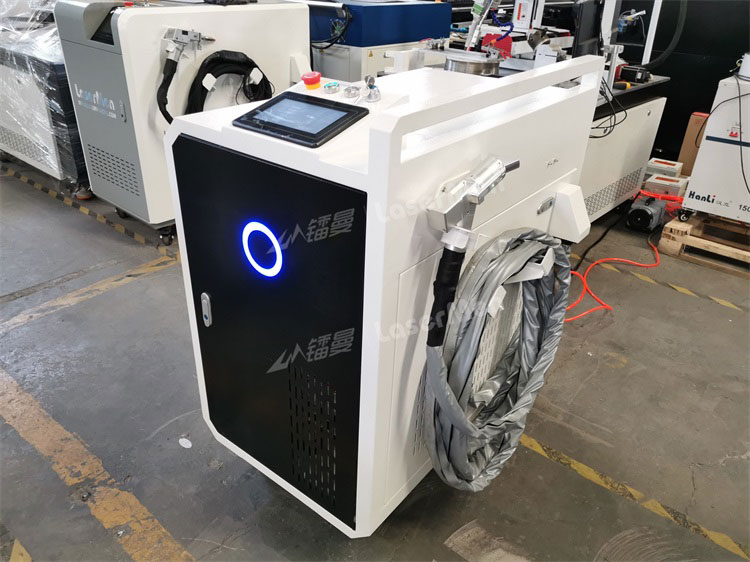

Relfar double wobble laser cleaning machine

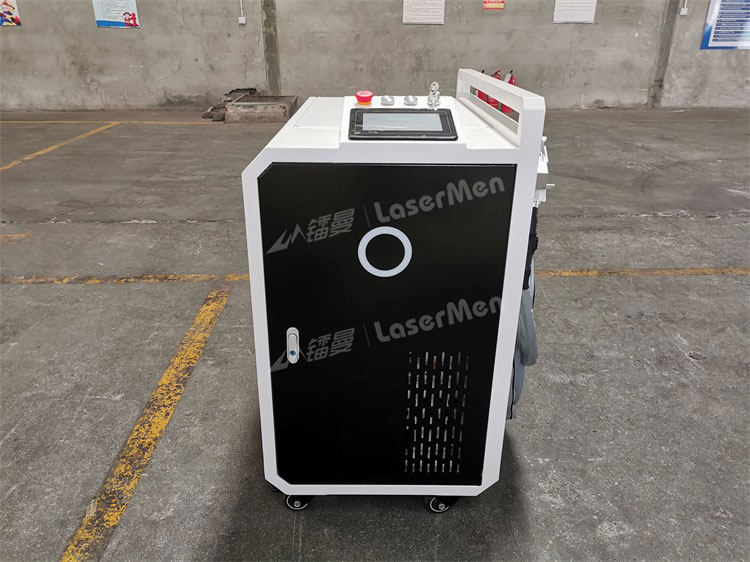

Qilin double wobble laser cleaning machine
Machine Application
1.It is widely used in the industries such as advertising signs, hardware products, doors, windows, auto parts, craft gift etc.
2.It can be used to clean various metallic materials, like carbon steel, stainless steel, titanium, aluminum, brass, etc.
